Scanstrut SC105 Pole Mount

SC105

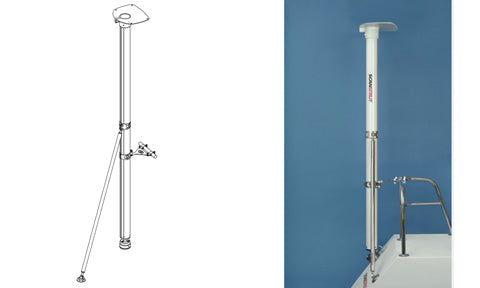

The SC105 is a 1.9m (6.4') satcom pole mount, configured to carry a compact satcom dome rather than radar, installing onto the deck or transom. Supplied as a complete kit with a 360-degree adjustable anodised aluminium base that fits sloping transoms and level decks.

Description

The Scanstrut SC105 Satcom Pole Mount raises a compact satcom dome clear of obstructions for a reliable line of sight, installing onto either the deck or transom of your boat. Unlike the radar versions in the SC100 range, the SC105 is configured to carry a small satcom antenna, and at 1.9m (6.4') it suits both deck and transom installations.

It is supplied as a complete kit with everything needed for a quick, easy fit. The 360-degree adjustable anodised aluminium base sits securely on sloping transoms or level decks, two cable channels and a cover strip conceal the wiring, and twin support modules brace the pole fore and aft and sideways. The pole is removable for winter storage.

Built from marine-grade aluminium and finished with Scanstrut's four-step marine paint system, the SC105 is engineered to keep your satcom mount looking its best year after year.

PRODUCT DETAILS

  • Pole mount raises radar above deck level for a clear scan
  • Supplied with a 3" x 1.9M pole and 1200mm adjustable deck strut
  • Adjustable base and strut allow the pole to be set vertical on any deck angle
  • Fits a 25mm (1") rail as standard, with 32mm (1.25") clamps also available
  • Marine-grade construction for permanent installation
  • SC100 pole top plate (part 17108)
  • 3" x 1.9M pole with 3" tube clamp and cover strip
  • SC100 adjustable base
  • 1200mm adjustable deck strut with strut base
  • 25mm rail standoff
  • Pole top and base fastening packs (M8 and M6 stainless steel bolts, washers, Nyloc nuts and nut covers)
  • Thread lock

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Mount typeSC100 pole mount for radar

Dimensions

Pole3" pole, 1.9M long (ø63.80mm / 2.51")
Strut length (standard)1200mm (600mm and 1800mm also available)
Radar scanner width (max)164mm / 6.4"
Top plate size204.41mm (8.05") square

Fixing

Top plate fixing holes4 x diameter 8.50mm (0.33") on 175.40mm (6.91") centres and 4 x diameter 6.50mm (0.26") on 143mm (5.63") centres
Adjustable base fixing3 x M8, 60mm (2.36") centres

Compatibility

Top plate part17108 (shared with SC106)
Rail clampTo fit 25mm (1") rail as standard; 32mm (1.25") rail clamps also available
