SD10 Drive Unit

21120001
The SD10 is a mechanical cable drive unit with built-in rudder feedback for sailboats from 25 ft to 37 ft. It delivers over 180 kg of cable thrust and 450 Nm of rudder torque, with a solenoid clutch that allows hand steering when disengaged. It partners with the NAC-2 autopilot computer and requires access to a quadrant or tiller.

Description

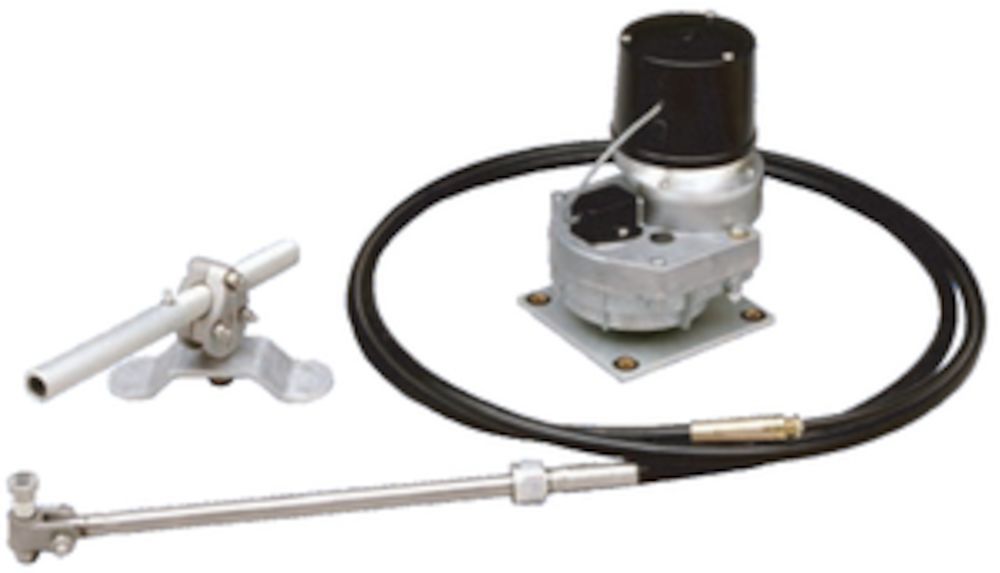

The Simrad SD10 is a mechanical sailboat drive that makes it easy and economical to add an autopilot to small and medium sailboats with access to a quadrant or tiller. The system comprises the drive unit, a 2-metre steering cable and a universal connection kit, delivering over 180 kg (400 lbs) of cable thrust and a maximum rudder torque of 450 Nm with a typical hard-over to hard-over time of 12 to 18 seconds.

The drive unit houses a drive motor and a solenoid clutch that releases to allow hand steering when the autopilot is in standby, along with a built-in adjustable thrust limiter and an integral rudder feedback device. In an emergency the helmsman can override the drive simply by turning the wheel against it, while a quick-release pin at the quadrant lets the cable be disconnected entirely.

The SD10 is rated for sailboats up to 6500 kg (14300 lbs) displacement fully laden and 11 m (37 ft) in length, and partners with the Simrad NAC-2 autopilot computer to complete the steering system.

PRODUCT DETAILS

  • Mechanical cable drive for sailboats with access to a quadrant or tiller
  • Delivers over 180 kg (400 lbs) of cable thrust, 450 Nm maximum rudder torque
  • Built-in integral rudder feedback (RFB) device
  • Electromagnetic solenoid clutch allows hand steering when disengaged
  • Adjustable thrust limiter with manual override
  • Hard-over to hard-over time of 12 to 18 seconds
  • For boats up to 6500 kg displacement and 11 m (37 ft) length
  • SD10 drive unit
  • Steering cable, 2 m (6 ft)
  • Universal connection kit

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

AC70 PCB

AC70 PCB

B&G H5000 Pilot Computer

B&G H5000 Pilot Computer

B&G, Simrad NAC-2 Autopilot Computer

B&G, Simrad NAC-2 Autopilot Computer

B&G, Simrad NAC-3 Autopilot Computer

B&G, Simrad NAC-3 Autopilot Computer

Mechanical

TypeMechanical (cable) drive with built-in rudder feedback
Peak thrust (cable)180 kg (400 lbs)
Maximum stroke305 mm (12 in)
Maximum rudder torque450 Nm (333 lb ft)
Hard-over to hard-over time12 - 18 seconds
Tiller arm radius254 mm (10 in)

Electrical

Voltage12 V DC
Peak power7 A
Average power2.5 A
Clutch circuit power0.85 A

General

Maximum boat displacement (fully laden)6500 kg (14300 lbs)
Maximum boat length11 m (37 ft)
Warranty2 years

Physical

Weight4.9 kg (10.8 lbs)

No videos available for this product.

No downloads available for this product.

What size boat is the SD10 for?
The SD10 mechanical drive is rated for sailboats up to 6500 kg (14300 lbs) displacement fully laden and 11 m (37 ft) in length, and is suited to boats from 25 ft to 37 ft.
Which autopilot computer does the SD10 work with?
The SD10 partners with the Simrad NAC-2 autopilot computer as part of a complete autopilot system, and requires access to a quadrant or tiller.
How much thrust does the SD10 produce?
The SD10 delivers over 180 kg (400 lbs) of cable thrust and a maximum rudder torque of 450 Nm, with a hard-over to hard-over time of 12 to 18 seconds.
Does the SD10 have a built-in rudder feedback?
Yes. The SD10 has an integral rudder feedback device and a solenoid clutch that releases to allow hand steering when the autopilot is in standby.
What is supplied with the SD10?
The system comprises the drive unit, a 2 m (6 ft) steering cable and a universal connection kit. It runs on 12 V DC with a peak power of 7 A.
