Simrad AP44 VRF High Capacity Pack, Precision-9, RPU-160 Pump, NAC-3

000-13562-001

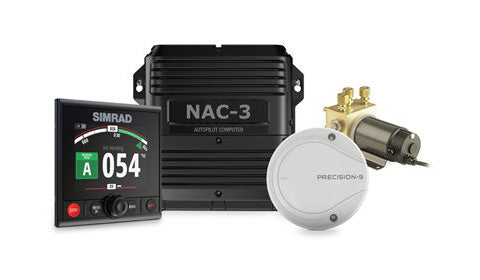

A complete high-capacity AP44 autopilot pack for boats of 10 m (35 ft) and above, comprising the AP44 controller, NAC-3 autopilot computer, Precision-9 compass and RPU-160 reversible hydraulic pump. The NAC-3 drives high-current pumps and supports Virtual Rudder Feedback, delivering Simrad Continuum steering over NMEA 2000.

Description

This high-capacity pack brings together everything needed to fit a Simrad AP44 autopilot to a larger hydraulic-steered boat. It pairs the AP44 colour controller with the NAC-3 autopilot computer, a Precision-9 heading sensor and an RPU-160 reversible hydraulic pump, making a complete system for vessels of 10 metres (35 ft) and above.

The NAC-3 computer is rated for high-current drives, operating pumps up to 30 A continuous and 50 A peak, and supports Simrad Virtual Rudder Feedback so a separate rudder feedback unit is not always required. Where a physical sensor is preferred, the system accepts the RF25 or variable-frequency RF300. Continuum steering technology delivers automated turn patterns, No Drift steering that holds course against wind and tide, and full integration with compatible Simrad displays over NMEA 2000.

PRODUCT DETAILS

  • Complete high-capacity AP44 autopilot pack for boats 10 m (35 ft) and above
  • Includes AP44 controller, NAC-3 computer, Precision-9 compass and RPU-160 pump
  • NAC-3 drives high-current pumps up to 30 A continuous / 50 A peak
  • Virtual Rudder Feedback support, or fit an RF25 / RF300 feedback unit
  • Simrad Continuum steering with automated turn patterns and No Drift
  • NMEA 2000 connectivity throughout for simple installation

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Pack contentsAP44 controller, NAC-3 autopilot computer, Precision-9 compass, RPU-160 reversible hydraulic pump
Recommended boat length10 m (35 ft) and above
Rudder feedbackVirtual Rudder Feedback (VRF), or RF25 / RF300
Warranty2 years

Electrical

Computer supply voltage12/24 V DC (NAC-3)
Computer drive outputReversible motor, max 30 A continuous / 50 A peak (NAC-3)

Connectivity

NetworkNMEA 2000 / SimNet; NMEA 0183 input (NAC-3)
What does the AP44 VRF High Capacity Pack include?
It includes the AP44 controller, the NAC-3 autopilot computer, a Precision-9 compass and an RPU-160 reversible hydraulic pump.
What size boat is this pack for?
It is a high-capacity pack for boats of 10 metres (35 ft) and above. The NAC-3 computer is rated for high-current drives up to 30 A continuous and 50 A peak.
Does this pack need a rudder feedback unit?
The NAC-3 supports Simrad Virtual Rudder Feedback, so a separate feedback unit is not always required. Where a physical sensor is preferred, it accepts the RF25 or the variable-frequency RF300.
How does the pack connect together?
The components connect over NMEA 2000 / SimNet, with the NAC-3 also offering an NMEA 0183 input. This lets the controller, computer, compass and compatible displays be wired anywhere on board.
What steering features does it offer?
Built on Simrad Continuum steering, the pack provides automated turn patterns, No Drift steering that holds course against wind and tide, and depth contour tracking.
