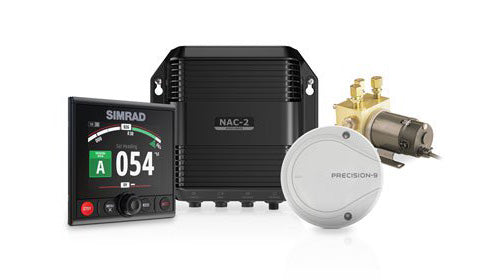

Simrad AP44 VRF Medium Capacity Pack, Precision 9, RPU80, NAC-2
Manufacturer Part Number:
000-13291-001
Manufacturer Part Number:
000-13291-001
This complete autopilot pack includes everything you need to upgrade your boat with a Simrad Continuum autopilot system. Set your heading and access advanced pilot modes with the intuitive AP44 Autopilot Controller, featuring a 4.1-inch full colour display and rotary control dial. Designed for hydraulic-steered outboard and sterndrive vessels up to ten metres (35 feet) in length, this medium-capacity pack also includes an RPU-80 hydraulic steering pump, NAC-2 autopilot computer, Precision-9 solid-state compass, plus all necessary NMEA 2000® cables and connectors.
Home or Marina Delivery
Pick up at Hamble
More Information
Key Features
- Heading, Rate Of Turn (ROT), pitch and roll output over NMEA 2000®
- Accurate and reliable solid-state sensor technology
- Heading accuracy of ±2° after calibration
- Easily adjustable mounting bracket allows bulkhead or up-mast installation
- IPX7 waterproof for external up-mast mounting on steel hulled vessels
- Simple installation with a single NMEA 2000® connection
Features
NMEA 2000® Heading & ROT Output
With NMEA 2000® output, the Simrad Precision-9 Compass provides heading, Rate Of Turn (ROT), pitch and roll information to connected equipment including autopilots, radar, multifunction displays, and other navigational systems.
Solid-State Sensor Technology
The Precision-9 Compass incorporates a sophisticated solid-state sensor array based on MEMS technology. This high-precision array measures motion on nine separate axes in order to calculate the most accurate heading and rate-of-turn information possible, avoiding many common limitations of conventional fluxgate electronic compasses and delivering heading accuracy of ±2 degrees after calibration.
Mount Almost Anywhere
An easily adjustable mounting bracket allows the Precision-9 Compass to be installed on any vessel, in almost any location. The compass may also be mounted directly to any flat surface and, with an IPX7 waterproof rating, external up-mast installation is possible on steel hulled vessels to avoid magnetic interference. Installation is further simplified by NMEA 2000® connectivity, with a single cable carrying both power and data.
Parts included
1. 1 x NAC-2 Autopilot Computer - IPX5
2. 1 x NAC-2 Power cable - 2 m
3. 1 x NAC-2 Drive cable - 2 m
4. 1 x NAC-2 Feedback cable - 2 m
5. 1 x NMEA 2000 Network cable - 0.6 m
6. 1 x Micro-C T-Joiner
7. 4 x Fixing screws
8. Warranty card & literature pack
Key Features
- Reliable autopilot performance based on Simrad Continuum steering technology
- Recommended for boats up to 10 metres (35 feet) in length
- Output of 8 amps continuous, 16 amps peak
- Clutch output (3 amps maximum)
- Compatible with low -current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
- Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats
- Supports B&G, Simrad RF25 rudder feedback units
- Plug-and-play connectors for easy installation
- NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays
Features
Continuum steering technology
Every Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues today at Simrad Yachting’s autopilot research hub in Norway. This legacy is exemplified by the Continuum algorithm: the software that drives Simrad steering technology. Continuum brings all those years of research and on-water experience to your helm, for a smart pilot you can trust to take the wheel.
Standard Output
The NAC-2 Autopilot Computer is recommended for boats up to 10 metres (35 feet) in length. It delivers standard power output of up to eight amps continuous and 16 amps peak, plus a clutch output; this is suitable to operate low-current drive pumps including the B&G, Simrad RPU80, mechanical drives such as the B&G, Simrad SD10, hydraulic linear drives such as the T0, and solenoid valves.
Virtual Rudder Feedback
Simrad Virtual Rudder Feedback (VRF) technology eliminates the need to install a separate rudder feedback unit aboard outboard and sterndrive (inboard/outboard) boats. This reduces overall autopilot system cost and complexity, and is ideal where a feedback unit is impractical due to mechanical constraints.
Rudder Feedback Units
Rudder feedback units are sensors that connect to your rudder via a mechanical linkage and continuously report actual rudder position to your autopilot computer – allowing the Simrad Continuum steering algorithm to make the best-informed steering decisions possible. These sensors are typically used on boats with inboard engines, on larger vessels, and in special applications where Virtual Rudder Feedback may not be suitable. The NAC-2 supports SimNet or NMEA 2000® connected B&G, Simrad RF25 feedback units, and resistive rudder feedback sensors.
Easy Installation
Plug-and-play connectors facilitate easy installation, minimising the wiring necessary to install your autopilot system. Industry-standard NMEA 2000® networking offers simple connectivity to heading sensors, rudder feedback units, autopilot controllers, and multifunction displays located anywhere on board.
