Discontinued
This product has been discontinued by Simrad and is no longer available to buy.
Simrad

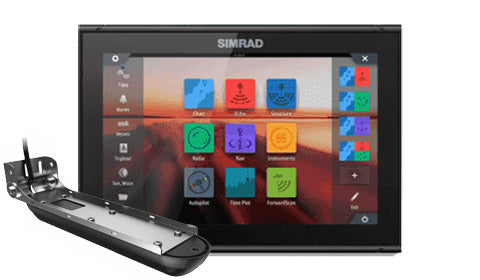

Simrad GO12 ROW 12 Inch Display 3-in-1 Transducer
000-14835-001
The Simrad GO12 XSE is a 12-inch multi-touch chartplotter, fishfinder and radar display, supplied here with the transom-mount Active Imaging 3-in-1 transducer for CHIRP, SideScan and DownScan Imaging in one unit. Its 1280 x 800 sunlight-viewable touchscreen sits above built-in GPS, Wi-Fi and NMEA 2000 networking, with support for Broadband and HALO radar.
Description
12-inch chartplotter and radar display with Active Imaging 3-in-1 transducer.
The Simrad GO12 XSE chartplotter navigation display is a perfect way to expand the capabilities of sportboats, cruisers, and smaller center consoles with plug-and-play support for Simrad Broadband Radar™ and Halo™ Pulse Compression radar systems. Behind a super-bright, multi-touch widescreen display lies a built-in GPS receiver, wireless connectivity, and industry standard NMEA 2000® networking. Connect with smartphones and tablets, control your onboard sound system, monitor engine data, and choose from an array of built-in sonar technology to cruise with confidence and find fish like a pro.
PRODUCT DETAILS
- 12-inch sunlight-viewable widescreen display (1280 x 800) with 1200-nit LED backlight
- Supplied with the Active Imaging 3-in-1 transom-mount transducer
- CHIRP, SideScan and DownScan Imaging from a single transducer
- Compatible with Broadband 3G/4G and HALO dome radar
- Built-in 10 Hz GPS receiver and Wi-Fi for app control
- NMEA 2000 connectivity for engines, sensors and autopilot
- Simple, tablet-style multi-touch operation
- GO12 XSE display unit
- Active Imaging 3-in-1 transom-mount transducer
- Bracket and knobs
- Sun cover
- Power cable
- Dash mount kit
- Documentation
No exploded diagram available for this product.
No compatible products found.
Display
| Screen Size | 12" widescreen |
| Resolution | 1280 x 800 |
| Backlight | LED, white |
| Brightness | 1200 nits |
| Viewing Angles | 80° top/bottom, 80° left/right |
| Touchscreen | Multi-touch |
General
| Sonar Support | Integrated CHIRP, DownScan and ForwardScan |
| Radar Compatibility | Broadband 3G/4G and HALO dome radar |
| Cartography | C-MAP and Navionics compatible |
| Networking | Access to chart and echosounder sources from networked devices |
| Warranty | 2 years |
Physical
| Dimensions (W x H x D) | 310 x 219 x 82.7 mm (no bracket) |
| Weight | 2.242 kg |
| Mounting | Bracket or panel mount |
Connectivity
| NMEA 2000 | 1 x Micro-C port (1 LEN) |
| Ethernet | 1 x 5-pin yellow connector (radar, chart and echosounder sources) |
| Wi-Fi | Built-in |
| Bluetooth | Built-in |
| Sonar Connector | Single 9-pin XSonic |
| Card Reader | 2 x microSD (max 32GB each) |
GPS
| Receiver | Internal, 32-channel |
| Update Rate | 10 Hz |
| Corrections | WAAS, EGNOS, MSAS, GLONASS |
| Position Accuracy | 3 m horizontal |
Electrical
| Supply Voltage | 10 to 17 V DC |
| Power Consumption (max) | 30 W |
| Power Consumption (typical) | 24 W |
| Recommended Fuse | 3 A |
Environment
| Waterproof Rating | IPX6 and IPX7 |
| Operating Temperature | -15°C to +55°C |
| Storage Temperature | -20°C to +60°C |
Sonar
| Transducer | Active Imaging 3-in-1 (transom mount) |
| CHIRP Sonar | 83/200 kHz (Medium/High CHIRP) |
| SideScan | 455/800 kHz |
| DownScan Imaging | 455/800 kHz |
| Connector | 9-pin XSonic |
No downloads available for this product.
What size is the Simrad GO12 screen?
The GO12 XSE has a 12-inch widescreen colour display. It is a super-bright multi-touch screen designed for clear viewing in direct sunlight, with generous space for split-screen chart, sonar and radar views.
Does the GO12 have built-in GPS and Wi-Fi?
Yes. The GO12 XSE has an internal GPS receiver and built-in Wi-Fi, which lets you download chart updates and view the display on a phone or tablet, and control the unit from a tablet.
What sonar does the GO12 support and which transducer is included?
The GO12 XSE has a built-in CHIRP sounder with DownScan Imaging and connects a single 9-pin XSonic transducer. This package includes the Active Imaging 3-in-1 transom-mount transducer (SideScan, DownScan and CHIRP).
Can I add radar to the GO12?
Yes. The GO12 XSE has a radar (Ethernet) connection and supports Simrad Broadband 3G and 4G radar as well as HALO dome radar. Radar is sold separately for this version.
How does the GO12 connect to other equipment, and what is its power and waterproof rating?
The GO12 uses NMEA 2000 networking for engine data, sensors, autopilot and FUSION audio, with an Ethernet port that carries radar, chart and echosounder sources. It runs on a 10 to 17 V DC supply.
What warranty does the GO12 come with?
The Simrad GO12 XSE is supplied with a 2-year warranty.
