Simrad GO12 ROW 12 Inch Display No Transducer Simrad GO12 ROW 12 Inch Display No Transducer
Simrad GO12 ROW 12 Inch Display No Transducer
Discontinued

This product has been discontinued by Simrad and is no longer available to buy.

Not sure what replaces it? Talk to us.

Contact HME

or call us on +442380455129

Simrad

Simrad GO12 ROW 12 Inch Display No Transducer

000-14442-001

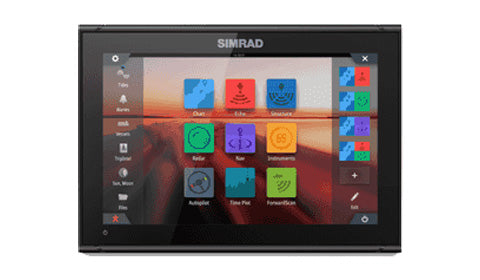

The Simrad GO12 XSE is a 12-inch multi-touch chartplotter, fishfinder and radar display for sportboats, cruisers and centre-consoles. Its 1280 x 800 sunlight-viewable touchscreen sits above built-in GPS, Wi-Fi and NMEA 2000 networking. Integrated CHIRP, DownScan and ForwardScan sonar is ready when you add a compatible transducer, and the unit supports Broadband and HALO radar.

Description

12-inch chartplotter and radar display with global basemap.

The Simrad GO12 XSE chartplotter navigation display is a perfect way to expand the capabilities of sportboats, cruisers, and smaller center consoles with plug-and-play support for Simrad Broadband Radar™ and Halo™ Pulse Compression radar systems. Behind a super-bright, multi-touch widescreen display lies a built-in GPS receiver, wireless connectivity, and industry standard NMEA 2000® networking. Connect with smartphones and tablets, control your onboard sound system, monitor engine data, and choose from an array of built-in sonar technology to cruise with confidence and find fish like a pro.

PRODUCT DETAILS

  • 12-inch sunlight-viewable widescreen display (1280 x 800) with 1200-nit LED backlight
  • Simple, tablet-style multi-touch operation
  • Built-in 10 Hz GPS receiver for accurate positioning
  • Integrated CHIRP, DownScan and ForwardScan sonar (add a compatible transducer)
  • Compatible with Broadband 3G/4G and HALO dome radar
  • Access to chart and echosounder sources from networked devices
  • NMEA 2000 connectivity for engines, sensors and autopilot
  • Supplied without a transducer
  • GO12 XSE display unit
  • Bracket and knobs
  • Sun cover
  • Power cable
  • Dash mount kit
  • Documentation

No exploded diagram available for this product.

B&G, Lowrance, Simrad TotalScan Skimmer Transducer

B&G, Lowrance, Simrad TotalScan Skimmer Transducer

Lowrance B&G Simrad Active Imaging 3-IN-1 Transducer

Lowrance B&G Simrad Active Imaging 3-IN-1 Transducer

Simrad GO12 Suncover

Simrad GO12 Suncover

Simrad GO12 / Vulcan 12R Bracket Accessory

Simrad GO12 / Vulcan 12R Bracket Accessory

No compatible products found.

GPS

ReceiverInternal, 32-channel
Update Rate10 Hz
CorrectionsWAAS, EGNOS, MSAS, GLONASS
Position Accuracy3 m horizontal

Display

Screen Size12" widescreen
Resolution1280 x 800
BacklightLED, white
Brightness1200 nits
Viewing Angles80° top/bottom, 80° left/right
TouchscreenMulti-touch

Environment

Waterproof RatingIPX6 and IPX7
Operating Temperature-15°C to +55°C
Storage Temperature-20°C to +60°C

Connectivity

NMEA 20001 x Micro-C port (1 LEN)
Ethernet1 x 5-pin yellow connector (radar, chart and echosounder sources)
Wi-FiBuilt-in
BluetoothBuilt-in
Sonar ConnectorSingle 9-pin XSonic
Card Reader2 x microSD (max 32GB each)

Electrical

Supply Voltage10 to 17 V DC
Power Consumption (max)30 W
Power Consumption (typical)24 W
Recommended Fuse3 A

General

Sonar SupportIntegrated CHIRP, DownScan and ForwardScan
Radar CompatibilityBroadband 3G/4G and HALO dome radar
CartographyC-MAP and Navionics compatible
NetworkingAccess to chart and echosounder sources from networked devices
Warranty2 years

Physical

Dimensions (W x H x D)310 x 219 x 82.7 mm (no bracket)
Weight2.242 kg
MountingBracket or panel mount

No downloads available for this product.

What size is the Simrad GO12 screen?
The GO12 XSE has a 12-inch widescreen colour display. It is a super-bright multi-touch screen designed for clear viewing in direct sunlight, with generous space for split-screen chart, sonar and radar views.
Does the GO12 have built-in GPS and Wi-Fi?
Yes. The GO12 XSE has an internal GPS receiver and built-in Wi-Fi, which lets you download chart updates and view the display on a phone or tablet, and control the unit from a tablet.
What sonar does the GO12 support and which transducer is included?
The GO12 XSE has a built-in CHIRP sounder with DownScan Imaging and connects a single 9-pin XSonic transducer. This version is supplied without a transducer, so you can pair it with the XSonic transducer of your choice.
Can I add radar to the GO12?
Yes. The GO12 XSE has a radar (Ethernet) connection and supports Simrad Broadband 3G and 4G radar as well as HALO dome radar. Radar is sold separately for this version.
How does the GO12 connect to other equipment, and what is its power and waterproof rating?
The GO12 uses NMEA 2000 networking for engine data, sensors, autopilot and FUSION audio, with an Ethernet port that carries radar, chart and echosounder sources. It runs on a 10 to 17 V DC supply.
What warranty does the GO12 come with?
The Simrad GO12 XSE is supplied with a 2-year warranty.
