This product has been discontinued by Simrad and is no longer available to buy.
Simrad

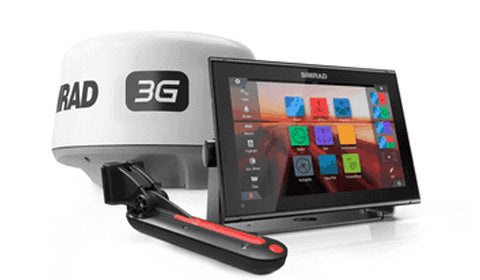

Simrad GO12 XSE 12 Inch Chartplotter 3G Radar TotalScan ROW
000-14454-001
This Simrad GO12 XSE bundle pairs the 12-inch multi-touch chartplotter with a Broadband 3G radar and the transom-mount TotalScan transducer. CHIRP sonar plus StructureScan and DownScan Imaging come from a single transducer, while the 3G dome adds collision avoidance and fishfinding range. Built-in GPS, Wi-Fi and NMEA 2000 complete a full navigation package.
Description
12-inch chartplotter and radar display with Broadband 3G™ radar and TotalScan™ transducer.
The Simrad GO12 XSE chartplotter navigation display is a perfect way to expand the capabilities of sportboats, cruisers, and smaller center consoles with plug-and-play support for Simrad Broadband Radar™ and Halo™ Pulse Compression radar systems. Behind a super-bright, multi-touch widescreen display lies a built-in GPS receiver, wireless connectivity, and industry standard NMEA 2000® networking. Connect with smartphones and tablets, control your onboard sound system, monitor engine data, and choose from an array of built-in sonar technology to cruise with confidence and find fish like a pro.
PRODUCT DETAILS
- 12-inch sunlight-viewable widescreen display (1280 x 800) with 1200-nit LED backlight
- Complete bundle: GO12 XSE, Broadband 3G radar and TotalScan transducer
- CHIRP, StructureScan and DownScan Imaging from a single transducer
- Broadband 3G radar for collision avoidance and target detection
- Built-in 10 Hz GPS receiver and Wi-Fi for app control
- NMEA 2000 connectivity for engines, sensors and autopilot
- Simple, tablet-style multi-touch operation
- GO12 XSE display unit
- Broadband 3G radar dome
- TotalScan Skimmer transom-mount transducer
- Bracket and knobs
- Sun cover
- Power and radar cables
- Documentation
No exploded diagram available for this product.
No compatible products found.
GPS
| Receiver | Internal, 32-channel |
| Update Rate | 10 Hz |
| Corrections | WAAS, EGNOS, MSAS, GLONASS |
| Position Accuracy | 3 m horizontal |
Connectivity
| NMEA 2000 | 1 x Micro-C port (1 LEN) |
| Ethernet | 1 x 5-pin yellow connector (radar, chart and echosounder sources) |
| Wi-Fi | Built-in |
| Bluetooth | Built-in |
| Sonar Connector | Single 9-pin XSonic |
| Card Reader | 2 x microSD (max 32GB each) |
Environment
| Waterproof Rating | IPX6 and IPX7 |
| Operating Temperature | -15°C to +55°C |
| Storage Temperature | -20°C to +60°C |
Electrical
| Supply Voltage | 10 to 17 V DC |
| Power Consumption (max) | 30 W |
| Power Consumption (typical) | 24 W |
| Recommended Fuse | 3 A |
General
| Sonar Support | Integrated CHIRP, DownScan and ForwardScan |
| Radar Compatibility | Broadband 3G/4G and HALO dome radar |
| Cartography | C-MAP and Navionics compatible |
| Networking | Access to chart and echosounder sources from networked devices |
| Warranty | 2 years |
Physical
| Dimensions (W x H x D) | 310 x 219 x 82.7 mm (no bracket) |
| Weight | 2.242 kg |
| Mounting | Bracket or panel mount |
Display
| Screen Size | 12" widescreen |
| Resolution | 1280 x 800 |
| Backlight | LED, white |
| Brightness | 1200 nits |
| Viewing Angles | 80° top/bottom, 80° left/right |
| Touchscreen | Multi-touch |
Sonar
| Transducer | TotalScan Skimmer (transom mount) |
| CHIRP Sonar | 83/200 kHz (Medium/High CHIRP) |
| StructureScan / DownScan | 455/800 kHz |
| SideScan | 455/800 kHz |
| Connector | 9-pin XSonic |
Radar Scanner
| Interface | RI10/RI11 |
| Technology | FMCW |
| ARRAY SIZE (INCH/FEET) | 20" |
| Max Range (NM) | 24 |
| Rotation (RPM) | 24/36 |
| POWER (W) | 0.165 |
What size is the Simrad GO12 screen?
The GO12 XSE has a 12-inch widescreen colour display. It is a super-bright multi-touch screen designed for clear viewing in direct sunlight, with generous space for split-screen chart, sonar and radar views.
Does the GO12 have built-in GPS and Wi-Fi?
Yes. The GO12 XSE has an internal GPS receiver and built-in Wi-Fi, which lets you download chart updates and view the display on a phone or tablet, and control the unit from a tablet.
What sonar does the GO12 support and which transducer is included?
The GO12 XSE has a built-in CHIRP sounder with DownScan Imaging and connects a single 9-pin XSonic transducer. This package includes the TotalScan transom-mount transducer for medium/high CHIRP sonar with StructureScan HD and DownScan Imaging.
Can I add radar to the GO12?
Yes. The GO12 XSE has a radar (Ethernet) connection and supports Simrad Broadband 3G and 4G radar as well as HALO dome radar. This package includes a Broadband 3G radar dome.
How does the GO12 connect to other equipment, and what is its power and waterproof rating?
The GO12 uses NMEA 2000 networking for engine data, sensors, autopilot and FUSION audio, with an Ethernet port that carries radar, chart and echosounder sources. It runs on a 10 to 17 V DC supply.
What warranty does the GO12 come with?
The Simrad GO12 XSE is supplied with a 2-year warranty.
