Simrad GO5 XSE EMEA Navionics Plus Card

000-12451-003

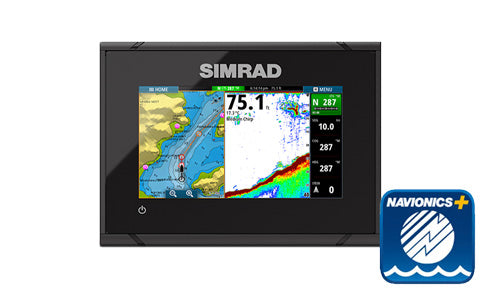

The Simrad GO5 XSE is a 5-inch multi-touch chartplotter and fishfinder for compact dayboats, sportboats and centre-consoles, supplied here with a Navionics+ chart card for EMEA. A built-in GPS receiver, Wi-Fi and NMEA 2000 networking pair with a sunlight-viewable 1200-nit display. Integrated CHIRP and DownScan Imaging sonar is ready when you add a compatible transducer.

Description

Get more from every day on the water with the Simrad GO5 XSE, a perfect fit for compact sportboats and dayboats. Behind its super-bright touchscreen lies a chartplotter with built-in GPS receiver, and Wi-Fi access to the latest charts and updates. Control your onboard sound system, monitor engine data and more over NMEA 2000®, and choose from an array of built-in sonar technologies: cruise with confidence using ForwardScan™ forward-looking sonar, or find fish like a pro with Broadband Sounder™ CHIRP sonar plus StructureScan® HD SideScan and DownScan Imaging™. Includes Navionics+ charts for Europe, Middle East and Africa, No Transducer.

PRODUCT DETAILS

  • 5-inch sunlight-viewable widescreen display with 1200-nit LED backlight
  • Supplied with a Navionics+ chart card (EMEA coverage)
  • Simple, tablet-style multi-touch operation
  • Built-in 10 Hz GPS receiver for accurate positioning
  • Integrated CHIRP and DownScan Imaging sonar (add a compatible transducer)
  • Built-in Wi-Fi for app control, software updates and chart downloads
  • NMEA 2000 connectivity for engines, sensors and autopilot
  • GO5 XSE display unit
  • Navionics+ chart card (EMEA)
  • Bracket and knobs
  • Sun cover
  • Power cable
  • Mounting hardware
  • Documentation

No exploded diagram available for this product.

B&G, Lowrance, Simrad TotalScan Skimmer Transducer

B&G, Lowrance, Simrad TotalScan Skimmer Transducer

Lowrance B&G Simrad Active Imaging 3-IN-1 Transducer

Lowrance B&G Simrad Active Imaging 3-IN-1 Transducer

Simrad GO5 Suncover

Simrad GO5 Suncover

No compatible products found.

GPS

ReceiverInternal, 32-channel
Update Rate10 Hz
CorrectionsWAAS, EGNOS, MSAS, GLONASS

Environment

Waterproof RatingIPX7
Operating Temperature-15°C to +55°C
Storage Temperature-20°C to +60°C

General

Sonar SupportIntegrated CHIRP and DownScan Imaging
CartographyC-MAP and Navionics compatible
Warranty2 years

Electrical

Supply Voltage10 to 17 V DC
Power ConsumptionApprox. 0.9 A at 13.5 V
Recommended Fuse3 A

Connectivity

NMEA 20001 x Micro-C port
Wi-FiBuilt-in
BluetoothBuilt-in
Sonar ConnectorSingle 9-pin XSonic
Card Reader1 x microSD (max 32GB)

Display

Screen Size5" widescreen
Display TypeWVGA colour TFT LCD
Resolution800 x 480
BacklightLED, white
Brightness1200 nits
TouchscreenMulti-touch

Physical

Dimensions (W x H x D)152 x 120 x 57.9 mm (no bracket)
Weight0.54 kg
MountingBracket or panel mount
What size is the Simrad GO5 screen?
The GO5 XSE has a 5-inch widescreen colour display with WVGA 800 x 480 resolution. It is a multi-touch screen with a bright 1200-nit backlight for clear viewing in direct sunlight.
Does the GO5 have built-in GPS and Wi-Fi?
Yes. The GO5 XSE has an internal GPS receiver for position and a built-in Wi-Fi connection, which lets you download chart updates and view the display on a phone or tablet.
What sonar does the GO5 support and which transducer is included?
The GO5 XSE has a built-in CHIRP sounder with DownScan Imaging and connects a single 9-pin XSonic transducer. This version is supplied without a transducer, so you can pair it with the XSonic transducer of your choice.
Can I connect radar to the GO5?
No. Unlike the larger GO7, GO9 and GO12, the GO5 XSE does not have a radar (Ethernet) connection and does not support radar. If you need radar, choose a GO7 or larger model.
How does the GO5 connect to other equipment, and what is its power and waterproof rating?
The GO5 XSE has a single NMEA 2000 Micro-C port for engine data, sensors, autopilot and FUSION audio. It runs on a 10 to 17 V DC supply and carries an IPX7 waterproof rating.
What warranty does the GO5 come with?
The Simrad GO5 XSE is supplied with a 2-year warranty.
