Simrad GO5 XSE, Total Scan transducer CMAP PRO Simrad GO5 XSE, Total Scan transducer CMAP PRO
Simrad GO5 XSE, Total Scan transducer CMAP PRO
Discontinued

This product has been discontinued by Simrad and is no longer available to buy.

Not sure what replaces it? Talk to us.

Contact HME

or call us on +442380455129

Simrad

Simrad GO5 XSE, Total Scan transducer CMAP PRO

000-12675-001

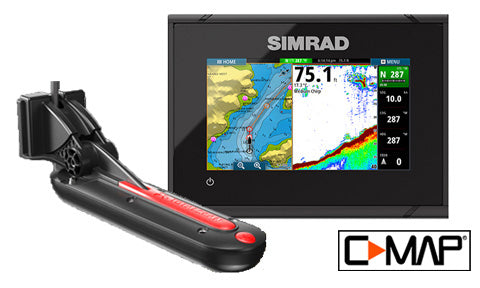

The Simrad GO5 XSE is a 5-inch multi-touch chartplotter and fishfinder, supplied here with the TotalScan Skimmer transducer and a C-MAP chart. CHIRP sonar plus StructureScan and DownScan Imaging come from a single transom-mount transducer. A built-in GPS receiver, Wi-Fi and NMEA 2000 networking pair with a sunlight-viewable 1200-nit display.

Description

Get more from every day on the water with the Simrad GO5 XSE, a perfect fit for compact sportboats and dayboats. Behind its super-bright touchscreen lies a chartplotter with built-in GPS receiver, and Wi-Fi access to the latest charts and updates. Control your onboard sound system, monitor engine data and more over NMEA 2000®, and choose from an array of built-in sonar technologies: cruise with confidence using ForwardScan™ forward-looking sonar, or find fish like a pro with Broadband Sounder™ CHIRP sonar plus StructureScan® HD SideScan and DownScan Imaging™. Includes TotalScan™ transducer for medium/high frequency CHIRP sonar and StructureScan® HD imaging

PRODUCT DETAILS

  • 5-inch sunlight-viewable widescreen display with 1200-nit LED backlight
  • Supplied with the TotalScan Skimmer transducer and a C-MAP chart
  • CHIRP, StructureScan and DownScan Imaging from a single transducer
  • Built-in 10 Hz GPS receiver and Wi-Fi for app control
  • NMEA 2000 connectivity for engines, sensors and autopilot
  • Simple, tablet-style multi-touch operation
  • GO5 XSE display unit
  • TotalScan Skimmer transom-mount transducer
  • C-MAP chart card
  • Bracket and knobs
  • Sun cover
  • Power cable
  • Mounting hardware
  • Documentation

No exploded diagram available for this product.

B&G, Lowrance, Simrad TotalScan Skimmer Transducer

B&G, Lowrance, Simrad TotalScan Skimmer Transducer

Lowrance B&G Simrad Active Imaging 3-IN-1 Transducer

Lowrance B&G Simrad Active Imaging 3-IN-1 Transducer

Simrad GO5 Suncover

Simrad GO5 Suncover

No compatible products found.

General

Sonar SupportIntegrated CHIRP and DownScan Imaging
CartographyC-MAP and Navionics compatible
Warranty2 years

GPS

ReceiverInternal, 32-channel
Update Rate10 Hz
CorrectionsWAAS, EGNOS, MSAS, GLONASS

Connectivity

NMEA 20001 x Micro-C port
Wi-FiBuilt-in
BluetoothBuilt-in
Sonar ConnectorSingle 9-pin XSonic
Card Reader1 x microSD (max 32GB)

Physical

Dimensions (W x H x D)152 x 120 x 57.9 mm (no bracket)
Weight0.54 kg
MountingBracket or panel mount

Environment

Waterproof RatingIPX7
Operating Temperature-15°C to +55°C
Storage Temperature-20°C to +60°C

Display

Screen Size5" widescreen
Display TypeWVGA colour TFT LCD
Resolution800 x 480
BacklightLED, white
Brightness1200 nits
TouchscreenMulti-touch

Electrical

Supply Voltage10 to 17 V DC
Power ConsumptionApprox. 0.9 A at 13.5 V
Recommended Fuse3 A

Sonar

TransducerTotalScan Skimmer (transom mount)
CHIRP Sonar83/200 kHz (Medium/High CHIRP)
StructureScan / DownScan455/800 kHz
SideScan455/800 kHz
Connector9-pin XSonic
What size is the Simrad GO5 screen?
The GO5 XSE has a 5-inch widescreen colour display with WVGA 800 x 480 resolution. It is a multi-touch screen with a bright 1200-nit backlight for clear viewing in direct sunlight.
Does the GO5 have built-in GPS and Wi-Fi?
Yes. The GO5 XSE has an internal GPS receiver for position and a built-in Wi-Fi connection, which lets you download chart updates and view the display on a phone or tablet.
What sonar does the GO5 support and which transducer is included?
The GO5 XSE has a built-in CHIRP sounder with DownScan Imaging and connects a single 9-pin XSonic transducer. This package includes the TotalScan transom-mount transducer for medium/high CHIRP sonar with StructureScan HD and DownScan Imaging.
Can I connect radar to the GO5?
No. Unlike the larger GO7, GO9 and GO12, the GO5 XSE does not have a radar (Ethernet) connection and does not support radar. If you need radar, choose a GO7 or larger model.
How does the GO5 connect to other equipment, and what is its power and waterproof rating?
The GO5 XSE has a single NMEA 2000 Micro-C port for engine data, sensors, autopilot and FUSION audio. It runs on a 10 to 17 V DC supply and carries an IPX7 waterproof rating.
What warranty does the GO5 come with?
The Simrad GO5 XSE is supplied with a 2-year warranty.
