Discontinued
This product has been discontinued by Simrad and is no longer available to buy.
Simrad

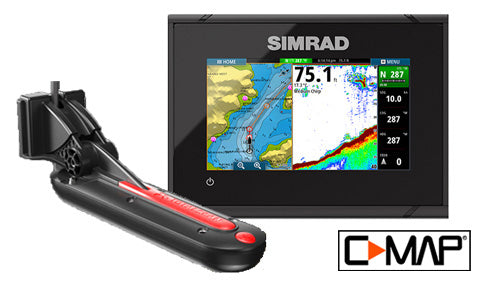

Simrad GO5 XSE TotalScan North Europe Cmap MaxN
000-12675-006
The Simrad GO5 XSE is a 5-inch multi-touch chartplotter and fishfinder, supplied here with the TotalScan Skimmer transducer and a C-MAP MAX-N chart for Northern Europe. CHIRP sonar plus StructureScan and DownScan Imaging come from a single transom-mount transducer. A built-in GPS receiver, Wi-Fi and NMEA 2000 networking complete the package.
Description
The compact 5-inch Simrad GO5 XSE brings chartplotting, GPS and sonar to smaller sportboats and dayboats with limited dash space. The super-bright multi-touch screen reads clearly in sunlight, and built-in Wi-Fi keeps charts updated and mirrors the display to a phone or tablet.
Supplied with the TotalScan transom-mount transducer for medium/high CHIRP sonar with StructureScan HD and DownScan Imaging, and a C-MAP MAX-N chart card for Northern Europe offering detailed coastal charting, tidal data, high-definition contours and C-MAP Easy Routing. NMEA 2000 connects engine data, sensors and audio.
PRODUCT DETAILS
- 5-inch sunlight-viewable widescreen display with 1200-nit LED backlight
- Supplied with the TotalScan transducer and C-MAP MAX-N (Northern Europe)
- CHIRP, StructureScan and DownScan Imaging from a single transducer
- Built-in 10 Hz GPS receiver and Wi-Fi for app control
- NMEA 2000 connectivity for engines, sensors and autopilot
- Simple, tablet-style multi-touch operation
- GO5 XSE display unit
- TotalScan Skimmer transom-mount transducer
- C-MAP MAX-N chart card (Northern Europe)
- Bracket and knobs
- Sun cover
- Power cable
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible products found.
General
| Sonar Support | Integrated CHIRP and DownScan Imaging |
| Cartography | C-MAP and Navionics compatible |
| Warranty | 2 years |
GPS
| Receiver | Internal, 32-channel |
| Update Rate | 10 Hz |
| Corrections | WAAS, EGNOS, MSAS, GLONASS |
Connectivity
| NMEA 2000 | 1 x Micro-C port |
| Wi-Fi | Built-in |
| Bluetooth | Built-in |
| Sonar Connector | Single 9-pin XSonic |
| Card Reader | 1 x microSD (max 32GB) |
Physical
| Dimensions (W x H x D) | 152 x 120 x 57.9 mm (no bracket) |
| Weight | 0.54 kg |
| Mounting | Bracket or panel mount |
Environment
| Waterproof Rating | IPX7 |
| Operating Temperature | -15°C to +55°C |
| Storage Temperature | -20°C to +60°C |
Display
| Screen Size | 5" widescreen |
| Display Type | WVGA colour TFT LCD |
| Resolution | 800 x 480 |
| Backlight | LED, white |
| Brightness | 1200 nits |
| Touchscreen | Multi-touch |
Electrical
| Supply Voltage | 10 to 17 V DC |
| Power Consumption | Approx. 0.9 A at 13.5 V |
| Recommended Fuse | 3 A |
Sonar
| Transducer | TotalScan Skimmer (transom mount) |
| CHIRP Sonar | 83/200 kHz (Medium/High CHIRP) |
| StructureScan / DownScan | 455/800 kHz |
| SideScan | 455/800 kHz |
| Connector | 9-pin XSonic |
What size is the Simrad GO5 screen?
The GO5 XSE has a 5-inch widescreen colour display with WVGA 800 x 480 resolution. It is a multi-touch screen with a bright 1200-nit backlight for clear viewing in direct sunlight.
Does the GO5 have built-in GPS and Wi-Fi?
Yes. The GO5 XSE has an internal GPS receiver for position and a built-in Wi-Fi connection, which lets you download chart updates and view the display on a phone or tablet.
What sonar does the GO5 support and which transducer is included?
The GO5 XSE has a built-in CHIRP sounder with DownScan Imaging and connects a single 9-pin XSonic transducer. This package includes the TotalScan transom-mount transducer for medium/high CHIRP sonar with StructureScan HD and DownScan Imaging.
Can I connect radar to the GO5?
No. Unlike the larger GO7, GO9 and GO12, the GO5 XSE does not have a radar (Ethernet) connection and does not support radar. If you need radar, choose a GO7 or larger model.
How does the GO5 connect to other equipment, and what is its power and waterproof rating?
The GO5 XSE has a single NMEA 2000 Micro-C port for engine data, sensors, autopilot and FUSION audio. It runs on a 10 to 17 V DC supply and carries an IPX7 waterproof rating.
What warranty does the GO5 come with?
The Simrad GO5 XSE is supplied with a 2-year warranty.
