Discontinued
This product has been discontinued by Simrad and is no longer available to buy.
Simrad

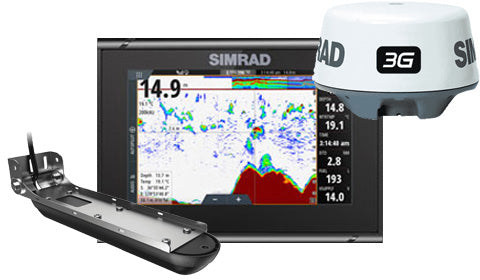

Simrad GO7 XSR with 3-in-1 Transducer and 3G Radar
000-14874-001
This Simrad GO7 XSR bundle pairs the 7-inch multi-touch chartplotter with a Broadband 3G radar and the transom-mount Active Imaging 3-in-1 transducer. CHIRP, SideScan and DownScan Imaging come from a single transducer, while the 3G dome adds collision avoidance and fishfinding range. Built-in GPS, Wi-Fi and NMEA 2000 complete the package.
Description
7-inch chartplotter and radar display with Broadband 3G™ radar and Active Imaging 3-in-1 transducer.
The GO7 XSR is a great way to add GPS navigation, sonar, and even radar to your boat. This compact yet feature-packed display is perfect for smaller sportboats, dayboats, and centre-consoles. Wireless connectivity to smartphones and tablets keeps you in control from anywhere on board, almost like a second display.
PRODUCT DETAILS
- 7-inch sunlight-viewable widescreen display with 1200-nit LED backlight
- Complete bundle: GO7 XSR, Broadband 3G radar and Active Imaging 3-in-1 transducer
- CHIRP, SideScan and DownScan Imaging from a single transducer
- Broadband 3G radar for collision avoidance and target detection
- Built-in 10 Hz GPS receiver and Wi-Fi for app control
- NMEA 2000 connectivity for engines, sensors and autopilot
- Simple, tablet-style multi-touch operation
- GO7 XSR display unit
- Broadband 3G radar dome
- Active Imaging 3-in-1 transom-mount transducer
- U-bracket and knobs
- Sun cover
- Power and radar cables
- Documentation
No exploded diagram available for this product.
No compatible products found.
Physical
| Dimensions (W x H x D) | 197 x 141 x 82.7 mm (no bracket) |
| Weight | 1.320 kg |
| Mounting | Bracket or panel mount |
Environment
| Waterproof Rating | IPX6 and IPX7 |
| Operating Temperature | -15°C to +55°C |
| Storage Temperature | -20°C to +60°C |
Display
| Screen Size | 7" widescreen |
| Resolution | 800 x 480 |
| Backlight | LED, white |
| Brightness | 1200 nits |
| Viewing Angles | 80° top/bottom, 80° left/right |
| Touchscreen | Multi-touch |
GPS
| Receiver | Internal, 32-channel |
| Update Rate | 10 Hz |
| Corrections | WAAS, EGNOS, MSAS, GLONASS |
| Position Accuracy | 3 m horizontal |
Connectivity
| NMEA 2000 | 1 x Micro-C port (1 LEN) |
| Ethernet | 1 x 5-pin yellow connector (radar and Sirius, USA only) |
| Wi-Fi | Built-in |
| Bluetooth | Built-in |
| Sonar Connector | Single 9-pin XSonic |
| Card Reader | 1 x microSD (max 32GB) |
Electrical
| Supply Voltage | 10 to 17 V DC |
| Power Consumption (max) | 20 W |
| Power Consumption (typical) | 12 W |
| Recommended Fuse | 3 A |
| Reverse Polarity Protection | Yes (over-voltage protected to 36 V) |
General
| Sonar Support | Integrated CHIRP, DownScan and ForwardScan |
| Radar Compatibility | Broadband 3G/4G and HALO dome radar |
| Cartography | C-MAP and Navionics compatible |
| Autopilot | Compatible with Simrad NAC autopilots (SteadySteer) |
| Warranty | 2 years |
Sonar
| Transducer | Active Imaging 3-in-1 (transom mount) |
| CHIRP Sonar | 83/200 kHz (Medium/High CHIRP) |
| SideScan | 455/800 kHz |
| DownScan Imaging | 455/800 kHz |
| Connector | 9-pin XSonic |
Radar Scanner
| Interface | RI10/RI11 |
| Technology | FMCW |
| ARRAY SIZE (INCH/FEET) | 20" |
| Max Range (NM) | 24 |
| Rotation (RPM) | 24/36 |
| POWER (W) | 0.165 |
What size is the Simrad GO7 screen?
The GO7 has a 7-inch widescreen colour display with WVGA 800 x 480 resolution. It is a multi-touch screen with a bright backlight for clear viewing in direct sunlight.
Does the GO7 have built-in GPS and Wi-Fi?
Yes. The GO7 has an internal GPS receiver and built-in Wi-Fi, which lets you download chart updates and view the display on a phone or tablet, and control the unit from a tablet.
What sonar does the GO7 support and which transducer is included?
The GO7 has a built-in CHIRP sounder with DownScan Imaging and connects a single 9-pin XSonic transducer. This package includes the Active Imaging 3-in-1 transom-mount transducer (SideScan, DownScan and CHIRP).
Can I add radar to the GO7?
Yes. The GO7 has a radar (Ethernet) connection and supports Simrad Broadband 3G and 4G radar as well as HALO dome radar. This package includes a Broadband 3G radar dome.
How does the GO7 connect to other equipment, and what is its power and waterproof rating?
The GO7 uses NMEA 2000 networking for engine data, sensors, autopilot and FUSION audio, and has an Ethernet port for radar. It runs on a 10 to 17 V DC supply and carries an IPX7 waterproof rating.
What warranty does the GO7 come with?
The Simrad GO7 is supplied with a 2-year warranty.
