Discontinued
This product has been discontinued by Simrad and is no longer available to buy.
Simrad

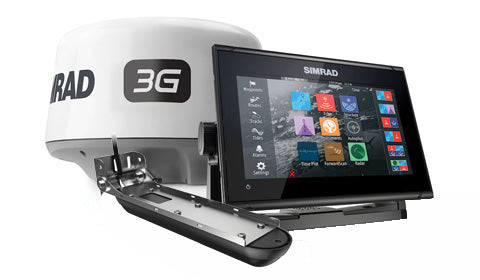

Simrad GO9 XSE with 3-in-1 Transducer and 3G Radar
000-14882-001
This Simrad GO9 XSE bundle pairs the 9-inch multi-touch chartplotter with a Broadband 3G radar and the transom-mount Active Imaging 3-in-1 transducer. CHIRP, SideScan and DownScan Imaging come from a single transducer, while the 3G dome adds collision avoidance and fishfinding range. Built-in GPS, Wi-Fi and NMEA 2000 complete the package.
Description
9-inch chartplotter and radar display with Broadband 3G™ radar and Active Imaging 3-in-1 transducer.
The Simrad GO9 XSE chartplotter navigation display is a perfect way to expand the capabilities of sportboats, cruisers, and smaller center consoles with plug-and-play support for Simrad Broadband Radar™ and Halo™ Pulse Compression radar systems. Behind a super-bright, multi-touch widescreen display lies a built-in GPS receiver, wireless connectivity, and industry standard NMEA 2000® networking. Connect with smartphones and tablets, control your onboard sound system, monitor engine data, and choose from an array of built-in sonar technology to cruise with confidence and find fish like a pro.
PRODUCT DETAILS
- 9-inch sunlight-viewable widescreen display with 1200-nit LED backlight
- Complete bundle: GO9 XSE, Broadband 3G radar and Active Imaging 3-in-1 transducer
- CHIRP, SideScan and DownScan Imaging from a single transducer
- Broadband 3G radar for collision avoidance and target detection
- Built-in 10 Hz GPS receiver and Wi-Fi for app control
- NMEA 2000 connectivity for engines, sensors and autopilot
- Simple, tablet-style multi-touch operation
- GO9 XSE display unit
- Broadband 3G radar dome
- Active Imaging 3-in-1 transom-mount transducer
- Gimbal bracket and knobs
- Sun cover
- Power and radar cables
- Documentation
No exploded diagram available for this product.
No compatible products found.
GPS
| Receiver | Internal, 32-channel |
| Update Rate | 10 Hz |
| Corrections | WAAS, EGNOS, MSAS, GLONASS |
| Position Accuracy | 3 m horizontal |
Connectivity
| NMEA 2000 | 1 x Micro-C port (1 LEN) |
| Ethernet | 1 x 5-pin yellow connector (radar and Sirius, USA only) |
| Wi-Fi | Built-in |
| Bluetooth | Built-in |
| Sonar Connector | Single 9-pin XSonic |
| Card Reader | 2 x microSD (max 32GB each) |
Environment
| Waterproof Rating | IPX6 and IPX7 |
| Operating Temperature | -15°C to +55°C |
| Storage Temperature | -20°C to +60°C |
Electrical
| Supply Voltage | 10 to 17 V DC |
| Power Consumption (max) | 20 W |
| Power Consumption (typical) | 12 W |
| Recommended Fuse | 3 A |
General
| Sonar Support | Integrated CHIRP, DownScan and ForwardScan |
| Radar Compatibility | Broadband 3G/4G and HALO dome radar |
| Cartography | C-MAP and Navionics compatible |
| Autopilot | Compatible with Simrad NAC autopilots (SteadySteer) |
| Warranty | 2 years |
Physical
| Dimensions (W x H x D) | 243 x 171 x 83 mm (no bracket) |
| Weight | 1.315 kg |
| Mounting | Bracket or panel mount |
Display
| Screen Size | 9" widescreen |
| Resolution | 800 x 480 |
| Backlight | LED, white |
| Brightness | 1200 nits |
| Viewing Angles | 80° top/bottom, 80° left/right |
| Touchscreen | Multi-touch |
Sonar
| Transducer | Active Imaging 3-in-1 (transom mount) |
| CHIRP Sonar | 83/200 kHz (Medium/High CHIRP) |
| SideScan | 455/800 kHz |
| DownScan Imaging | 455/800 kHz |
| Connector | 9-pin XSonic |
Radar Scanner
| Interface | RI10/RI11 |
| Technology | FMCW |
| ARRAY SIZE (INCH/FEET) | 20" |
| Max Range (NM) | 24 |
| Rotation (RPM) | 24/36 |
| POWER (W) | 0.165 |
What size is the Simrad GO9 screen?
The GO9 XSE has a 9-inch widescreen colour display. It is a super-bright multi-touch screen designed for clear viewing in direct sunlight.
Does the GO9 have built-in GPS and Wi-Fi?
Yes. The GO9 XSE has an internal GPS receiver and built-in Wi-Fi, which lets you download chart updates and view the display on a phone or tablet, and control the unit from a tablet.
What sonar does the GO9 support and which transducer is included?
The GO9 XSE has a built-in CHIRP sounder with DownScan Imaging and connects a single 9-pin XSonic transducer. This package includes the Active Imaging 3-in-1 transom-mount transducer (SideScan, DownScan and CHIRP).
Can I add radar to the GO9?
Yes. The GO9 XSE has a radar (Ethernet) connection and supports Simrad Broadband 3G and 4G radar as well as HALO dome radar. This package includes a Broadband 3G radar dome.
How does the GO9 connect to other equipment, and what is its power and waterproof rating?
The GO9 uses NMEA 2000 networking for engine data, sensors, autopilot and FUSION audio, and has an Ethernet port for radar. It runs on a 10 to 17 V DC supply and carries an IPX7 waterproof rating.
What warranty does the GO9 come with?
The Simrad GO9 XSE is supplied with a 2-year warranty.
