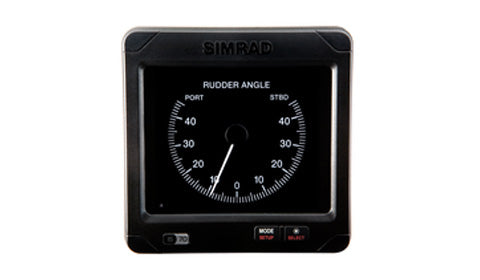

Simrad IS70 Rudder Indicator RI70-45 45 Degree Scale
Description
The Simrad RI70-45 is an analogue rudder angle indicator, part of the IS70 series of commercial bridge instruments. It shows the current rudder position on a clearly marked analogue dial, giving the helmsman and bridge team a reliable visual reference during manoeuvring and autopilot steering.
The RI70-45 reads across a 45 degree scale either side of centre and accepts a +/-10 V analogue input from a compatible rudder feedback. As part of the modular IS70 range it shares a common form factor with the other RI70, RT70, RPM70 and SP70 indicators for a consistent, professional bridge layout.
PRODUCT DETAILS
- Analogue rudder angle indicator
- 45 degree scale either side of centre
- Analogue +/-10 V input, 12-24 V DC supply
- Built to IEC 61162-3
- Part of the modular IS70 commercial instrument series
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Sensor
| Indicator type | Rudder angle indicator |
| Scale | 45 degrees either side of centre |
Electrical
| Input | Analogue +/- 10 V |
| Supply voltage | 12-24 V DC |
General
| Standard | IEC 61162-3 |
