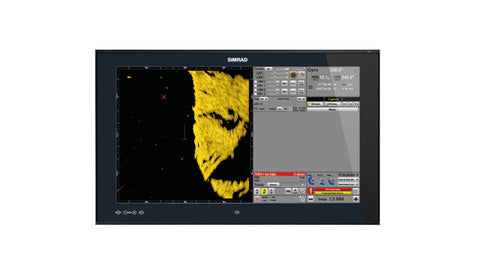

Simrad M5016 Monitor 15.6 Inch widescreen
Description
The Simrad M5016 is a 15.6-inch widescreen marine monitor built for commercial and professional bridge installations. Its 1366 x 768 anti-reflective, anti-fingerprint display delivers a clear picture in the pilothouse, while a low-profile 8 mm flush-mount profile lets the unit sit neatly in the dash or console. HDMI, DVI and dual composite inputs support a wide range of radar, chartplotter and camera sources, with picture-in-picture and on-glass touch controls for setup.
The M5016 complies with IEC 60945, IEC 62288 and IEC 62388 and can be used as part of a type-approved radar system, making it suitable for IMO/SOLAS Cat 3 vessels. Power and setup keys use capacitive touch, and the monitor offers thermal, overvoltage, reverse-polarity and low-voltage protection. NMEA 2000 connectivity supports control and firmware updates across the network.
PRODUCT DETAILS
- 15.6-inch widescreen commercial marine monitor
- 1366 x 768 native resolution, 300-nit anti-reflective display
- Low-profile 8 mm flush-mount design
- HDMI, DVI and two composite video inputs
- Complies with IEC 60945, IEC 62288 and IEC 62388 for type-approved radar systems
- NMEA 2000 connectivity for control and updates
- Picture-in-picture with on-glass capacitive menu keys
- Thermal, overvoltage, reverse-polarity and low-voltage protection
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Screen size | 15.6" widescreen TFT active matrix |
| Native resolution | 1366 x 768 |
| Brightness | 300 nit |
| Contrast ratio | 500:1 |
| Display colours | 16.7 million |
| Screen glass | Anti-reflective (AR) and anti-fingerprint (AF) |
Connectivity
| Video inputs | 1x HDMI, 1x DVI-I, 2x composite (NTSC & PAL) |
| Comms / control | RS422, USB, NMEA 2000 |
Power
| Supply voltage | 12 V / 24 V DC (9-31.2 V) |
| Power consumption | 12 W |
| Recommended fuse | 3 A |
Physical
| Weight (monitor only) | 3.60 kg |
| Bezel & rear case | PC/ABS |
Environmental
| Water ingress | IPX5 (dash mount, front), IPX2 (bracket mount) |
| Operating temperature | -15°C to +55°C |
Approvals
| Standards | IEC 60945, IEC 62288, IEC 62388 (as part of a type-approved system) |
