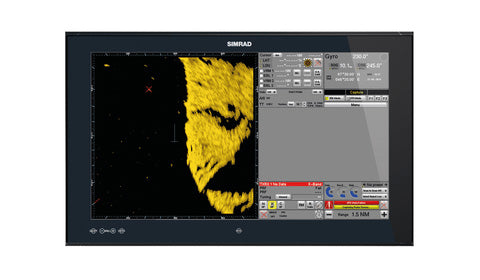

Simrad M5019 Monitor 18.5 Inch widescreen
Description
The Simrad M5019 is an 18.5-inch widescreen marine monitor for commercial and professional bridge installations. Its 1366 x 768 anti-reflective, anti-fingerprint display gives a clear, glare-controlled picture for pilothouse use, and the low-profile 8 mm flush-mount design fits neatly into the dash or console. HDMI, DVI and dual composite inputs accept radar, chartplotter and camera sources, with picture-in-picture and on-glass touch controls for setup.
The M5019 complies with IEC 60945, IEC 62288 and IEC 62388 and can be used as part of a type-approved radar system, suiting it to IMO/SOLAS vessels. Capacitive power and setup keys, NMEA 2000 connectivity for control and firmware updates, and built-in thermal, overvoltage, reverse-polarity and low-voltage protection make it a dependable bridge display.
PRODUCT DETAILS
- 18.5-inch widescreen commercial marine monitor
- 1366 x 768 native resolution, 300-nit anti-reflective display
- Low-profile 8 mm flush-mount design
- HDMI, DVI and two composite video inputs
- Complies with IEC 60945, IEC 62288 and IEC 62388 for type-approved radar systems
- NMEA 2000 connectivity for control and updates
- Picture-in-picture with on-glass capacitive menu keys
- Thermal, overvoltage, reverse-polarity and low-voltage protection
No exploded diagram available for this product.
No compatible transducers listed for this product.
Simrad MO19 Bezels, Silver and Black, Two sets
Simrad MO19, Vesa Mounting Bracket kit
Simrad MO16/19/24 Connectors kit
Simrad MO16/19/24, Dash Seal Kit
Simrad MO16/19/24/27 Inlet Filter Cover
Simrad MO16/19/24/27 Inlet Filters 5 Packs
Simrad Suncover for 19 Inch Monitor
Simrad Magnetic Suncover, 19″ Monitor
No compatible products found.
Display
| Screen size | 18.5" widescreen TFT active matrix |
| Native resolution | 1366 x 768 |
| Brightness | 300 nit |
| Contrast ratio | 1000:1 |
| Display colours | 16.7 million |
| Screen glass | Anti-reflective (AR) and anti-fingerprint (AF) |
Connectivity
| Video inputs | 1x HDMI, 1x DVI-I, 2x composite (NTSC & PAL) |
| Comms / control | RS422, USB, NMEA 2000 |
Power
| Supply voltage | 12 V / 24 V DC (9-31.2 V) |
| Power consumption | 13 W |
| Recommended fuse | 4 A |
Physical
| Weight (monitor only) | 4.60 kg |
| Bezel & rear case | PC/ABS |
Environmental
| Water ingress | IPX5 (dash mount, front), IPX2 (bracket mount) |
| Operating temperature | -15°C to +55°C |
Approvals
| Standards | IEC 60945, IEC 62288, IEC 62388 (as part of a type-approved system) |
