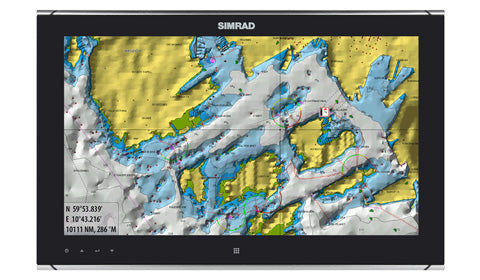

Simrad MO19-T 19 inch Touchscreen High Bright monitor
Manufacturer Part Number:
000-11262-001
Manufacturer Part Number:
000-11262-001
MO19-T. 19 Inch Widescreen High bright, multi-touch monitor. High Definition 1366x768 resolution. 1000 nit brightness.
Inputs: HDMI, DVI, Composite Video x2. N2K connectivity for Simrad backlight control.
Excludes video cable and touch control cable.
Home or Marina Delivery
Pick up at Hamble
More Information
In the Box
1 Monitor
2 Dash mount brackets (x2)
3 Washer, M4, 12 mm, SS (x4)
4 Pozi pan head machine screw, M4 x 12 mm, SS (x4)
5 Plastic spacer (x4)
6 Wing nut M5 (x4)
7 Wing head machine screw (x4)
8 Plastic stopper - dash mount (x4)
9 Pozi pan head self-tapping screw 4G x 1/2” (x12)
10 Cable retention bracket with screws 4G x 1/2” (x4)
11 Cable ties (x4)
12 Connector block (serial data)
13 Micro-C tee piece
14 Micro-C cable, 2 m (6ft)
15 Power cable with connector
16 Bezel trim, black (x2)
17 Bezel trim, silver (x2)
18 Operator manual
19 Cutout template
20 Warranty card
21 Drill and screw guide tool
MO16-T 16 Dimensions
Product Width 400mm / 15.7″
Product Height 260mm / 10.2″
Product Depth 74mm / 2.9″
MO19-T 19 Dimensions
Product Width 478mm / 18.8″
Product Height 305mm / 12.0″
Product Depth 74mm / 2.9″
MO24-T 24 Dimensions
Product Width 625mm / 24.6″
Product Height 386mm / 15.2″
Product Depth 74mm / 2.9″
