This product has been discontinued by Simrad and is no longer available to buy.
Simrad

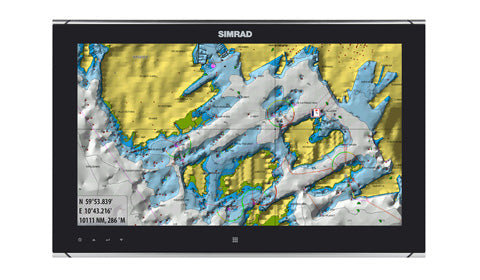

Simrad Monitor SIM MO19-P Pilot House ROW
Description
The Simrad MO19-P is a 19-inch widescreen pilot house monitor designed for cruising yachts, centre consoles and sportfishing boats. Its slim flush-mount profile maximises viewing area while minimising dash footprint, making it well suited to glass bridge installations. The 1366 x 768 display gives a clear, detailed picture for navigation and camera feeds.
HDMI, DVI and two composite inputs connect a wide range of devices, and NMEA 2000 connectivity supports Simrad backlight control across the network. The pilot house (non-touch) design keeps installation straightforward for fixed bridge layouts. Video cable not included.
PRODUCT DETAILS
- 19-inch widescreen pilot house monitor
- 1366 x 768 resolution
- Slim flush-mount profile for glass bridge installs
- HDMI, DVI and two composite video inputs
- NMEA 2000 connectivity for Simrad backlight control
- Non-touch design for fixed bridge layouts
No exploded diagram available for this product.
No compatible transducers listed for this product.
Simrad MO16/19/24 Connectors kit
Simrad MO16/19/24, Dash Seal Kit
Simrad MO16/19/24/27 Inlet Filters 5 Packs
Simrad Magnetic Suncover, 19″ Monitor
Simrad MO19 Bezels, Silver and Black, Two sets
Simrad MO16/19/24/27 Inlet Filter Cover
Simrad MO19, Vesa Mounting Bracket kit
Simrad Suncover for 19 Inch Monitor
No compatible products found.
Display
| Screen size | 19" widescreen |
| Native resolution | 1366 x 768 |
| Touchscreen | No (pilot house) |
Connectivity
| Video inputs | 1x HDMI, 1x DVI, 2x composite |
| Network | NMEA 2000 (backlight control) |
Physical
| Dimensions (WxHxD) | 478 x 305 x 74 mm |
