Simrad NSO evo2 Glass Bridge Dual 16 Inch Monitor Bundle, No Charts

Name: Simrad NSO evo2 Glass Bridge Dual 16 Inch Monitor Bundle, No Charts
Brand: Simrad
SKU: 000-13568-004
Availability: Discontinued

000-13568-004

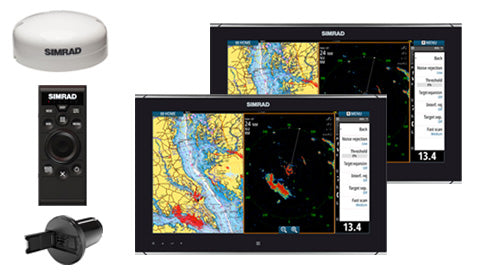

This Simrad NSO evo2 dual 16-inch glass-helm bundle pairs the black-box NSO evo2 marine processor with two Simrad MO16-T touch monitors, an OP50 controller, an MI10 chart card reader and a GS25 GPS antenna. Dual quad-core processing runs both Full HD touchscreens independently for charts, radar and sonar. Three Ethernet ports, NMEA 2000 and NMEA 0183 give wide integration. No detailed charts included.

Description

This Simrad NSO evo2 system drives two Simrad MO16-T 16-inch Full HD multi-touch monitors from a single NSO evo2 marine processor, giving you matched displays at the helm or split across two stations. The dual iMX61 quad-core processor runs each monitor as an independent multifunction display for charting, echosounder, radar, autopilot and entertainment, all under fast fingertip touch control.

Built as a distributed black-box system, the processor outputs to two independent monitors via HDMI and integrates across the vessel through three Ethernet ports and NMEA 2000. The pack ships with the OP50 controller for keypad operation, an MI10 card reader and a GS25 GPS antenna for accurate position and speed. A worldwide basemap is pre-loaded; no detailed cartography is included, so add a C-MAP or Navionics chart card to suit your cruising area.

PRODUCT DETAILS

NSO evo2 black-box processor with two MO16-T 16-inch touch monitors
Dual quad-core processing drives both displays independently
Includes OP50 controller, MI10 chart card reader and GS25 GPS antenna
Single or dual touchscreen operation from one processor
Three Ethernet ports (two with PoE), NMEA 2000 and NMEA 0183
Integrates with radar, sonar, autopilot and third-party systems

NSO evo2 Marine Processor
2 x Simrad MO16-T 16" touch monitors
OP50 controller
MI10 chart card reader
GS25 GPS antenna
Processor power, Micro-C, NMEA 0183 and Ethernet cables
Monitor mounting and connection hardware
Documentation pack

No exploded diagram available for this product.

No compatible transducers listed for this product.

Simrad MO16 Bezels, Silver and Black Two sets

Simrad MO16/19/24, Dash Seal Kit

Simrad MO16/19/24 Connectors kit

Simrad MO16/19/24/27 Inlet Filter Cover

Simrad MO16/19/24/27 Inlet Filters 5 Packs

Simrad NSO / NSE SD Card Door Kit

No compatible products found.

General

Pack Includes	NSO evo2 processor, 2 x Simrad MO16-T 16" touch monitors, OP50 controller, MI10 card reader, GS25 GPS antenna
Processors	Dual iMX61 quad-core
GPS	GS25 GPS antenna included
Cartography Included	Worldwide basemap (no detailed cartography)

Display

Monitor	2 x Simrad MO16-T 16" touch monitor (Full HD)
Monitor Support	Up to 2 independent monitors via 2 HDMI outputs

Electrical

MPU Supply Voltage	9 - 31.2 V DC
MPU Power Consumption	45 W max

Connectivity

Ethernet	3 ports (2 with PoE), RJ45
NMEA 2000	1 x Micro-C port
Card Reader	MI10 USB reader with 2 microSD slots (max 32 GB each)

Physical

Processor Dimensions (W x H x D)

281 x 232 x 65.5 mm

Approvals

Compliance

CE, C-Tick, HDMI

What does this NSO evo2 dual bundle include?

The pack pairs the NSO evo2 marine processor with two Simrad MO16-T 16-inch Full HD touch monitors, and adds an OP50 controller, an MI10 card reader, a GS25 GPS antenna, and the power, NMEA and Ethernet cabling needed to install the system.

How are the two monitors used?

The processor drives both 16-inch MO16-T touch monitors via its two HDMI outputs, with each running as an independent multifunction display.

Is GPS included, and is there a built-in sonar?

A GS25 GPS antenna is included for accurate position and speed. There is no built-in sonar; to view echosounder images add a compatible external echosounder module on the Ethernet network.

What networking does the system provide?

The processor offers three Ethernet ports (two with Power over Ethernet), one NMEA 2000 Micro-C port, and NMEA 0183 connectivity for integrating radar, autopilot, sonar and more.

Are charts included and what is the warranty?

A worldwide basemap is pre-loaded but no detailed cartography is supplied, so add a C-MAP or Navionics card for your area. The bundle carries a 2-year warranty.
