Simrad NSO evo3 Glass Bridge 16 Inch, GS25 GPS, OP50 Remote, MI10

Name: Simrad NSO evo3 Glass Bridge 16 Inch, GS25 GPS, OP50 Remote, MI10
Brand: Simrad
SKU: 000-14000-001
Availability: Discontinued

000-14000-001

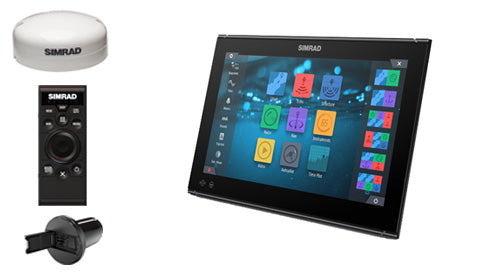

This Simrad NSO evo3 16-inch glass-helm bundle pairs the low-profile black-box MFD display with the parts to commission a system: a GS25 GPS antenna, an OP50 remote controller and an MI10 chart card reader. The ultra-bright Full HD SolarMAX IPS touchscreen stays clear from wide angles and through polarised sunglasses, with up to six split-screen panels. Built-in Wi-Fi and NMEA 2000 connect radar, sonar and autopilot across the vessel.

Description

NSO evo3 delivers the ultimate view with an ultra-bright 16-inch display, ideal for both indoor and outdoor installations. Wide viewing angles keep the screen in view from anywhere in sight, even if you're wearing polarised sunglasses. See more than ever with Full HD resolution, and the option to combine up to six panels in a split-screen layout.

PRODUCT DETAILS

NSO evo3 16-inch glass-helm display with GS25 GPS, OP50 remote and MI10 card reader
Ultra-bright 16-inch Full HD (1920 x 1080) SolarMAX IPS touchscreen, 1000 nits
Wide 80 degree viewing angles, readable through polarised sunglasses
Combine up to six panels in a split-screen layout
Built-in Wi-Fi (802.11b/g/n), three Ethernet ports and NMEA 2000
Integrates with radar, CHIRP sonar, autopilot and third-party systems

NSO evo3 16" display unit
GS25 GPS antenna
OP50 remote controller
MI10 chart card reader
Suncover and bezels
Power, Ethernet adapter and NMEA cables
NMEA 2000 starter kit
Panel mounting kit
Documentation pack

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Pack Includes	NSO evo3 16" display, GS25 GPS antenna, OP50 remote controller, MI10 chart card reader
GPS	GS25 GPS antenna included
Sonar	External echosounder module or networked MFD required

Display

Screen Size	16 inches
Resolution	1920 x 1080 (Full HD)
Display Type	SolarMAX IPS, full multi-touch
Brightness	1000 nits
Viewing Angles	80 degrees top/bottom, 80 degrees left/right

Electrical

Supply Voltage	12/24 V DC (10 - 31.2 V DC)
Power Consumption (max)	40 W (+/- 4 W)
Recommended Fuse Rating	6 A at 12 V DC / 3 A at 24 V DC

Connectivity

Ethernet	3 x RJ45
NMEA 2000	1 x Micro-C
NMEA 0183	4 ports
Wi-Fi	Internal 802.11b/g/n
Card Reader	1 microSD slot (display); MI10 reader included with 2 microSD slots

Environment

Operating Temperature	-15 C to +55 C
Waterproof Rating	IPX6 (front, when panel mounted)

Physical

Display Weight	3.9 kg
Mounting	Panel or bracket mount

Approvals

Compliance

CE (2014/53/EU), FCC Part 15

What does this NSO evo3 16-inch pack include?

It pairs the 16-inch NSO evo3 display with a GS25 GPS antenna, an OP50 remote controller and an MI10 chart card reader, plus suncover, bezels, cabling, NMEA 2000 starter kit and panel mounting kit.

What screen does it have?

A 16-inch SolarMAX IPS Full HD (1920 x 1080) multi-touch display with 1000 nits brightness and wide viewing angles, readable in sunlight and through polarised sunglasses.

Is GPS included, and is there a built-in sonar?

Yes, a GS25 GPS antenna is included. There is no built-in sonar; add an external echosounder module or a networked MFD with built-in sonar to display echosounder images.

What does the OP50 remote do?

The OP50 is a wired keypad and rotary controller that provides tactile control of the display, ideal for fine adjustments or use in rough conditions, and can control multiple displays in a system.

What is the waterproof rating and warranty?

The display front is rated IPX6 when panel mounted. The pack is supplied with a 2-year warranty.
