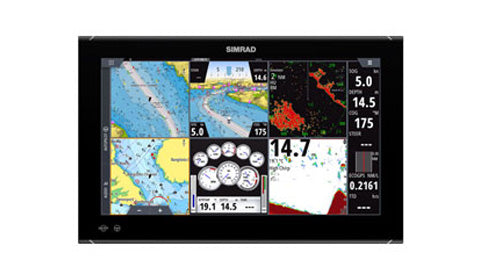

Simrad NSO evo3 Glass Bridge 19 Inch Display Only

Name: Simrad NSO evo3 Glass Bridge 19 Inch Display Only
Brand: Simrad
SKU: 000-14003-001
Availability: Discontinued

000-14003-001

The Simrad NSO evo3 19-inch glass-helm display is a low-profile black-box MFD for building a custom navigation system. Its ultra-bright Full HD SolarMAX IPS touchscreen stays clear from wide angles and through polarised sunglasses, with up to six split-screen panels. Built-in Wi-Fi, three Ethernet ports and NMEA 2000 connect radar, sonar, autopilot and mobile devices across the vessel.

Description

NSO evo3 delivers the ultimate view with an ultra-bright 19-inch display, ideal for both indoor and outdoor installations. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. See more than ever with Full HD resolution, and the option to combine up to six panels in a split-screen layout.

PRODUCT DETAILS

Ultra-bright 19-inch Full HD (1920 x 1080) SolarMAX IPS touchscreen, 1000 nits
Wide 80 degree viewing angles, readable through polarised sunglasses
Combine up to six panels in a split-screen layout
Built-in Wi-Fi (802.11b/g/n), three Ethernet ports and NMEA 2000
Low-profile glass-helm styling for panel or bracket mounting
Integrates with radar, CHIRP sonar, autopilot and third-party systems

NSO evo3 19" display unit
Suncover
Bezels (1 set black, 1 set silver)
Power cable, fuse and connector block
RJ45 to 5-pin Ethernet adapter cable
NMEA 0183 connector block
Cable retainer kit
NMEA 2000 starter kit
Panel mounting kit
Documentation pack

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Display

Screen Size	19 inches
Resolution	1920 x 1080 (Full HD)
Display Type	SolarMAX IPS, full multi-touch
Brightness	1000 nits
Viewing Angles	80 degrees top/bottom, 80 degrees left/right

Electrical

Supply Voltage	12/24 V DC (10 - 31.2 V DC)
Power Consumption (max)	50 W (+/- 4 W)
Recommended Fuse Rating	7 A at 12 V DC / 4 A at 24 V DC

Connectivity

Ethernet	3 x RJ45
NMEA 2000	1 x Micro-C
NMEA 0183	4 ports
Wi-Fi	Internal 802.11b/g/n
Video	2 x composite video (BNC) in, 1 x HDMI in (1080p, HDCP 1.4), 1 x HDMI out (1080p)
USB	3 x USB-A
Card Reader	1 microSD slot

General

GPS	External GPS required
Sonar	External echosounder module or networked MFD required

Environment

Operating Temperature	-15 C to +55 C
Storage Temperature	-20 C to +60 C
Waterproof Rating	IPX6 (front, when panel mounted)

Physical

Weight	4.8 kg
Mounting	Panel or bracket mount
Compass Safe Distance	50 cm

Approvals

Compliance

CE (2014/53/EU), FCC Part 15

What screen does the NSO evo3 19-inch have?

It has a 19-inch SolarMAX IPS Full HD (1920 x 1080) multi-touch display with 1000 nits brightness and wide 80-degree viewing angles, readable in direct sunlight and through polarised sunglasses.

Does this display have a built-in GPS or sonar?

No. The NSO evo3 needs an external GPS for position, and an external echosounder module or a networked MFD with built-in sonar to display echosounder images.

Does it have built-in Wi-Fi and what networking is provided?

Yes, internal 802.11b/g/n Wi-Fi is built in. Wired connectivity includes three Ethernet (RJ45) ports, one NMEA 2000 Micro-C port and four NMEA 0183 ports, plus HDMI in/out, two composite video inputs and three USB-A ports.

Is this the display only, and what is in the box?

Yes, this is the display-only version. It ships with a suncover, black and silver bezels, power and NMEA cabling, an Ethernet adapter, an NMEA 2000 starter kit, panel mounting kit and documentation. A GPS antenna and remote are not included.

What is the waterproof rating and warranty?

The front is rated IPX6 when panel mounted. The display is supplied with a 2-year warranty.
