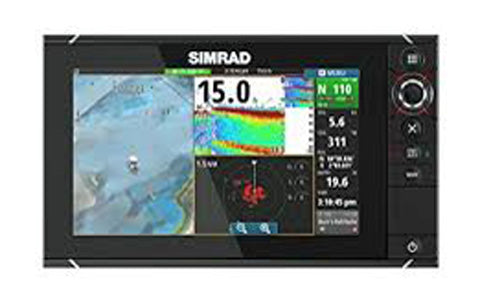

Simrad NSS12 evo2 Combo - 12 inch Multi-function Display

000-11192-001
The Simrad NSS12 evo2 is a 12-inch HD multifunction display combining a widescreen multi-touch screen with keypad and rotary control. It includes a built-in GPS receiver, CHIRP sounder and StructureScan HD support. Dual Ethernet, NMEA 2000 and HDMI output allow integration with radar, autopilot and sonar. Supplied with a world base map.

Description

The NSS12 evo2 is a 12-inch chartplotter and multifunction display built for sportfishing and powerboats, combining a multi-touch screen with a keypad and rotary control for use in any conditions. Built-in GPS positioning means many installations need no external antenna.

An integrated CHIRP echosounder with DownScan and StructureScan support delivers detailed views of the bottom and structure, and the unit can be expanded with SonarHub and BSM sonar modules. NMEA 2000 and dual Ethernet ports let the NSS12 evo2 run standalone in a centre console or as part of a fully networked glass bridge.

PRODUCT DETAILS

  • 12-inch HD widescreen multi-touch display with 1200 nits brightness
  • Combined multi-touch screen and keypad/rotary control
  • Built-in 10 Hz GPS receiver (WAAS, EGNOS, MSAS)
  • Built-in CHIRP sounder with StructureScan HD and ForwardScan support
  • Dual Ethernet plus NMEA 2000 networking, with HDMI video output
  • Full autopilot control and commissioning, plus AIS support
  • IPX6 and IPX7 waterproof rating

No exploded diagram available for this product.

No compatible transducers listed for this product.

Simrad NSS12 Evo2 MkII Sun Cover

Simrad NSS12 Evo2 MkII Sun Cover

No compatible products found.

Display

Screen size12 inch
Resolution1280 x 800 px (WXGA)
Brightness1200 nits
TouchscreenMulti-touch screen with keypad and rotary control

Electrical

Supply voltage9 to 31.2 V DC
Maximum power consumption30 W
Recommended fuse rating5 A

Environment

Operating temperature range-15 C to +55 C
Storage temperature range-20 C to +60 C
Waterproof ratingIPX6 and IPX7

Connectivity

GPS receiverInternal 10 Hz, 32 channels; WAAS, EGNOS, MSAS
Ethernet2 ports (5-pin)
NMEA 2000Micro-C, 1 LEN
Wi-FiCompatible with external WIFI-1 module
HDMI outputYes (fixed at panel resolution)

Sonar

EchosounderIntegrated CHIRP downscan and StructureScan/ForwardScan; compatible with SonarHub, BSM-3, BSM-2, BSM-1

Physical

Dimensions (W x H x D)345 x 215 x 106 mm
Weight (display only)3.264 kg
Mounting typeSupplied bracket, panel or flush mount

Approvals

Warranty2 years

No videos available for this product.

What size and resolution is the NSS12 evo2 screen?
It has a 12-inch multi-touch display with a 1280 x 800 pixel (WXGA) resolution and 1200 nits brightness, operated by touchscreen, keypad and rotary control.
Does it have built-in sonar?
Yes. It has an integrated CHIRP echosounder with DownScan and StructureScan/ForwardScan support, and is compatible with the SonarHub and BSM-3, BSM-2 and BSM-1 sonar modules.
Does the NSS12 evo2 have a built-in GPS?
Yes. It has an internal 10 Hz, 32-channel GPS receiver with WAAS, EGNOS and MSAS support.
How does it network with other devices?
It has two Ethernet ports (5-pin), a NMEA 2000 connection (Micro-C, 1 LEN), an HDMI output and is compatible with the external WIFI-1 module.
What is the waterproof rating and supply voltage?
The unit is rated to IPX6 and IPX7 and runs on a 9 to 31.2 V DC supply, drawing up to 30 W.
What warranty does it come with?
The NSS12 evo2 is supplied with a 2 year warranty.
