This product has been discontinued by Simrad and is no longer available to buy.
Simrad

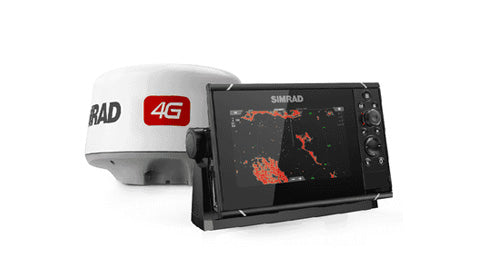

Simrad NSS evo3 7 4G Radar Bundle
Description
Navigate, take control, and enjoy an unprecedented level of built-in functionality with NSS evo3. SolarMAX™ HD display technology offers exceptional clarity and ultra-wide viewing angles, combined with an all-weather touchscreen and expanded keypad for total control in all conditions. Cruise confidently with ForwardScan sonar, or fish easier with StructureScan® HD imaging and dual-channel CHIRP-enabled Broadband Sounder™ technology. Built-in Wi-Fi enables access to GoFree® online services, and delivers smartphone monitoring and tablet control to extend your display's reach well beyond the helm. The NSS7 evo3 packs a high-definition 7-inch display into a compact form that's great for centre consoles and other powerboats. Includes Broadband 4G™ radar.
PRODUCT DETAILS
- Bundle of the NSS7 evo3 multifunction display and Simrad Broadband 4G radar dome
- SolarMAX HD display with 1200 nits brightness and ultra-wide viewing angles
- Hybrid all-weather touchscreen plus expanded keypad control
- Broadband 4G radar with dual-range, InstantOn and low emissions
- Built-in GPS, CHIRP sounder, Wi-Fi and NMEA 2000 networking
- Includes radar interconnection cable
- NSS7 evo3 display unit with sun cover, bezel and mounting hardware
- Simrad Broadband 4G radar dome
- Radar cable
- Power cable
- Documentation pack
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Screen size | 7 inch |
| Resolution | 1024 x 600 px |
| Display type | High Visibility SolarMAX HD IPS optically bonded TFT |
| Brightness | 1200 nits |
| Touchscreen | Full multi-touch screen |
| Viewing angles | 80 degrees top/bottom, 80 degrees left/right |
Electrical
| Supply voltage | 12/24 V DC (10 to 31.2 V DC min-max) |
| Maximum power consumption | 20 W (plus/minus 4 W) |
| Fuse rating | 3 A |
Environment
| Operating temperature range | -15 C to +55 C |
| Storage temperature range | -20 C to +60 C |
| Waterproof rating | IPX6 and IPX7 |
| Shock and vibration | 100,000 cycles of 20 G |
Connectivity
| GPS receiver | Built-in 10 Hz high-speed update; WAAS, MSAS, EGNOS, GLONASS |
| Ethernet | 1 port |
| NMEA 2000 | 1 port (Micro-C) |
| NMEA 0183 | 1 input/output (4800-38400 baud) via optional adaptor cable |
| Wi-Fi | Internal 802.11 b/g/n |
| Bluetooth | Internal |
| Video input | 2x composite video (RCA) via optional adaptor cable |
| Data card slots | 2 slots (microSD) |
Sonar
| Sonar frequency | 40-250 kHz, 455-800 kHz |
| Sonar output power | 1 kW RMS |
Physical
| Dimensions (W x H x D) | 263 x 160 x 65 mm |
| Weight (display only) | 1.1 kg |
| Compass safe distance | 50 cm |
| Mounting type | Supplied bracket or panel mount |
Approvals
| Warranty | 3 years |
| Compliance | FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM |
