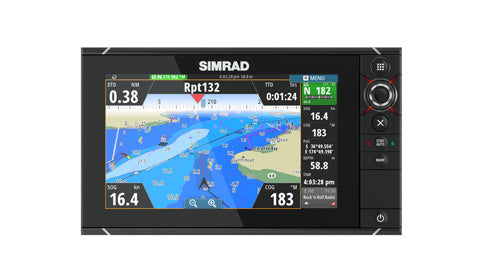

Simrad NSS9 evo2 Combo 9-inch Multi-function Display
Manufacturer Part Number:
000-11190-001
Manufacturer Part Number:
000-11190-001
The NSS9 evo2 combines an easy-to-use, 9-inch chartplotter/multifunction display with built-in GPS positioning, StructureScan® HD, CHIRP-enabled broadband sonar, and powerful expansion capabilities.
Standalone in a centre console or fully integrated in a modern glass bridge, the widescreen NSS9 evo2 is well suited to sportfishing and power boats.
Home or Marina Delivery
Pick up at Hamble
More Information
NSS evo2 Multifunction Display Navigation
NSS evo2 In the Box
1 NSS evo2 display
2 Sun cover
3 Bezel trim (black and silver)
4 Power cable
5 Self tapping pozi screws, 4Gx1/2” (x4 for 7, x8 for 9/12, & x12 for 16 model)
6 NMEA 2000 dust cap
7 Video/NMEA 0183 dust cap
8 HDMI dust cap
9 Ethernet dust cap (x2 for NSS12/16 evo2)
10 Sonar dust cap
11 StructureScan dust cap
12 Document pack (includes: installation manual, user manual, quick start guide,
templates, and warranty card)
13 decal (self adhesive)
14 foam gasket (self adhesive)
15 Bracket (gimbal type, all sizes except NSS16 evo2)
16 Bracket knobs (all sizes except NSS16 evo2)
17 Self tapping pozi screws for bracket, 14Gx1” (all except NSS16 evo2)
NSS evo2 7 Dimensions
Product Width 231.5mm / 9.11″
Product Height 147.2mm / 5.8″
Product Depth 105.6mm / 4.16″
NSS evo2 9 Dimensions
Product Width 279.4mm / 11.0″
Product Height 163.6mm / 6.44″
Product Depth 106.6mm / 4.20″
NSS evo2 12 Dimensions
Product Width 345mm / 13.58″
Product Height 215mm / 8.46″
Product Depth 105.6mm / 4.16″
NSS evo2 16 Dimensions
Product Width 429.1mm / 16.89″
Product Height 245.7mm / 9.67″
Product Depth 105.6mm / 4.15″
