Discontinued
This product has been discontinued by Simrad and is no longer available to buy.
Simrad

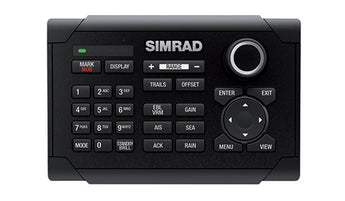

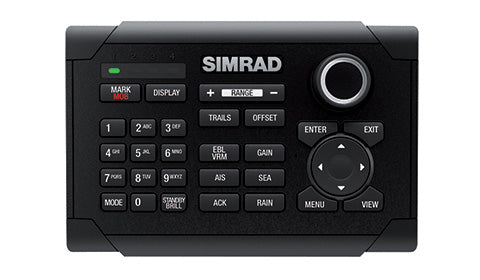

Simrad O2000 Wired Remote Radar Controller
000-12189-001
The O2000 Controller provides an extended keypad and rotary dial interface for Simrad R2009 and R3016 radar control units. With quick display switching and an LED active display indicator, one O2000 keypad offers complete control of up to four NMEA 2000 connected radar control units. R3016 users may also pair an O2000 keypad with a secondary monitor, creating a fully functional 'clone' station ideal for dual-helm vessels.
Description
The O2000 Controller provides an extended keypad and rotary dial interface for Simrad R2009 and R3016 radar control units. With quick display switching and an LED active display indicator, one O2000 keypad offers complete control of up to four NMEA 2000® connected radar control units. R3016 users may also pair an O2000 keypad with a secondary monitor, creating a fully functional 'clone’ station ideal for dual-helm vessels.
PRODUCT DETAILS
- Remote keypad and rotary dial for R2009 and R3016 radar control units
- Controls up to four NMEA 2000 connected radar control units
- Quick display switching with LED active-display indicator
- White or red backlight matched to the main control unit
- IPX6 rated for exposed helm installations
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Physical
| Dimensions | 107 mm x 160 mm (H x W) |
| Weight | 0.3 kg |
| Environmental protection | IPX6 |
Power
| Power supply | 12 V DC (Micro-C) |
| Current consumption | Under 100 mA (2 LEN) |
Connectivity
| Network | NMEA 2000 (Micro-C) |
Technical
| Backlight | White or red, matched to main radar control unit |
| Units controlled | Up to 4 radar control units |
No videos available for this product.
No frequently asked questions for this product.
