This product has been discontinued by Simrad and is no longer available to buy.
Simrad
Simrad Halo Radar Pedestal
Description

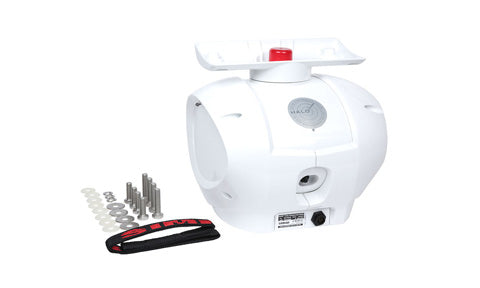

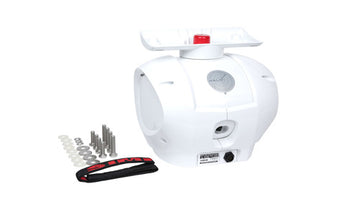

This is the solid-state pedestal for the Simrad Halo open array radar, the 25 W drive unit that carries the open array antenna. Supplied without an antenna, it accepts the 3, 4 or 6 ft Halo array so a system can be built or repaired to suit the vessel. With no magnetron the pedestal is ready to transmit in 16 to 25 seconds from power-on, and antenna rotation is software-controlled at approximately 24 to 48 rpm. It is used together with the RI-12 interface module and weighs 18.75 kg.
PRODUCT DETAILS
- Solid-state 25 W pedestal for the Simrad Halo open array radar
- Accepts the 3, 4 or 6 ft Halo open array antenna (ordered separately)
- No magnetron, ready to transmit in 16-25 seconds from power-on
- Software-controlled rotation, approximately 24 to 48 rpm
- Used with the RI-12 interface module
- Weight 18.75 kg (41.3 lbs)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
No specifications available for this product.
No videos available for this product.
No downloads available for this product.
No frequently asked questions for this product.
