Discontinued
This product has been discontinued by Simrad and is no longer available to buy.
Simrad

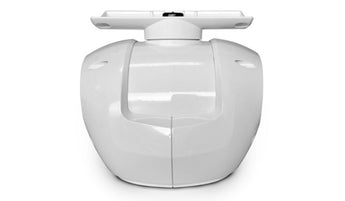

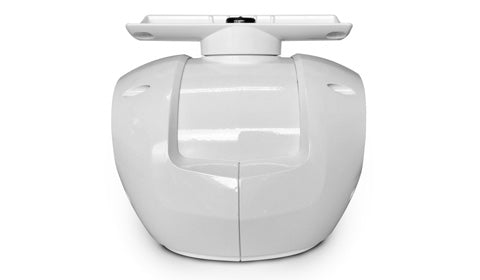

Simrad Pedestal, Radar, Halo-6
000-12590-001
The Simrad Halo-6 radar pedestal is the solid-state drive unit for the Halo open array radar, supplied without an antenna. Magnetron-free for instant readiness, it is used with the RI-12 interface module and weighs 18.75 kg.
Description
This is the solid-state pedestal for the Simrad Halo open array radar, the drive unit that carries the open array antenna. Supplied as a pedestal only, it forms the heart of the Halo open array system when paired with an antenna and the RI-12 interface module. With no magnetron it is ready to transmit in 16 to 25 seconds from power-on, and antenna rotation is software-controlled. It weighs 18.75 kg.
PRODUCT DETAILS
- Solid-state pedestal for the Simrad Halo open array radar (Halo-6)
- Drive unit that carries the open array antenna (antenna ordered separately)
- No magnetron, ready to transmit in 16-25 seconds from power-on
- Used with the RI-12 interface module
- Weight 18.75 kg (41.3 lbs)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Radar Scanner
| Interface | RI-12 |
| Technology | PULSE COMP |
| ARRAY SIZE (INCH/FEET) | 3 / 4 / 6 |
| Max Range (NM) | 48 / 64 / 72 |
| Rotation (RPM) | 24/48 |
| POWER (W) | 25 |
No videos available for this product.
No frequently asked questions for this product.
