This product has been discontinued by Simrad and is no longer available to buy.
Simrad

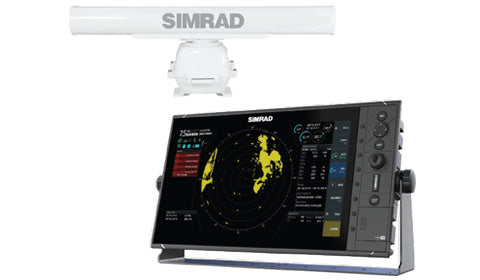

Simrad R3016 10 kW 4 foot antenna radar kit
Description
The Simrad R3016 10 kW 4 ft kit is a complete standalone radar station combining a dedicated 16-inch widescreen R3016 control unit with a 10 kW, 4 ft open-array scanner and a dedicated radar processor. The magnetron X-band scanner delivers long-range detection with a 1.8 degree horizontal beam, while the keypad-driven R3016 head gives full radar control without a chartplotter.
The kit includes the R3016 control unit, 10 kW pedestal and 4 ft antenna, the 10 kW radar processor, a 20 m (66 ft) interconnection cable, a 1.8 m (6 ft) Ethernet cable and a 5-pin yellow to RJ45 adapter cable. Installation must be carried out by a qualified radar technician. This product is discontinued.
PRODUCT DETAILS
- Dedicated 16-inch widescreen radar control unit, no MFD required
- 10 kW magnetron open-array scanner, 4 ft antenna
- Horizontal beam width 1.8 degrees for sharp bearing resolution
- Dedicated 10 kW radar processor with Ethernet output
- Includes R3016 head, scanner, processor, 20 m cable and adapter
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Power
| DC input | 21.6 to 31.2 V DC (24 V systems), 15 A fuse |
Physical
| Scanner mass | 34 kg +/-10% (4 ft) |
Display
| Display size | 16-inch widescreen |
No videos available for this product.
No frequently asked questions for this product.
