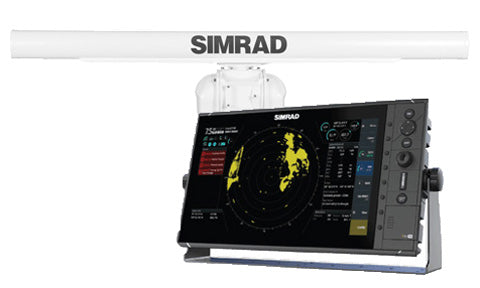

Simrad R3016 25 kW 7 foot antenna radar kit
Manufacturer Part Number:
000-12197-001
Manufacturer Part Number:
000-12197-001
Simrad R3016 25 kW 7 foot antenna radar kit is a dedicated 16" widescreen Radar Control Unit and 25 kW HD Radar. Kit includes R3016 radar control unit, 25 kW pedestal and 4 ft antenna, 25 kW radar processor, Interconnection cable 20m (66 ft), 1.8 m (6 ft) Ethernet cable and 5 pin yellow to RJ45 adapter cable.
Home or Marina Delivery
Pick up at Hamble
More Information
Simrad R3016 Pulse Compression Halo 3 Radar Kit
Simrad R3016 Pulse Compression Halo 4 Radar Kit
Simrad R3016 Halo 6 Radar Kit
Simrad R3016 10 kW 4 foot antenna radar kit
Simrad R3016 10 kW 6 foot antenna radar kit
Simrad R3016 25 kW 7 foot antenna radar kit
R2009 9 Dimensions
Product Width 224mm / 8.81″
Product Height 260mm / 10.23″
Product Depth 67mm / 2.63″
R3016 16 Dimensions
Product Width 455mm / 17.91″
Product Height 280mm / 11.02″
Product Depth 67mm / 2.63″
In the Box
1 Control unit
2 Panel mounting gasket
3 Sun cover
4 Bezels
5 Gimbal inserts (R3016 only)
6 Power cable
7 Knobs
8 Fixing screws
9 Documentation pack
10 U-brackets
11 U-bracket straps (one for R2009, two for R3016)
10kW Scanner Dimensions
Product Width (4ft) 1285mm / 50.59″ (6ft) 1880mm / 74.02″
Product Height 457.4mm / 18.01″
25 kW Scanner Dimensions
Product Width 2254mm / 88.74″
Product Height 536mm / 21.10″
Radar Processor Dimensions
Product Width 197.5mm / 7.77″
Product Height 57.1mm / 2.25″
Product Depth 141mm / 5.55″
