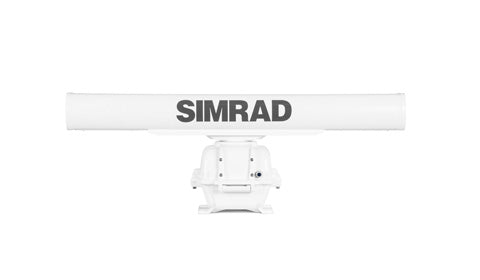

Simrad TXL-10S-4 Open array low emission radar kit, 20m cable, Processor
Description
The Simrad TXL-10S-4 is a 10 kW open-array radar kit built around a 4 ft antenna on a compact pedestal, delivering long-range detection and excellent target discrimination for offshore cruisers and go-fast sportfishing boats. The magnetron X-band scanner pairs with a dedicated 10 kW radar processor that connects to compatible Simrad multi-function displays over Ethernet.
The kit includes the 4 ft scanner, the 10 kW radar processor, a 20 m antenna cable, a 1.8 m (6 ft) yellow Ethernet cable and an RJ45 to 5-pin yellow Ethernet adapter. Installation must be carried out by a qualified radar technician. This product is discontinued.
PRODUCT DETAILS
- 10 kW magnetron open-array radar, 4 ft antenna
- High target discrimination for offshore and sportfishing use
- Dedicated 10 kW radar processor with Ethernet output
- Horizontal beam width 1.8 degrees for sharp bearing resolution
- Includes 4 ft scanner, processor, 20 m cable and Ethernet adapter
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Radar Scanner
| Antenna | 4 ft open array (pedestal NKE-2103-4) |
| Transmitter | Magnetron (NJRC MAF1565N) |
| Transmitter frequency | 9410 +/-30 MHz (X-band) |
| Peak power output | 10 kW |
| Horizontal beam width | 1.8 degrees (-3 dB) |
| Vertical beam width | 20 degrees (-3 dB) |
| Rotation | 27 rpm (min 20 rpm at 100 knots) |
| Swing circle diameter | 1320 mm (4 ft) |
Power
| DC input | 21.6 to 31.2 V DC (24 V systems), 15 A fuse |
| Power consumption | 230 W max at maximum wind velocity |
Physical
| Scanner mass | 34 kg +/-10% (4 ft) |
| Scanner height | 458 mm |
| Waterproof rating | IPX6 |
| Operating temperature | -25 to +55 C |
Connectivity
| Scanner cable | 20 m supplied; 30 m maximum |
| Display interface | Ethernet to Simrad MFD via RJ45 to 5-pin adapter |
