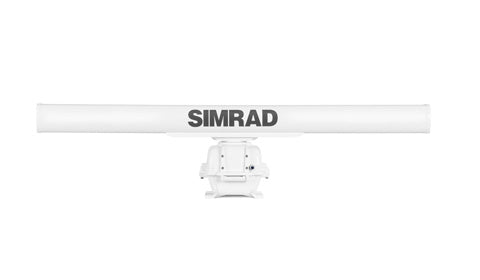

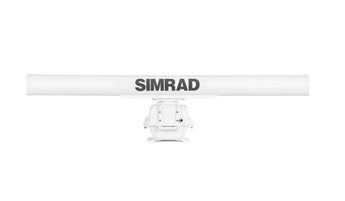

Simrad TXL-10S-6 open array low emission radar kit 20m Cable
Description
The Simrad TXL-10S-6 is a 10 kW open-array radar kit with a 6 ft antenna, whose longer array narrows the horizontal beam to 1.2 degrees for sharper bearing resolution and better target separation than the 4 ft version. The magnetron X-band scanner pairs with a dedicated 10 kW radar processor that connects to compatible Simrad multi-function displays over Ethernet.
The kit includes the 6 ft scanner, the 10 kW radar processor, a 20 m antenna cable, a 1.8 m (6 ft) yellow Ethernet cable and an RJ45 to 5-pin yellow Ethernet adapter. Installation must be carried out by a qualified radar technician. This product is discontinued.
PRODUCT DETAILS
- 10 kW magnetron open-array radar, 6 ft antenna
- Narrow 1.2 degree horizontal beam for superior target separation
- Dedicated 10 kW radar processor with Ethernet output
- Built for offshore cruising and sportfishing range
- Includes 6 ft scanner, processor, 20 m cable and Ethernet adapter
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Radar Scanner
| Antenna | 6 ft open array (pedestal NKE-2103-6) |
| Transmitter | Magnetron (NJRC MAF1565N) |
| Transmitter frequency | 9410 +/-30 MHz (X-band) |
| Peak power output | 10 kW |
| Horizontal beam width | 1.2 degrees (-3 dB) |
| Vertical beam width | 20 degrees (-3 dB) |
| Rotation | 27 rpm (min 20 rpm at 100 knots) |
| Swing circle diameter | 1910 mm (6 ft) |
Power
| DC input | 21.6 to 31.2 V DC (24 V systems), 15 A fuse |
| Power consumption | 230 W max at maximum wind velocity |
Physical
| Scanner mass | 36 kg +/-10% (6 ft) |
| Scanner height | 458 mm |
| Waterproof rating | IPX6 |
| Operating temperature | -25 to +55 C |
Connectivity
| Scanner cable | 20 m supplied; 30 m maximum |
| Display interface | Ethernet to Simrad MFD via RJ45 to 5-pin adapter |
