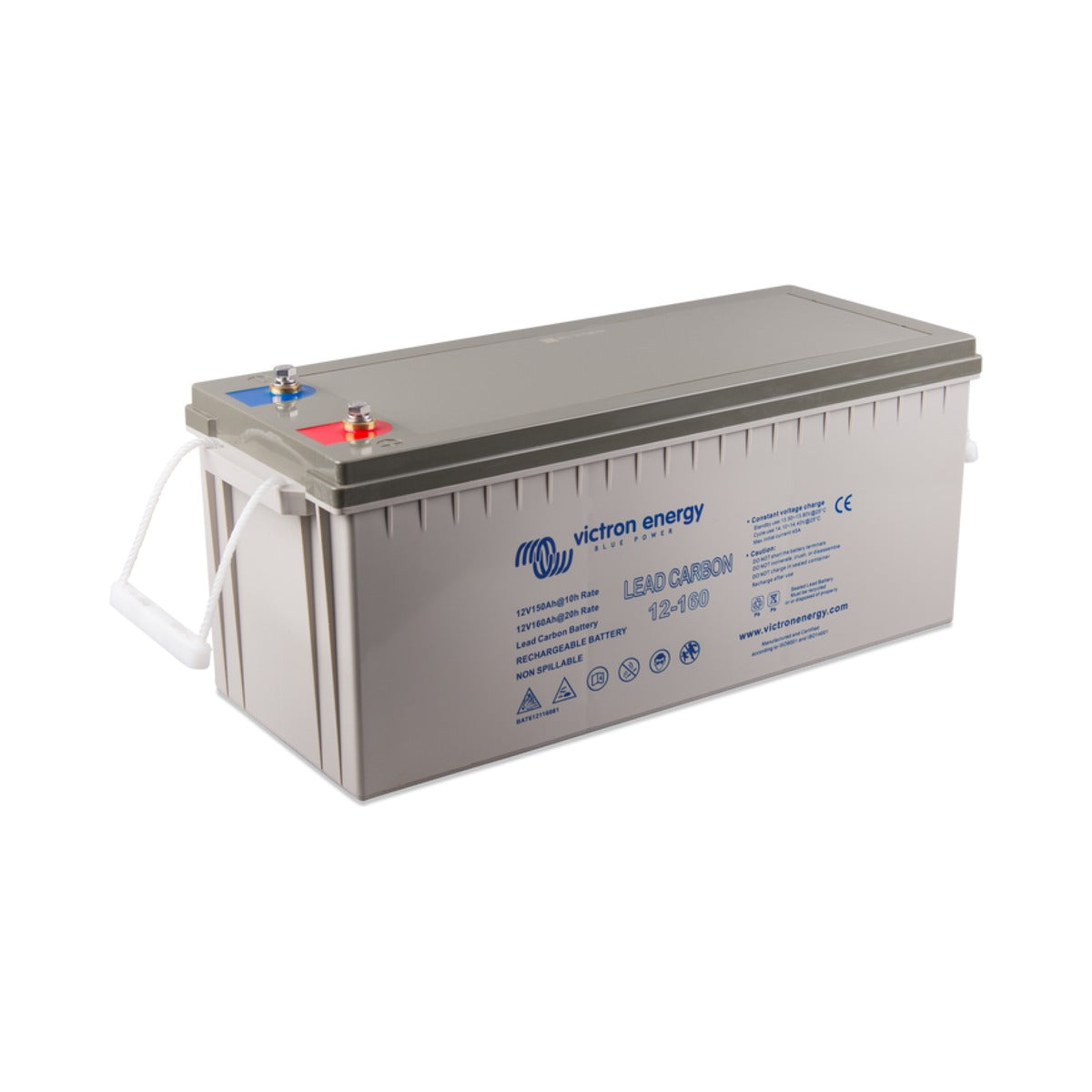

Victron Lead Carbon Battery 12V/160Ah
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron 12V 160Ah Lead Carbon battery is a sealed lead-acid battery whose negative plate active material is replaced by a lead carbon composite. This reduces sulphation and improves charge acceptance, giving better partial state-of-charge performance, more cycles and higher efficiency than a conventional VRLA battery.
The chemistry suits marine and off-grid installations that are not always returned to a full charge, such as boats relying on solar or wind at anchor. A lower charge voltage improves efficiency and reduces corrosion of the positive plate. This larger block is rated at 160Ah at the 20-hour rate (150Ah at C10, 138Ah at C5), making it suitable for substantial house banks.
Victron testing confirms at least 500 cycles at 100% depth of discharge, around 1000 cycles at 60% and 1400 at 40%, so shallower cycling considerably extends life. Charge with a Victron charger set to the recommended lead carbon voltages.
PRODUCT DETAILS
- Lead carbon chemistry for superior partial state-of-charge operation
- 12V nominal, 160Ah at C20 (150Ah at C10, 138Ah at C5)
- Resists sulphation and accepts charge more readily than standard VRLA
- Cycle life: at least 500 at 100% DoD, 1000 at 60%, 1400 at 40%
- Lower charge voltage improves efficiency and reduces positive-plate corrosion
- Sealed construction with M8 insert terminals
- Well suited to solar and wind systems that cycle in partial state of charge
- Recommended charge: 14.1-14.4V absorption, 13.5-13.8V float
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Technology | Lead Carbon |
| Nominal voltage | 12 V |
| Rated capacity (C20) | 160 Ah |
| Terminals | M8 insert |
| Weight | 55 kg |
Capacity
| Capacity at C5 | 138 Ah |
| Capacity at C10 | 150 Ah |
| Capacity at C20 | 160 Ah |
| Cold cranking amps (CCA) | 600 A |
| Reserve capacity | 290 min |
Charging
| Absorption voltage | 14.1 - 14.4 V |
| Float voltage | 13.5 - 13.8 V |
| Storage voltage | 13.2 - 13.5 V |
Cycle life
| Cycle life at 100% DoD | >= 500 cycles |
| Cycle life at 60% DoD | >= 1000 cycles |
| Cycle life at 40% DoD | >= 1400 cycles |
Physical
| Dimensions (l×w×h) | 532 x 207 x 226 mm |
