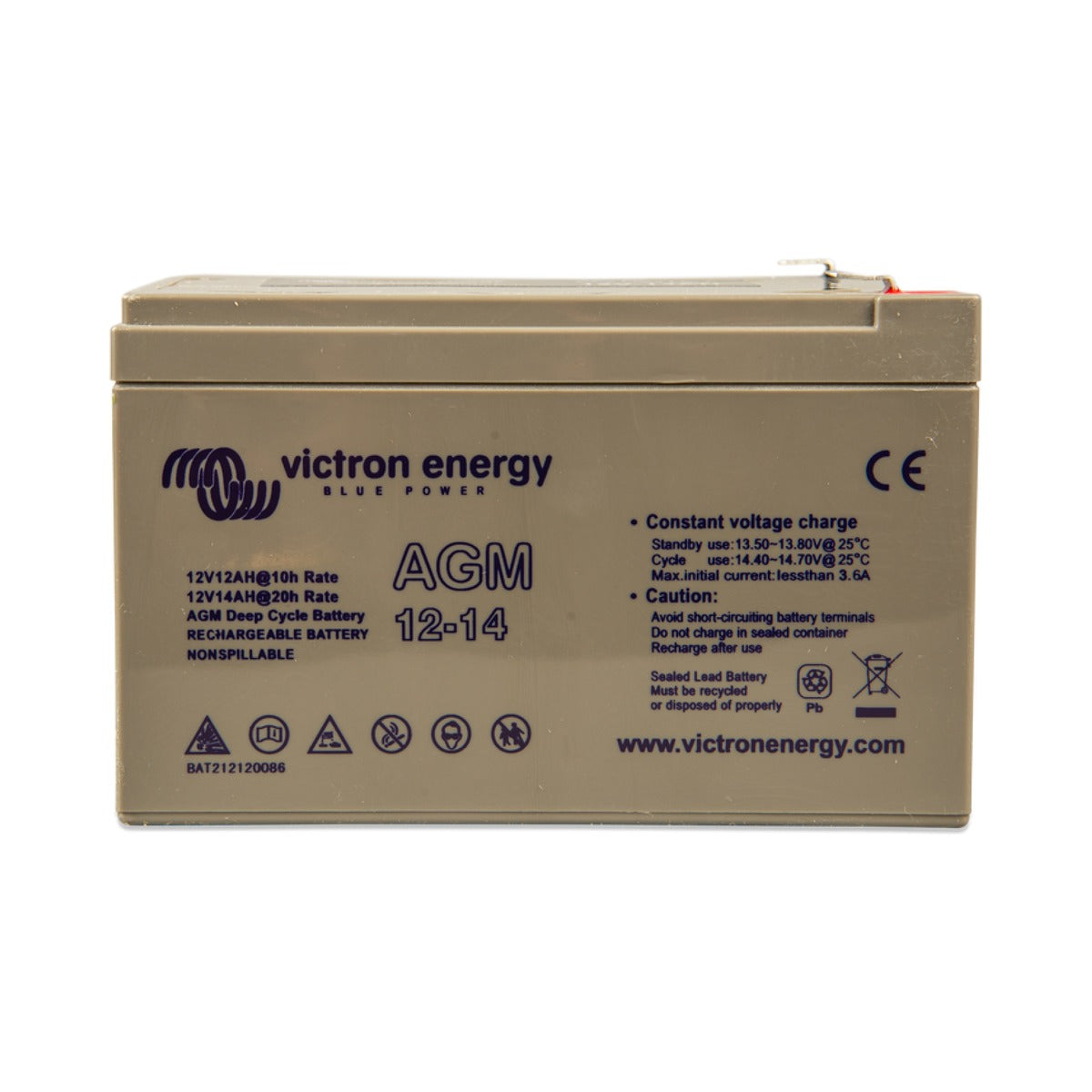

Victron AGM Deep Cycle Battery 12V/14Ah Victron AGM Deep Cycle Battery 12V/14Ah
Victron AGM Deep Cycle Battery 12V/14Ah

Victron

Victron AGM Deep Cycle Battery 12V/14Ah

£45.60
Tax included.
BAT212120086
12V 14Ah sealed AGM deep cycle battery from Victron Energy. Maintenance-free VRLA build with low internal resistance and low self-discharge, suited to small onboard circuits and standby power.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Victron 12V/14Ah AGM Deep Cycle battery is a sealed valve-regulated lead-acid (VRLA) battery using absorbent glass mat technology, in which the electrolyte is immobilised in a glass-fibre mat between the plates. The result is a maintenance-free battery that can be installed in most orientations without spillage.

Its low internal resistance gives dependable performance under both high-current bursts and sustained deep-cycle use. The 14Ah rating at the 20 hour rate makes it well suited to small instrument panels, lighting circuits, and standby supplies on board.

High-purity materials and lead-calcium grids hold self-discharge below 2% per month at 20°C, allowing long storage between charges when kept cool. Limiting repeated deep discharges helps the battery reach its full service life.

PRODUCT DETAILS

  • Sealed maintenance-free VRLA AGM construction
  • 12V nominal, 14Ah rated capacity at the 20 hour rate (C20)
  • Low internal resistance for good high-current performance
  • Self-discharge below 2% per month at 20°C
  • Cycle design life of 400 cycles at 80% depth of discharge
  • Float design life of 7 to 10 years at 20°C
  • Copper terminals; 151 x 98 x 101 mm body, 4.4 kg

No compatible transducers listed for this product.

No spares or accessories listed for this product.

Victron SmartShunt 500A Battery Monitor

Victron SmartShunt 500A Battery Monitor

Victron BMV-712 Smart Battery Monitor

Victron BMV-712 Smart Battery Monitor

Victron Cerbo GX MK2

Victron Cerbo GX MK2

Key specifications

TechnologyFlat plate AGM (VRLA)
Nominal voltage12 V
Rated capacity (C20)14 Ah
TerminalsCopper
Weight4.4 kg

Capacity

Rated capacity at 20h discharge14 Ah

Charging

Absorption voltage14.2 - 14.6 V
Float voltage13.5 - 13.8 V
Storage voltage13.2 - 13.5 V
Maximum charge current0.2 C
Temperature compensation-24 mV/°C

Cycle life

Float design life at 20°C7 - 10 years
Cycle life at 80% DoD400 cycles
Cycle life at 50% DoD600 cycles
Cycle life at 30% DoD1500 cycles
Self-discharge at 20°C< 2 %/month

Physical

Dimensions (l×w×h)151 x 98 x 101 mm

No videos available for this product.

Does this battery need maintenance or topping up?
No. It is a sealed VRLA AGM battery and is maintenance free for life, with the electrolyte absorbed in a glass-fibre mat.
What does the 14Ah rating refer to?
It is the rated capacity at a 20 hour discharge (the C20 rate) at 25°C. Effective capacity reduces as the discharge current increases.
What is the cycle life?
Victron quotes a cycle design life of 400 cycles at 80% depth of discharge, 600 cycles at 50% and 1500 cycles at 30% for this AGM Deep Cycle range.
What charge voltages does Victron recommend?
For cyclic use, an absorption voltage of 14.2 to 14.6 V, a float voltage of 13.5 to 13.8 V and a storage voltage of 13.2 to 13.5 V for a 12V AGM Deep Cycle battery.
