Victron AGM Deep Cycle Battery 12V/22Ah Victron AGM Deep Cycle Battery 12V/22Ah
Victron AGM Deep Cycle Battery 12V/22Ah

Victron

Victron AGM Deep Cycle Battery 12V/22Ah

£64.80
Tax included.
BAT212200084

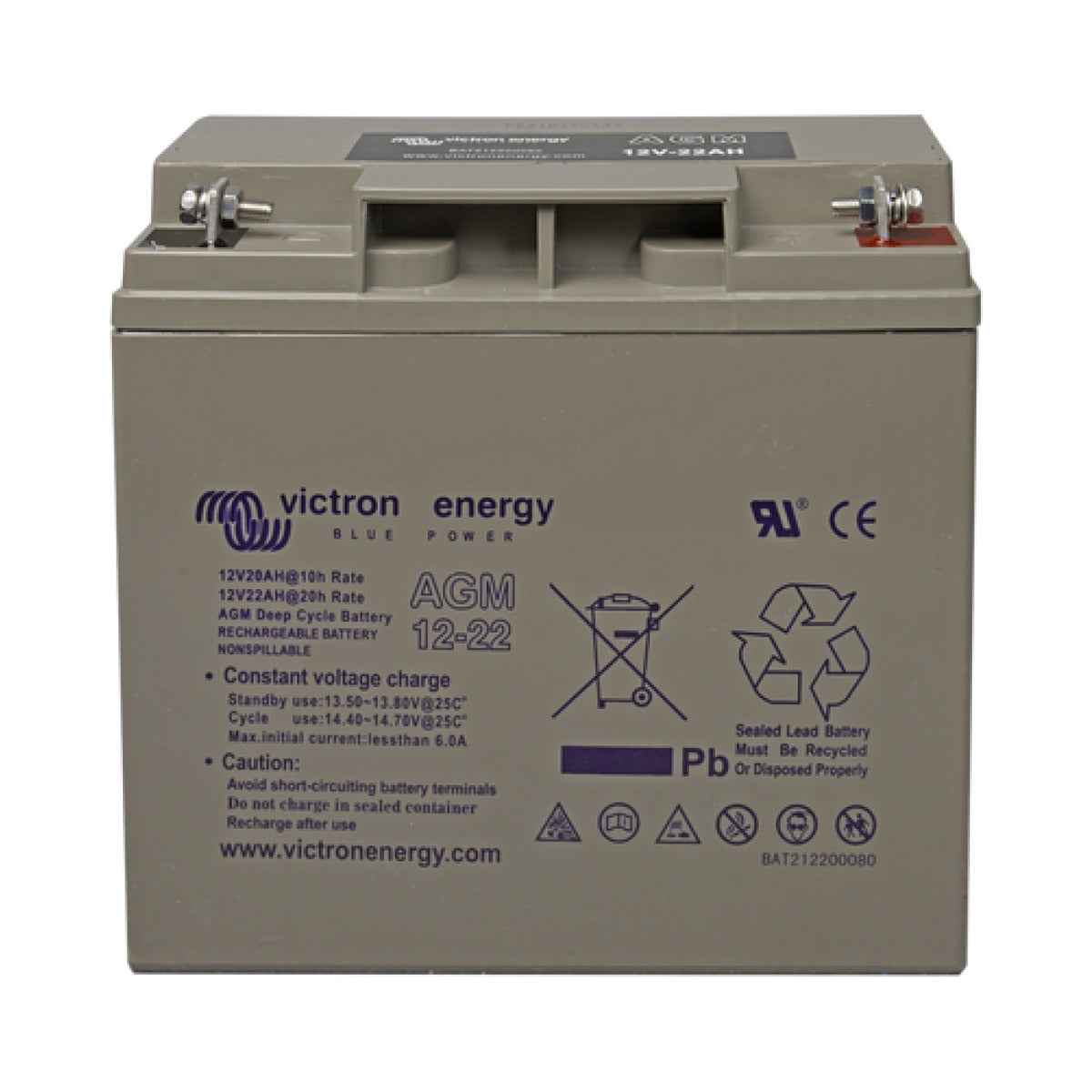

12V 22Ah sealed AGM deep cycle battery from Victron Energy. Maintenance-free VRLA design with low internal resistance and low self-discharge, suited to auxiliary marine electronics and small house loads.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Victron 12V/22Ah AGM Deep Cycle battery is a sealed valve-regulated lead-acid (VRLA) battery built with absorbent glass mat technology. The electrolyte is absorbed into a glass-fibre mat between the plates, making the battery maintenance free and tolerant of varied mounting positions.

AGM construction offers very low internal resistance, so the battery copes well with high-current demands as well as regular cycling. At 22Ah it is a useful size for auxiliary electronics, small house loads, and backup duties on smaller craft.

Lead-calcium grids and high-purity materials keep self-discharge below 2% per month at 20°C, supporting long periods of storage between charges in cool conditions. Avoiding deep, prolonged discharges extends the working life of the battery.

PRODUCT DETAILS

  • Sealed maintenance-free VRLA AGM construction
  • 12V nominal, 22Ah rated capacity at the 20 hour rate (C20)
  • Low internal resistance for good high-current performance
  • Self-discharge below 2% per month at 20°C
  • Cycle design life of 400 cycles at 80% depth of discharge
  • Float design life of 7 to 10 years at 20°C
  • Copper terminals; 181 x 77 x 167 mm body, 5.8 kg

No compatible transducers listed for this product.

No spares or accessories listed for this product.

Victron SmartShunt 500A Battery Monitor

Victron SmartShunt 500A Battery Monitor

Victron BMV-712 Smart Battery Monitor

Victron BMV-712 Smart Battery Monitor

Victron Cerbo GX MK2

Victron Cerbo GX MK2

Key specifications

TechnologyFlat plate AGM (VRLA)
Nominal voltage12 V
Rated capacity (C20)22 Ah
TerminalsCopper
Weight5.8 kg

Capacity

Rated capacity at 20h discharge22 Ah

Charging

Absorption voltage14.2 - 14.6 V
Float voltage13.5 - 13.8 V
Storage voltage13.2 - 13.5 V
Maximum charge current0.2 C
Temperature compensation-24 mV/°C

Cycle life

Float design life at 20°C7 - 10 years
Cycle life at 80% DoD400 cycles
Cycle life at 50% DoD600 cycles
Cycle life at 30% DoD1500 cycles
Self-discharge at 20°C< 2 %/month

Physical

Dimensions (l×w×h)181 x 77 x 167 mm

No videos available for this product.

Does this battery need maintenance or topping up?
No. It is a sealed VRLA AGM battery, maintenance free for life, with the electrolyte held in a glass-fibre mat between the plates.
What does the 22Ah rating refer to?
It is the rated capacity at a 20 hour discharge (the C20 rate) at 25°C. Effective capacity falls as the discharge current rises.
What is the cycle life?
Victron quotes 400 cycles at 80% depth of discharge, 600 cycles at 50% and 1500 cycles at 30% for this AGM Deep Cycle range.
How long can it be stored without charging?
Self-discharge is below 2% per month at 20°C, so it can be stored for up to a year without recharging if kept cool.
