Victron

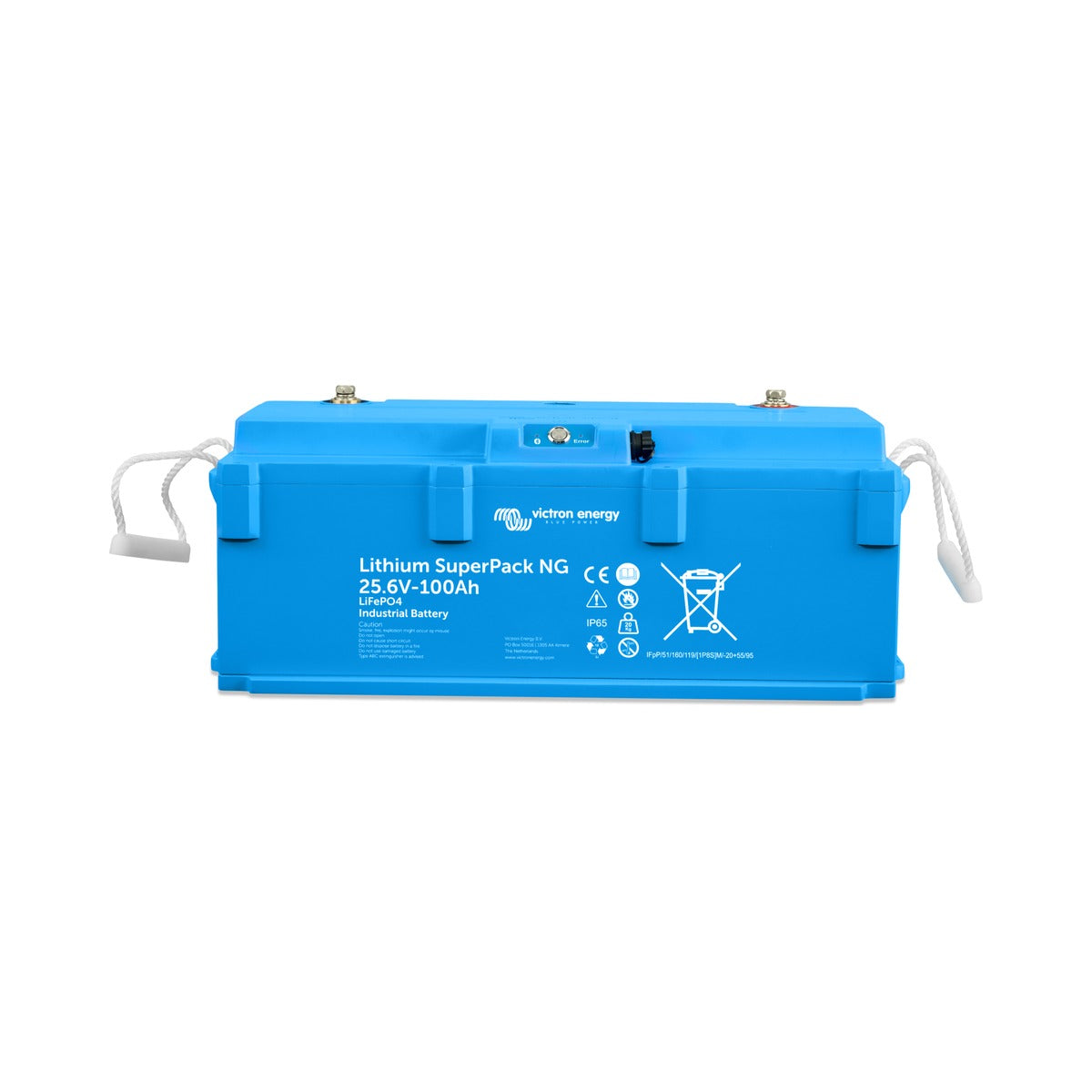

Victron Lithium SuperPack NG 25.6V/100Ah
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Lithium SuperPack NG 25.6V 100Ah is the 24 V model in the next-generation SuperPack range, a LiFePO4 (lithium iron phosphate) battery with an integrated BMS, battery monitor, on/off switch, Bluetooth, and self-heating. At a nominal 25.6 V and 100 Ah it stores 2560 Wh, making it a drop-in lithium upgrade for 24 V house banks on larger vessels.
Bluetooth Smart provides wireless configuration, monitoring, and firmware updates through the VictronConnect app, with Instant Readout for state of charge, temperature, and alarms without connecting. The self-heating function allows safe charging in cold conditions: below 0°C charging is suspended while the heater warms the cells, then resumes automatically. The battery supports 200 A continuous discharge and 100 A continuous charging, with an External Feedback Signal output for redundant system protection or to trigger a charger.
Round-trip efficiency is around 93 per cent, and cycle life reaches 2500 cycles at 80 per cent depth of discharge, 3000 at 70 per cent, and 5000 at 50 per cent. Batteries can be paralleled without limit, though total system current should not exceed what a single battery can safely interrupt; series connection is not permitted. The pack weighs 20.5 kg and is rated IP65.
PRODUCT DETAILS
- Nominal 25.6 V for 24 V systems, storing 2560 Wh
- Bluetooth Smart for monitoring, configuration, and firmware updates via VictronConnect, with Instant Readout
- Integrated BMS, battery monitor, and on/off push button; no external BMS needed
- Self-heating function for safe charging in cold conditions; charging resumes automatically once warm
- 200 A maximum continuous discharge and 100 A maximum charge current
- Round-trip efficiency of approximately 93 per cent
- Cycle life of 2500 at 80 per cent DoD, 3000 at 70 per cent, and 5000 at 50 per cent depth of discharge
- IP65 rated with an External Feedback Signal output; parallel connection without limit
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Nominal voltage | 25.6 V |
| Nominal capacity | 100 Ah |
| Nominal energy | 2560 Wh |
| Maximum continuous discharge current | 200 A |
| Bluetooth | Yes, VictronConnect App |
| Protection class (IP) | IP65 |
Electrical
| Round trip efficiency | 93 % |
| Internal resistance | 4 mΩ |
Discharge
| Recommended continuous discharge current | 50 A |
| End of discharge voltage | 22.4 V |
Charge
| Charge voltage | 28 V recommended (range 27 V to 28.4 V) |
| Float voltage | 27 V |
| Maximum charge current | 100 A |
| Recommended charge current | 30 A |
Cycle life
| Cycle life at 80% DoD | 2500 cycles |
| Cycle life at 70% DoD | 3000 cycles |
| Cycle life at 50% DoD | 5000 cycles |
BMS / protection
| Battery BMS interface | External Feedback Signal (EFS), limited to 250 mA |
| Alarm feature | Software protections: overvoltage, undervoltage, overtemperature, undertemperature, overcurrent; hardware short-circuit protection above 800 A |
Operating conditions
| Operating temperature (discharge) | -30°C to +60°C |
| Operating temperature (charge) | -30°C to +60°C (below 0°C charging is suspended while the self-heating function warms the cells) |
| Storage temperature | Recommended 10°C to 35°C; expanded -40°C to +65°C |
| Humidity (non-condensing) | 90 % |
Physical
| Power connection / terminals | M8 female threaded insert, 20 mm, including nut screws |
| Dimensions (h×w×d) | 466 x 198 x 173 mm (datasheet L x W x H; add 15 mm height for terminal screws) |
| Weight | 20.5 kg |
