Victron

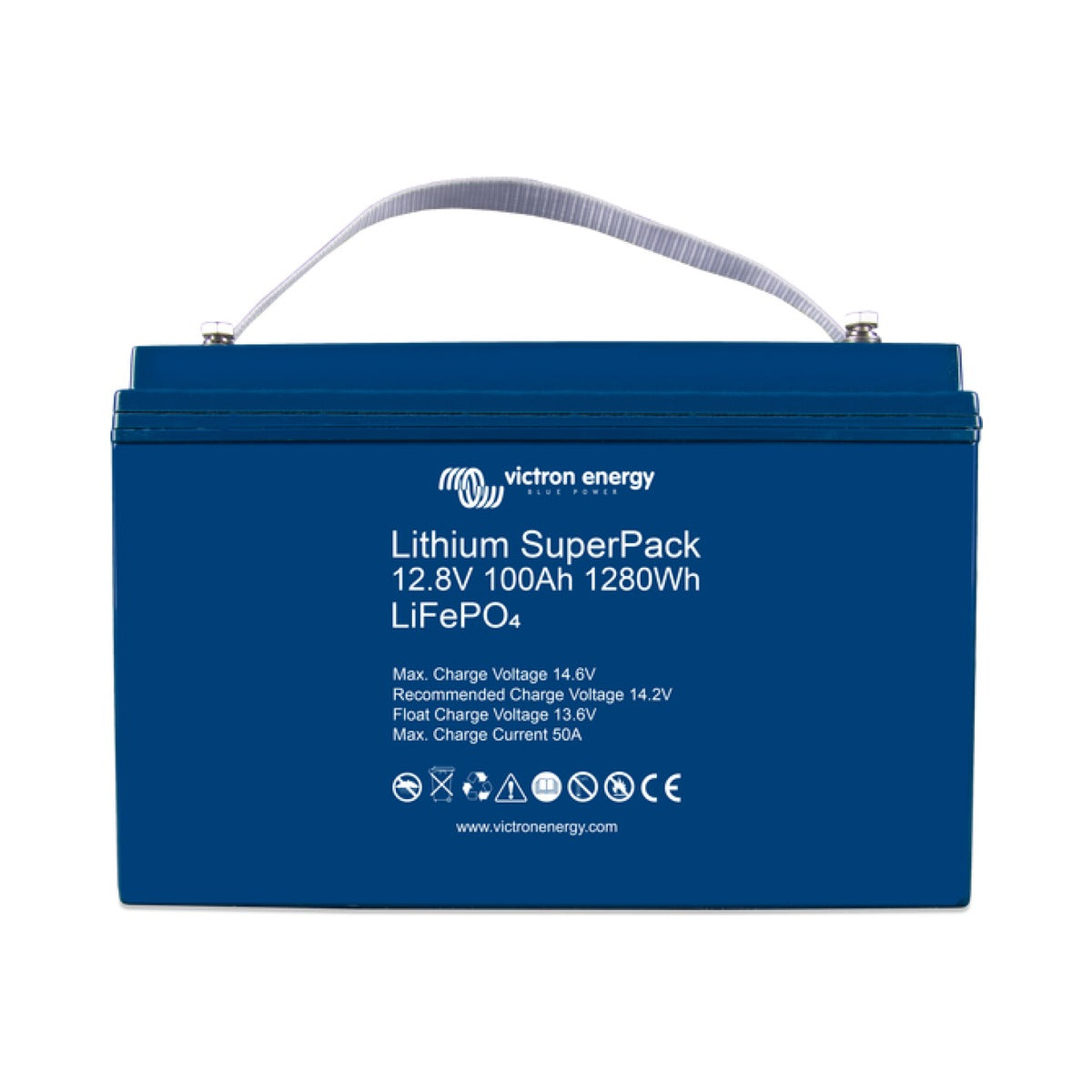

Victron Lithium SuperPack 12.8V/100Ah High Current
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Lithium SuperPack 12.8V 100Ah High Current is the higher-output version of the 100Ah SuperPack, a LiFePO4 (lithium iron phosphate) battery with an integrated battery management system and a built-in safety switch. Its defining feature is current capability: it supports 100 A continuous discharge and a 150 A peak for 10 seconds, alongside a 100 A maximum charge current, which is well above the rest of the standard SuperPack range.
That headroom suits loads that draw heavily for short periods, such as inverters, electric winches, and bow thrusters, where a standard battery would otherwise limit performance. The integrated BMS and switch remove the need for an external BMS or contactor, and the switch disconnects automatically on over-discharge, overcharge, or out-of-range temperature. Round-trip efficiency of around 92 per cent and tolerance of partial states of charge carry over from the rest of the lithium range.
Batteries can be wired in parallel without limit to build a larger bank; series connection is not permitted. The pack weighs 10.5 kg and is rated IP43.
PRODUCT DETAILS
- High current rating: 100 A continuous discharge and 150 A peak for 10 seconds
- 100 A maximum charge current for fast recharging
- LiFePO4 chemistry with an integrated BMS and built-in safety switch, no external BMS needed
- 1280 Wh of usable energy at 10.5 kg
- Round-trip efficiency of approximately 92 per cent
- 2500 cycle life at 80 per cent depth of discharge
- Suited to inverters, electric winches, and bow thrusters that draw heavily for short periods
- Unlimited parallel connection; series connection not allowed; IP43 rated
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Nominal voltage | 12.8 V |
| Nominal capacity | 100 Ah |
| Nominal energy | 1280 Wh |
| Maximum continuous discharge current | 100 A |
| Protection class (IP) | IP43 |
Electrical
| Nominal capacity at 0°C | 80 Ah |
| Round trip efficiency | 92 % |
Discharge
| Peak discharge current (10s) | 150 A |
| End of discharge voltage | 10 V |
Charge
| Charge voltage | 14.2 V to 14.4 V (absorption) |
| Float voltage | 13.5 V |
| Maximum charge current | 100 A |
Cycle life
| Cycle life at 80% DoD | 2500 cycles |
Operating conditions
| Operating temperature (discharge) | -20°C to +50°C |
| Operating temperature (charge) | 0°C to +45°C |
| Storage temperature | -40°C to +65°C |
| Humidity (non-condensing) | 95 % |
Physical
| Power connection / terminals | M8 threaded inserts |
| Dimensions (h×w×d) | 215 x 306 x 169 mm |
| Weight | 10.5 kg |
