Victron

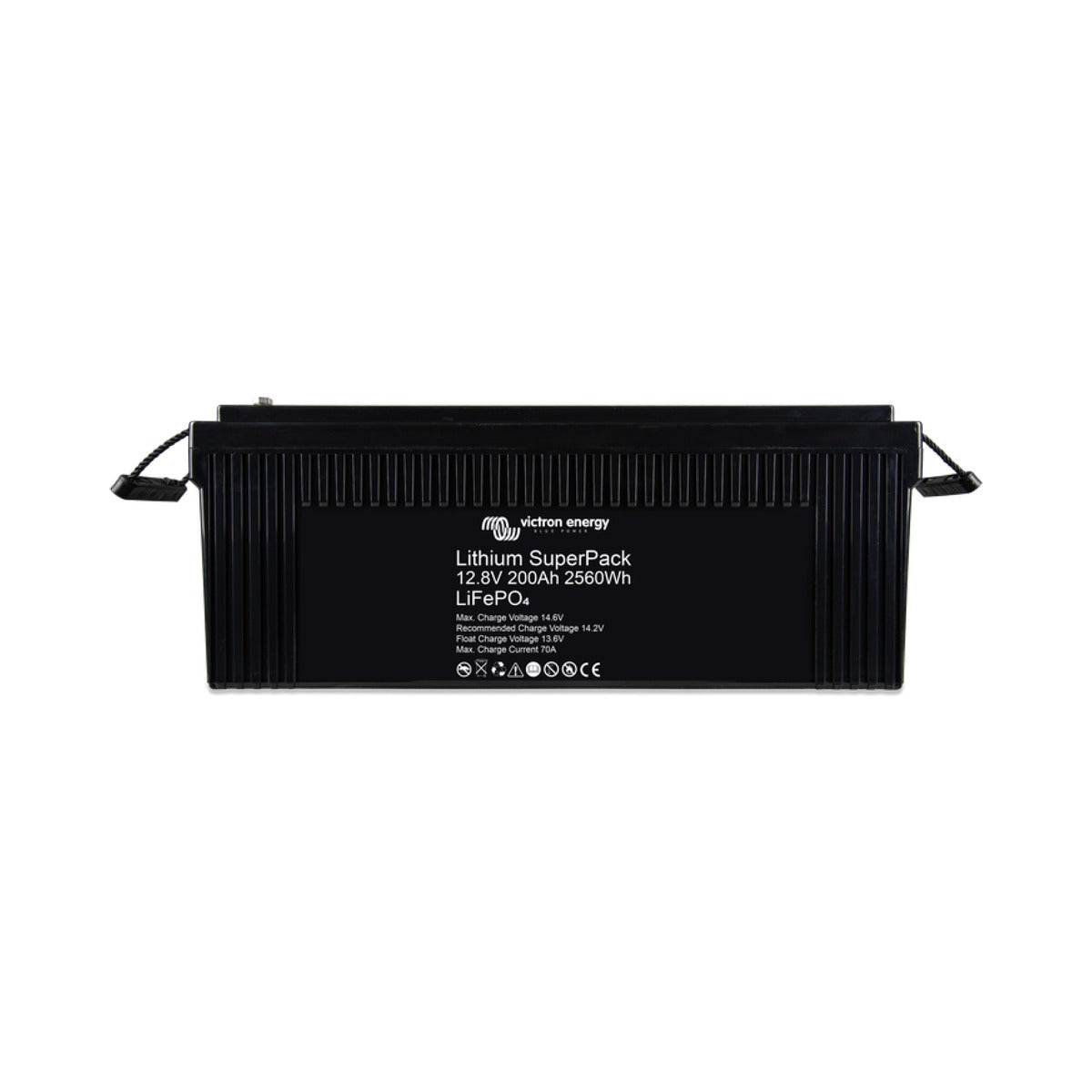

Victron Lithium SuperPack 12.8V/200Ah
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Lithium SuperPack 12.8V 200Ah is the largest single battery in the standard SuperPack range, a LiFePO4 (lithium iron phosphate) unit with an integrated battery management system and a built-in safety switch. Because the BMS and switch are inside the case, it installs without an external BMS or contactor, and the internal switch disconnects automatically on over-discharge, overcharge, or out-of-range temperature.
At 2560 Wh it provides substantial usable energy for a 12 V house bank, supporting larger inverter, refrigeration, and domestic loads aboard a boat. Lithium chemistry tolerates partial states of charge without the sulfation that degrades lead-acid, and round-trip efficiency of around 92 per cent makes it well suited to solar and limited-charging installations. The pack weighs 21 kg, around a third of an equivalent lead-acid bank.
Batteries can be wired in parallel without limit for a larger bank; series connection is not permitted. The pack is rated IP43. Note the mounting restriction for this model: it must not be laid on its long side with the positive terminal at the bottom.
PRODUCT DETAILS
- LiFePO4 chemistry with an integrated BMS and built-in safety switch, no external BMS needed
- 2560 Wh of usable energy, the largest single pack in the standard SuperPack range
- Around 21 kg, roughly a third the weight of an equivalent lead-acid bank
- Round-trip efficiency of approximately 92 per cent
- 2500 cycle life at 80 per cent depth of discharge
- 70 A maximum continuous charge and discharge current, 100 A peak discharge for 10 seconds
- Unlimited parallel connection; series connection not allowed
- IP43 rated; must not be laid on its long side with the positive terminal at the bottom
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Nominal voltage | 12.8 V |
| Nominal capacity | 200 Ah |
| Nominal energy | 2560 Wh |
| Maximum continuous discharge current | 70 A |
| Protection class (IP) | IP43 |
Electrical
| Nominal capacity at 0°C | 160 Ah |
| Round trip efficiency | 92 % |
Discharge
| Peak discharge current (10s) | 100 A |
| End of discharge voltage | 10 V |
Charge
| Charge voltage | 14.2 V to 14.4 V (absorption) |
| Float voltage | 13.5 V |
| Maximum charge current | 70 A |
Cycle life
| Cycle life at 80% DoD | 2500 cycles |
Operating conditions
| Operating temperature (discharge) | -20°C to +50°C |
| Operating temperature (charge) | 0°C to +45°C |
| Storage temperature | -40°C to +65°C |
| Humidity (non-condensing) | 95 % |
Physical
| Power connection / terminals | M8 threaded inserts |
| Dimensions (h×w×d) | 208 x 520 x 269 mm |
| Weight | 21 kg |
