Victron

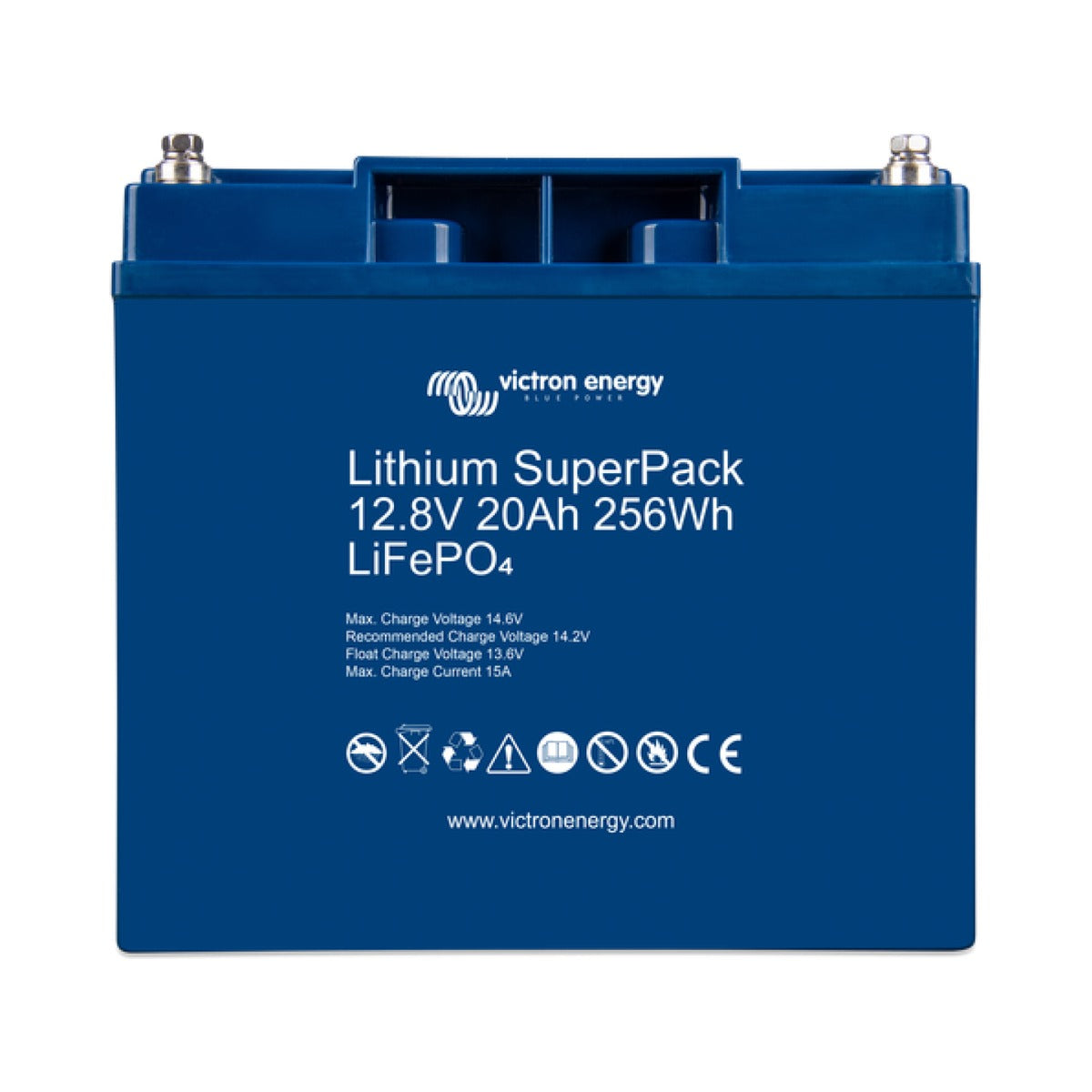

Victron Lithium SuperPack 12.8V/20Ah
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Lithium SuperPack 12.8V 20Ah is a compact LiFePO4 (lithium iron phosphate) battery with an integrated battery management system and a built-in safety switch, so no external BMS or contactor is needed to install it. The internal switch disconnects the battery automatically in the event of over-discharge, overcharge, or temperature outside the safe window, which makes it a straightforward drop-in upgrade from lead-acid.
Lithium chemistry tolerates partial states of charge without the sulfation that shortens lead-acid life, and round-trip efficiency of around 92 per cent keeps more of every charge available for use. At 3 kg this small pack suits compact house-power tasks aboard a boat, such as electronics, lighting, instruments, and other low-current auxiliary loads.
Batteries can be wired in parallel without limit to build a larger bank; series connection is not permitted. The pack carries an IP43 rating and must be mounted in an allowed orientation.
PRODUCT DETAILS
- LiFePO4 chemistry with an integrated BMS and built-in safety switch, no external BMS needed
- Internal switch disconnects on over-discharge, overcharge, or out-of-range temperature
- 256 Wh of usable energy in a compact 3 kg package
- Round-trip efficiency of approximately 92 per cent
- 2500 cycle life at 80 per cent depth of discharge
- Tolerates partial states of charge without sulfation, unlike lead-acid
- Unlimited parallel connection to expand capacity; series connection not allowed
- IP43 protection class
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Nominal voltage | 12.8 V |
| Nominal capacity | 20 Ah |
| Nominal energy | 256 Wh |
| Maximum continuous discharge current | 30 A |
| Protection class (IP) | IP43 |
Electrical
| Nominal capacity at 0°C | 16 Ah |
| Round trip efficiency | 92 % |
Discharge
| Peak discharge current (10s) | 80 A |
| End of discharge voltage | 10 V |
Charge
| Charge voltage | 14.2 V to 14.4 V (absorption) |
| Float voltage | 13.5 V |
| Maximum charge current | 15 A |
Cycle life
| Cycle life at 80% DoD | 2500 cycles |
Operating conditions
| Operating temperature (discharge) | -20°C to +50°C |
| Operating temperature (charge) | 0°C to +45°C |
| Storage temperature | -40°C to +65°C |
| Humidity (non-condensing) | 95 % |
Physical
| Power connection / terminals | M5 threaded inserts |
| Dimensions (h×w×d) | 167 x 181 x 77 mm |
| Weight | 3 kg |
