Victron

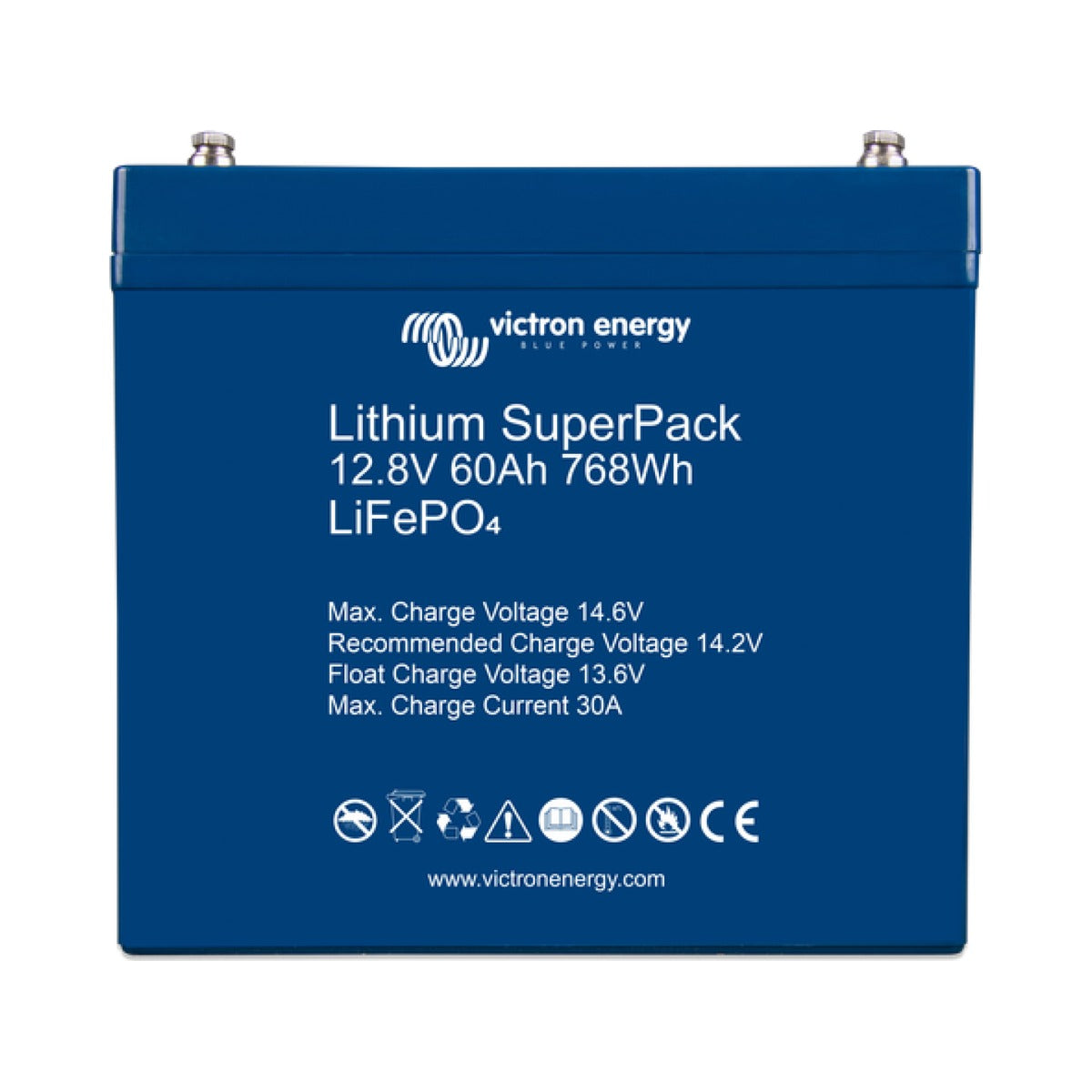

Victron Lithium SuperPack 12.8V/60Ah
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Lithium SuperPack 12.8V 60Ah is a LiFePO4 (lithium iron phosphate) battery with an integrated battery management system and a built-in safety switch, so it installs without an external BMS or contactor. The internal switch disconnects the battery automatically on over-discharge, overcharge, or temperature outside the safe window, which makes it a simple drop-in replacement for a lead-acid leisure battery.
Unlike lead-acid, lithium chemistry can sit at a partial state of charge without sulfation, and service life even improves slightly under partial charging. Round-trip efficiency of around 92 per cent means more of every charge is returned to your loads, which matters on boats relying on solar or limited engine charging. At 768 Wh and 7.5 kg, the 60Ah pack suits a modest house bank for lighting, electronics, pumps, and similar auxiliary loads.
Multiple batteries can be wired in parallel without limit to build a larger bank; series connection is not permitted. The pack is rated IP43 and must be installed in an allowed orientation.
PRODUCT DETAILS
- LiFePO4 chemistry with an integrated BMS and built-in safety switch, no external BMS needed
- Internal switch disconnects on over-discharge, overcharge, or out-of-range temperature
- 768 Wh of usable energy at 7.5 kg
- Round-trip efficiency of approximately 92 per cent
- 2500 cycle life at 80 per cent depth of discharge
- Tolerates partial states of charge without sulfation, unlike lead-acid
- 30 A maximum continuous charge and discharge current, 80 A peak discharge for 10 seconds
- Unlimited parallel connection; series connection not allowed; IP43 rated
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Nominal voltage | 12.8 V |
| Nominal capacity | 60 Ah |
| Nominal energy | 768 Wh |
| Maximum continuous discharge current | 30 A |
| Protection class (IP) | IP43 |
Electrical
| Nominal capacity at 0°C | 48 Ah |
| Round trip efficiency | 92 % |
Discharge
| Peak discharge current (10s) | 80 A |
| End of discharge voltage | 10 V |
Charge
| Charge voltage | 14.2 V to 14.4 V (absorption) |
| Float voltage | 13.5 V |
| Maximum charge current | 30 A |
Cycle life
| Cycle life at 80% DoD | 2500 cycles |
Operating conditions
| Operating temperature (discharge) | -20°C to +50°C |
| Operating temperature (charge) | 0°C to +45°C |
| Storage temperature | -40°C to +65°C |
| Humidity (non-condensing) | 95 % |
Physical
| Power connection / terminals | M6 threaded inserts |
| Dimensions (h×w×d) | 213 x 229 x 138 mm |
| Weight | 7.5 kg |
