Victron

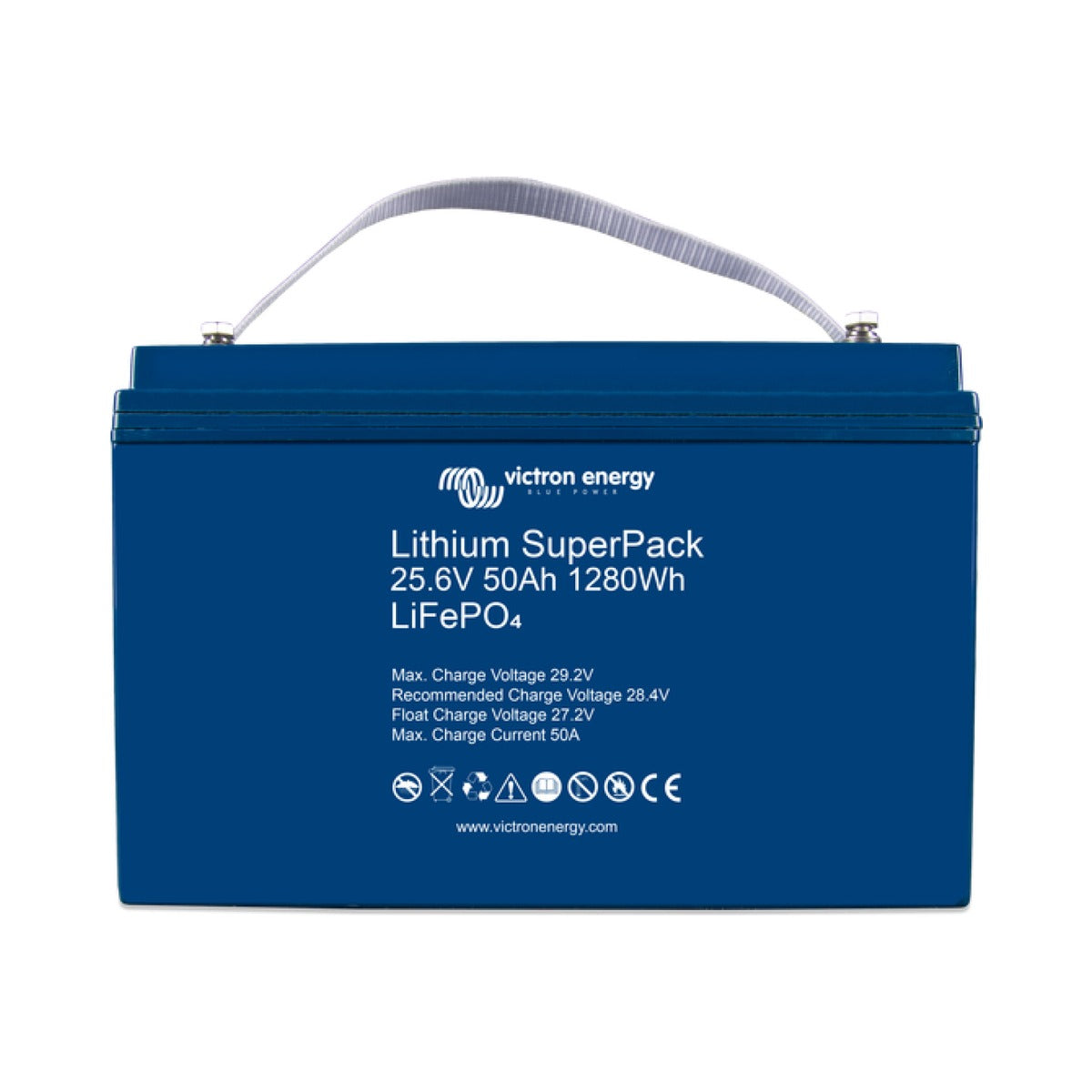

Victron Lithium SuperPack 25.6V/50Ah
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Lithium SuperPack 25.6V 50Ah is the 24 V member of the standard SuperPack range, a LiFePO4 (lithium iron phosphate) battery with an integrated battery management system and a built-in safety switch. The internal BMS and switch mean no external battery management is needed: the switch disconnects the battery automatically on over-discharge, overcharge, or out-of-range temperature, simplifying a move from lead-acid on a 24 V system.
At a nominal 25.6 V and 50 Ah it stores 1280 Wh, suiting 24 V house banks for windlasses, thrusters, larger inverters, and domestic loads on bigger vessels. Lithium chemistry can rest at a partial state of charge without sulfation, and round-trip efficiency of around 92 per cent improves usable yield from solar or limited engine charging. The pack weighs 14 kg.
Batteries can be wired in parallel without limit to build a larger 24 V bank; series connection is not permitted. The pack is rated IP43 and must be installed in an allowed orientation.
PRODUCT DETAILS
- Nominal 25.6 V for 24 V systems, with an integrated BMS and built-in safety switch
- LiFePO4 chemistry; no external BMS or contactor needed to install
- 1280 Wh of usable energy at 14 kg
- Round-trip efficiency of approximately 92 per cent
- 2500 cycle life at 80 per cent depth of discharge
- 50 A maximum continuous charge and discharge current, 100 A peak discharge for 10 seconds
- Unlimited parallel connection; series connection not allowed
- IP43 protection class
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Nominal voltage | 25.6 V |
| Nominal capacity | 50 Ah |
| Nominal energy | 1280 Wh |
| Maximum continuous discharge current | 50 A |
| Protection class (IP) | IP43 |
Electrical
| Nominal capacity at 0°C | 40 Ah |
| Round trip efficiency | 92 % |
Discharge
| Peak discharge current (10s) | 100 A |
| End of discharge voltage | 20 V |
Charge
| Charge voltage | 28.4 V to 28.8 V (absorption) |
| Float voltage | 27 V |
| Maximum charge current | 50 A |
Cycle life
| Cycle life at 80% DoD | 2500 cycles |
Operating conditions
| Operating temperature (discharge) | -20°C to +50°C |
| Operating temperature (charge) | 0°C to +45°C |
| Storage temperature | -40°C to +65°C |
| Humidity (non-condensing) | 95 % |
Physical
| Power connection / terminals | M8 threaded inserts |
| Dimensions (h×w×d) | 220 x 330 x 172 mm |
| Weight | 14 kg |
