Discontinued
This product has been discontinued by Garmin and is no longer available to buy.
Garmin

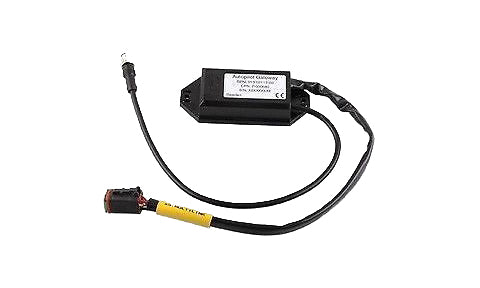

Yamaha Autopilot Gateway
010-11349-01
The Garmin Yamaha Autopilot Gateway connects a Garmin autopilot to the steering system on Yamaha Helm Master equipped boats, enabling autopilot functions such as heading hold and route following. It ties into the autopilot data bus and is powered from a 9 to 24 Vdc supply.
Description
The Garmin Yamaha Autopilot Gateway is the gateway that allows a Garmin steer-by-wire autopilot to control the boat steering on Yamaha Helm Master equipped vessels. It connects to the boat steering system on one side and to the Garmin autopilot data bus on the other using the included T-connectors, passing steering commands so the autopilot can hold a heading and follow routes. The gateway is powered from an included cable connected to a 9 to 24 Vdc supply, which must be present for the autopilot to communicate with the gateway. It is installed as a component of a Garmin autopilot system rather than used on its own. Note that this is the Yamaha gateway (part 010-11349-01) and is a different product from the Volvo gateway (part 010-11349-00).
PRODUCT DETAILS
- Autopilot gateway that connects a Garmin autopilot to the steering on Yamaha-equipped boats
- Enables Garmin autopilot heading hold and route following on Yamaha Helm Master vessels
- Ties into the Garmin autopilot data bus using included T-connectors
- Powered from an included cable on a 9 to 24 Vdc supply
- Part of a Garmin steer-by-wire autopilot installation
- Autopilot gateway
- Power cable
- T-connectors
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Gateway
| Function | Autopilot gateway that connects a Garmin autopilot to the boat steering system on Yamaha-equipped vessels |
Connectivity
| Interfaces | Connects to the boat (Yamaha) steering system, and to the Garmin autopilot via the gateway data bus using included T-connectors |
| Compatible systems | Yamaha Helm Master equipped boats |
Electrical
| Power input | Included power cable connects to a 9 to 24 Vdc power source |
No videos available for this product.
What does the Yamaha Autopilot Gateway do?
It is an autopilot gateway that connects a Garmin autopilot to the steering system on Yamaha Helm Master equipped boats, enabling autopilot functions such as heading hold and route following.
Which boats is it for?
It is intended for Yamaha Helm Master equipped vessels, where it links a Garmin steer-by-wire autopilot to the boat steering.
How is the gateway powered?
The included power cable must be connected to a 9 to 24 Vdc power source for the autopilot to communicate with the gateway.
Is this the same as the Volvo gateway?
No. This is the Yamaha gateway (part 010-11349-01) for Yamaha Helm Master boats. The Volvo gateway is a separate product (part 010-11349-00) for Volvo Penta EVC steering.
