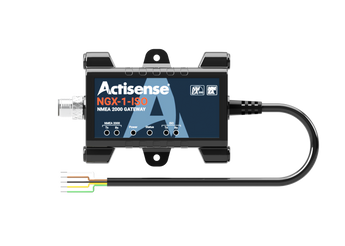

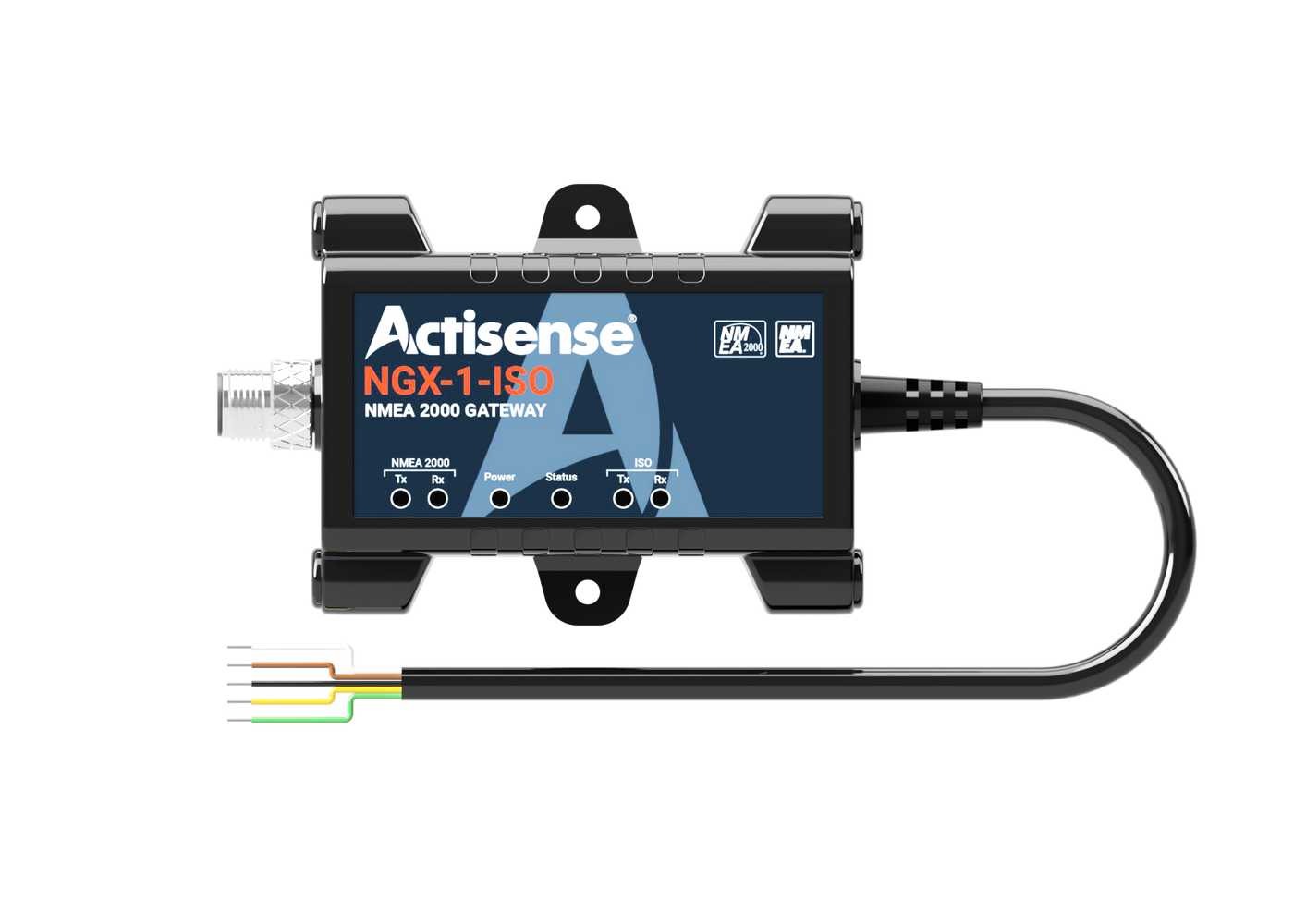

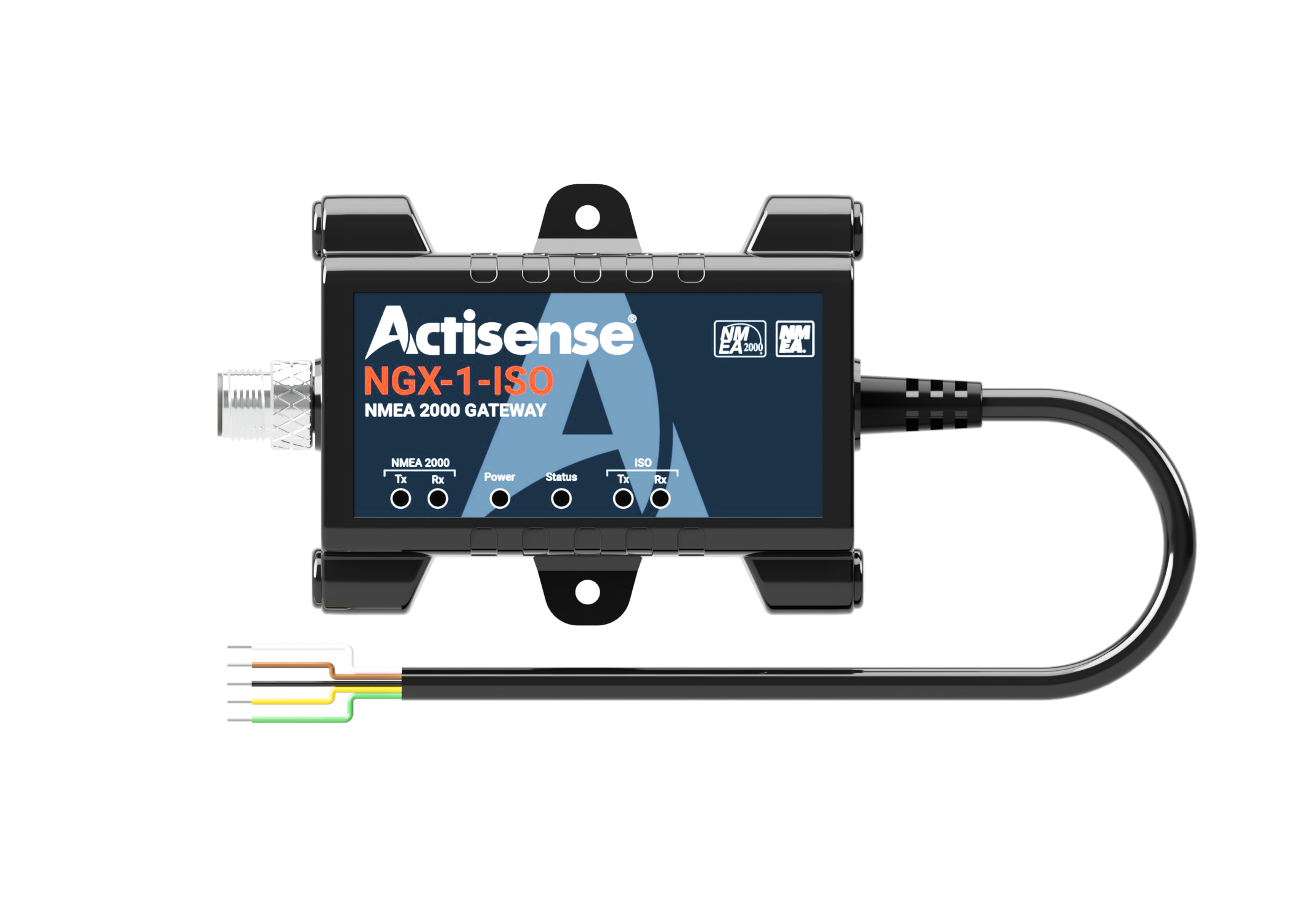

Actisense NMEA 0183 to NMEA 2000 Gateway, with PC interface (ISO connection)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The NGX-1 is Actisense's intelligent dual gateway, combining the capability of the earlier NGT-1 and NGW-1 into one flexible, cost-effective device. Configure it as an NMEA 2000 to PC interface or as a bi-directional NMEA 0183 to NMEA 2000 conversion gateway, so a single unit covers both jobs.
This ISO version terminates in a bare-wire, open-ended cable for direct connection to an NMEA 0183 device or a serial port / DB-9. Its opto-isolated input and ISO-Drive output safely interface with RS232 or RS422 signals, while data transfers at up to 230,400 baud with support for fast heading at 10Hz. Used as a PC interface, the NGX-1 acts as a rule-enforcing firewall between the computer and the network, giving full control of the data that passes to and from the bus.
Housed in a rugged IP67 polycarbonate case and fully NMEA 2000 certified, the NGX-1 works with the free Actisense NMEA Reader diagnostic software and is configured through Actisense Toolkit. It carries the largest conversion library of any Actisense gateway, including AIS.
PRODUCT DETAILS
- Dual-function gateway: NMEA 2000 to PC interface or bi-directional NMEA 0183 to NMEA 2000 converter
- Largest conversion library of any Actisense gateway, including AIS conversions
- Opto-isolated input and ISO-Drive output safely interface with RS232 or RS422
- Acts as a rule-enforcing firewall between the PC and the NMEA 2000 bus
- Data transfer up to 230,400 baud with support for fast heading at 10Hz
- Free NMEA Reader diagnostics and full configuration via Actisense Toolkit
- Rugged IP67-rated case for reliable operation in harsh marine environments
- NGX-1-ISO gateway with integrated 0.75m ISO cable (bare, stripped and tinned wires)
- Quick-start and safety instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Power
| Supply Voltage (NMEA 2000 Port) | 9 to 30V DC |
| Supply Current (NMEA 2000 Port) | 62mA @ 9V DC |
| Load Equivalent Number (LEN) | 2 |
NMEA 2000 Port
| Speed / Baud Rate | 250kbps |
| Connectivity | M12 Male (A coded) |
ISO / Serial Port
| Compatibility | Full NMEA 0183, RS232 & RS422 compatibility. RS485 Listener compatible |
| Speed / Baud Rate | 4800 to 230400 Baud |
| Connectivity | 5mm stripped and tinned wire |
| Cable Length | 0.75m |
Isolation
| NMEA 2000 Port to ISO Port | Uses ISO-Drive, Hi-Pot tested to 1000V |
Mechanical
| Housing Material Body | Flame retardant Polycarbonate |
| Housing Material End Caps | Flame retardant PBT |
| Weight | 112g |
| Dimensions | 133 x 138 x 30mm |
Environmental & Approvals
| NMEA 2000 | NMEA 2000 Certified |
| NMEA 0183 | Meets IEC 61162-1 & 61162-2 requirements |
| Environmental Protection | IP67 |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -30°C to +70°C |
| Recommended Humidity | 0 to 93% RH @ 40°C |
| Guarantee | 3 years, extended to 5 years upon registration |
