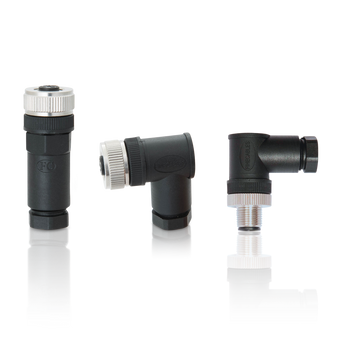

Actisense Micro field fit connector, right-angle female
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Actisense A2K-FFC-RF is a field-fit connector in the right-angle, female configuration, used to terminate bulk Actisense Lite cable on an NMEA 2000 network. The right-angle body lets the cable leave the connector at 90 degrees, which is useful for tidy routing and for fitting behind panels or around tight bends. Because the connector is assembled on site, cable can be cut to any length and the network fully customised, and an internal gland tightens around the cable as the connector is screwed together to keep the joint watertight.
The connector uses gold-plated brass contacts and a PA and glass-filled body with a stainless steel screw and TPU insert, and accepts 6 to 8 mm cable through a PG9 gland. It is rated to IP67 in the locked condition, meets IEC 61076-2-101, and is NMEA 2000 approved and RoHS compliant. It carries the standard 5 year Actisense guarantee.
PRODUCT DETAILS
- Right-angle, female field-fit connector for bulk NMEA 2000 Lite cable
- Right-angle body routes cable neatly around tight bends and behind panels
- Assembled on site so cable can be cut to any length with no excess
- Internal gland tightens onto the cable for a watertight joint
- IP67 rated when locked, NMEA 2000 approved and IEC 61076-2-101 compliant
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Connections
| Type | Right-angle female field-fit connector (NMEA 2000 Micro) |
Electrical
| Rated current | 4 A |
| Rated voltage | 60 V DC |
Mechanical
| Connector contact | Brass, gold plated |
| Wire gauge | 22 AWG / 0.34 mm |
| Mating thread | M12 |
| Sealing gland size | PG9 / 6 to 8 mm cable |
| Connector screw | Stainless steel |
| Connector body | PA+GF, black |
| Weight | 27.8 g |
Environmental & Approvals
| Protection | IP67 (in locked condition) |
| Ambient temperature | -25°C to +90°C |
| Certification | NMEA 2000 Approved, RoHS compliant, IEC 61076-2-101 compliant |
General
| Guarantee | 5 years |
