Actisense
Actisense Micro field fit connector, straight - female
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

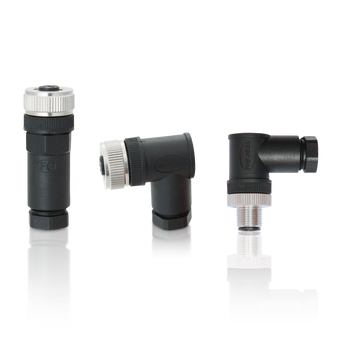

The Actisense A2K-FFC-SF is a field-fit connector in the straight, female configuration, used to terminate bulk Actisense Lite cable on an NMEA 2000 network. Because the connector is assembled on site, cables can be cut to any length, which removes excess cable and lets the network be fully customised to the vessel. As the two halves are screwed together an internal gland tightens around the cable to maintain watertight integrity.
The connector uses gold-plated brass contacts and a PA and glass-filled body with a stainless steel screw and TPU insert, and accepts 6 to 8 mm cable through a PG9 gland. It is rated to IP67 in the locked condition, meets IEC 61076-2-101, and is NMEA 2000 approved and RoHS compliant. It carries the standard 5 year Actisense guarantee.
PRODUCT DETAILS
- Straight, female field-fit connector for bulk NMEA 2000 Lite cable
- Assembled on site so cable can be cut to any length with no excess
- Internal gland tightens onto the cable for a watertight joint
- Gold-plated brass contacts with a PG9 gland for 6 to 8 mm cable
- IP67 rated when locked, NMEA 2000 approved and IEC 61076-2-101 compliant
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Connections
| Type | Straight female field-fit connector (NMEA 2000 Micro) |
Electrical
| Rated current | 4 A |
| Rated voltage | 60 V DC |
Mechanical
| Connector contact | Brass, gold plated |
| Wire gauge | 22 AWG / 0.34 mm |
| Mating thread | M12 |
| Sealing gland size | PG9 / 6 to 8 mm cable |
| Connector screw | Stainless steel |
| Connector body | PA+GF, black |
| Weight | 26.5 g |
Environmental & Approvals
| Protection | IP67 (in locked condition) |
| Ambient temperature | -25°C to +90°C |
| Certification | NMEA 2000 Approved, RoHS compliant, IEC 61076-2-101 compliant |
General
| Guarantee | 5 years |
