Actisense Micro gender changer (male to male) 0.25 metre, UL certified cable

Actisense

Actisense Micro gender changer (male to male) 0.25 metre, UL certified cable

£31.72
Tax included. Shipping calculated at checkout.
A2K-GCM-0M25

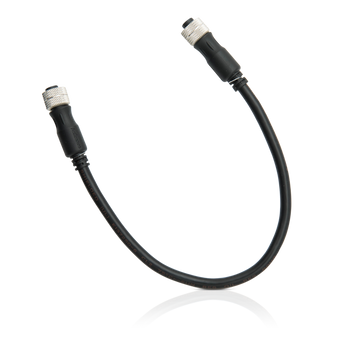

A 0.25 metre NMEA 2000 Micro gender changer with a male connector at both ends, used to join two female connectors together on an NMEA 2000 backbone. Made with Actisense designed connectors and UL certified cable for a secure, IP67 rated connection.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Actisense A2K-GCM-0M25 is a 0.25 metre NMEA 2000 Micro gender changer with a male connector at both ends. It solves a common installation problem: joining two cables or devices that both present the same gender of connector on an NMEA 2000 backbone, where a straight connection is impossible. This male to male version mates two female connectors together.

It is made with Actisense designed connectors and 0.25 metre UL certified cable, giving an easy and secure connection that matches the quality of the rest of the range. The moulded M12 connectors give an IP67 rated seal once mated. For longer joining or drop cables, Actisense trunk and drop cable assemblies are available in a range of lengths.

PRODUCT DETAILS

  • 0.25 metre NMEA 2000 Micro gender changer, male to male
  • Joins two female connectors that could not otherwise be connected directly
  • Actisense designed connectors with genuine UL certified cable (E137250, UL1277)
  • IP67 rated M12 connections for a secure, weatherproof joint when mated
  • Rated 3A at 60V DC, NMEA 2000 approved and RoHS compliant

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

TypeNMEA 2000 Micro gender changer
GenderMale to male
Length0.25 m
CableActisense UL certified NMEA 2000 Micro cable

Electrical

Rated Current3A
Rated Voltage60V DC

Mechanical

Mating ThreadM12, standard A-polarisation
Jacket0.8 mm nominal PVC, black, 6.85 mm outer diameter
Weight50 g

Approvals & Environmental

ProtectionIP67 (when mated)
Operating Temperature-25°C to +70°C
Storage Temperature-40°C to +85°C
CertificationNMEA 2000 approved, RoHS compliant, UL certified (E137250, UL1277)
