Actisense NMEA 2000 Network Block, 6 micro female drops, power feed and diagnostic features
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

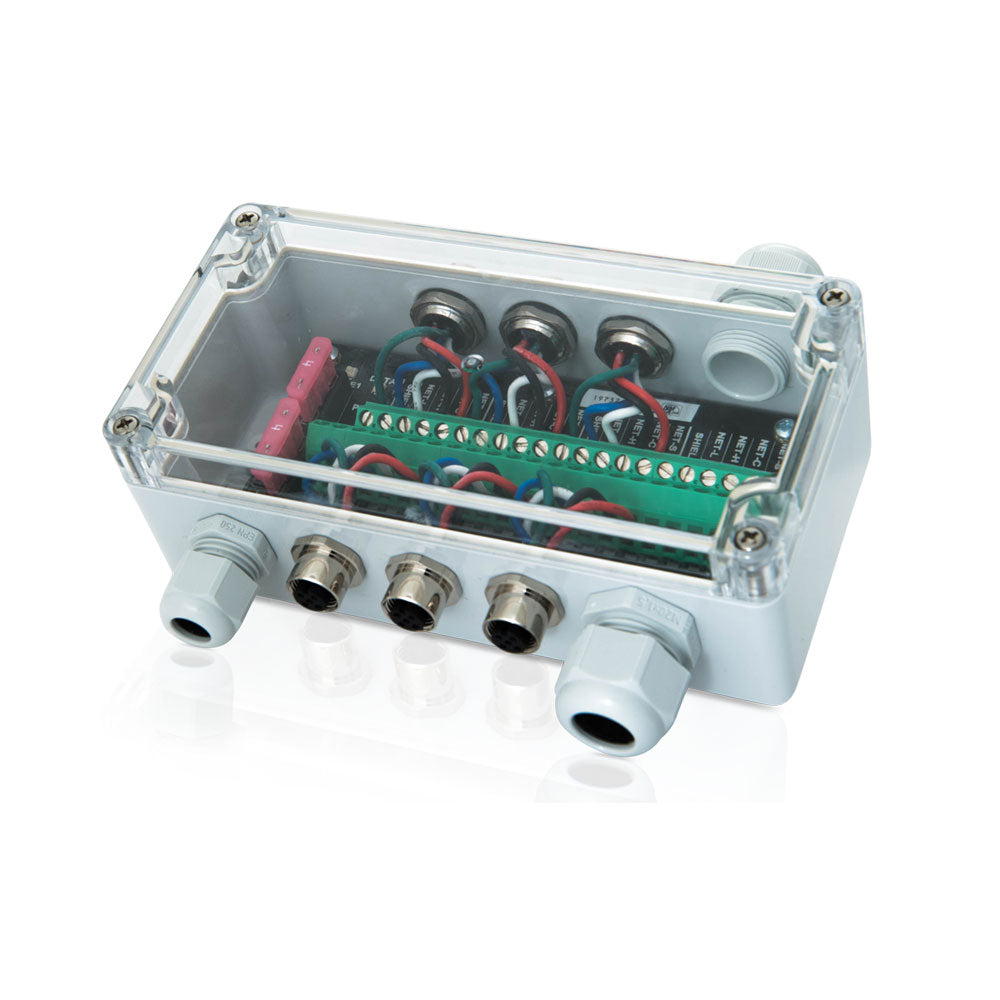

The Quick Network Block QNB-1-PMW gives NMEA 2000 backbones fault-free, fused connections in a single sealed enclosure, replacing a string of individual tee-pieces with one IP66 block offering six drops. It is perfectly suited to areas of high instrument density where several sensors and displays sit close together. This version is fitted with six standard NMEA 2000 M12 (micro-fit) female connectors for true plug-and-play installation, with minimal wiring required, while the backbone glands at the top still allow any cable, including Raymarine SeaTalk NG, to be stripped and wired in to create hybrid networks without adaptor cables.
The QNB-1-PMW powers the left and right sides of the backbone independently, each protected by its own clearly visible ATO fuse. Feeding each half separately reduces voltage drop and means a blown fuse on one side leaves the other half running, adding useful redundancy. LED indicators report power, reversed polarity, fuse status and the presence of data on the bus, so an installer can diagnose a network at a glance. No software or setup is required.
PRODUCT DETAILS
- Six pre-wired M12 (micro-fit) female drops for plug-and-play connection
- One unit provides six NMEA 2000 drop connections
- Power feed split left and right, each protected by its own ATO fuse
- Diagnostic LEDs for power, polarity, fuse status and data detection
- IP66 sealed polycarbonate housing suits harsh marine environments
- Backbone glands allow Raymarine SeaTalk NG to be wired in without adaptors
- No software or configuration required
- QNB-1-PMW Quick Network Block (M12 female connector version)
- 2 x 4A ATO blade fuses (fitted)
- Installation manual
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Supply Voltage | 10-35V DC |
| Supply Current (12/24V, no load) | 10mA |
| Micro Cable Fuse Protection | 8A (2 x 4A ATO blade fuses) |
| Mini Cable Fuse Protection | 16A |
| Power Polarity LED | Red = Incorrect, Green = Correct |
NMEA 2000 Port
| Drop Connections | 6 x M12 Female (A-Coded) connector |
| Data LED | Flashes when data is detected on network |
Mechanical
| Housing Material | Polycarbonate, Light Grey |
| Lid Material | Polycarbonate, Clear |
| Gasket Material | EPDM Synthetic Rubber |
| M20 Gland Clamping Range | 6 - 12 mm |
| Dimensions | 160mm (L) x 132.4mm (W) x 80mm (H) |
| Weight (PMW variant) | 440g |
Environmental & Approvals
| Operating Temperature | -20 to +55 °C |
| Storage Temperature | -30 to +70 °C |
| Humidity | 93% @ 40°C |
| IP Rating | IP66 |
| Certification | NMEA 2000 Approved |
| Guarantee | 3 years (5 years if registered) |
