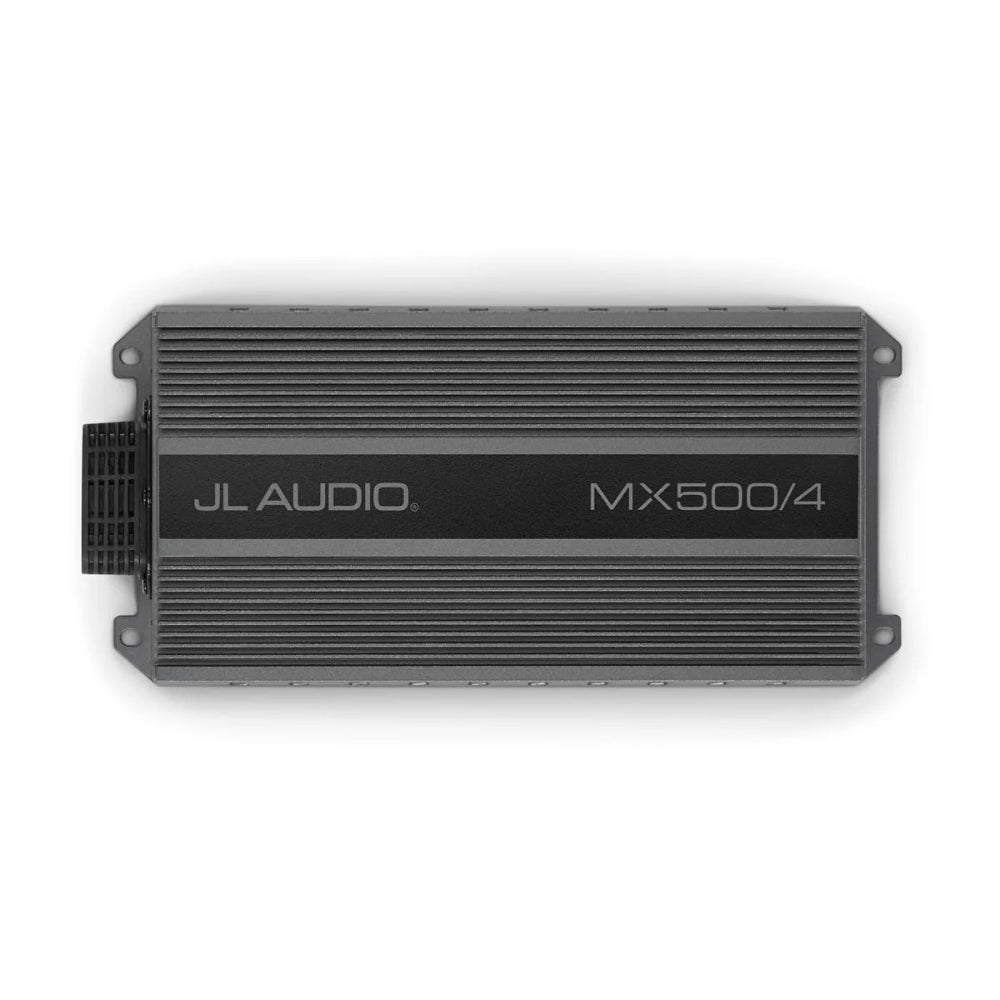

JL Audio MX Marine and PowerSports Amplifier - 4 Channel - 500W
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The JL Audio MX 4-channel amplifier is a compact, high-speed Class D design built for marine and powersports use, delivering 70 watts RMS x 4 at 4 ohms, 125 watts RMS x 4 at 2 ohms, or 250 watts RMS x 2 when bridged. It is fully bridgeable for use as a 3-channel or 2-channel amplifier, giving plenty of configuration options in a small footprint.
Housed in a cast aluminium chassis with an IPX7 water-resistance rating, gasketed control cover and stainless steel hardware, it is engineered to survive the elements. Independent front and rear crossovers and a dual-range input section round out a very versatile amplifier.
PRODUCT DETAILS
- 4-channel full-range Class D amplifier, 500 W total RMS
- 70 W RMS x 4 at 4 ohms, 125 W x 4 at 2 ohms, 250 W x 2 bridged
- IPX7-rated cast aluminium chassis for marine and powersports use
- Independent front and rear selectable crossovers
- Dual-range input accepts line-level to speaker-level signals
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Audio
| Configuration | 4-channel full-range |
| RMS power at 4 ohm | 70 W x 4 |
| RMS power at 2 ohm | 125 W x 4 |
| Bridged power at 4 ohm | 250 W x 2 |
| Total RMS power | 500 W |
| Class | Class D (NexD high-speed switching) |
| Crossover | Independent selectable HP/LP/full-range, front and rear |
General
| Type | Marine and powersports amplifier |
| Rating | IPX7 water-resistant, cast aluminium chassis |
| Input | Dual-range, line-level to speaker-level |
