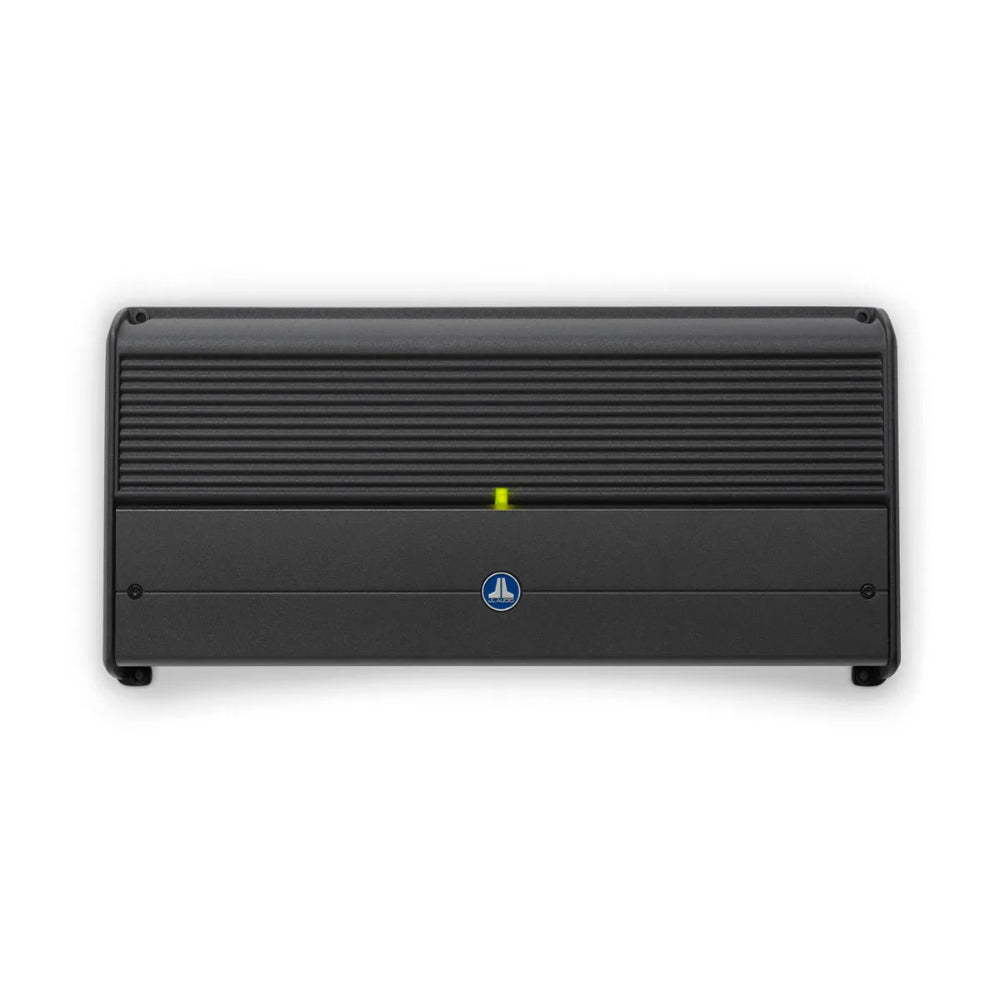

JL Audio XDM Car and Marine Amplifier - 5 Channel - 1000W - 12V
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The JL Audio XDM1000/5 is a compact five-channel amplifier for car and marine systems, ideal for driving a complete subwoofer-plus-four-speaker install from one chassis. Its NexD high-speed switching permits full-bandwidth Class D operation with very low distortion and high efficiency, and marine-grade materials with a dual-mode input filter deliver noise-free performance afloat.
The four full-range channels are rated at 75 W RMS each into 4 ohms while the subwoofer channel delivers 600 W into 2 ohms, for 1000 W total. It comfortably powers two pairs of component speakers plus a subwoofer.
PRODUCT DETAILS
- 5-channel Class D amplifier for a full sub-plus-4-speaker system
- 75 W x 4 at 4 ohms plus 600 W subwoofer at 2 ohms
- 1000 W total RMS power
- NexD switching for low distortion and high efficiency
- Marine-grade build with dual-mode input filter
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Audio
| Configuration | 5-channel (4 full-range + 1 subwoofer) |
| RMS power @ 4 ohms | 75 W x 4 + 400 W x 1 |
| RMS power @ 2 ohms | 100 W x 4 + 600 W x 1 |
| Bridged power @ 4 ohms | 200 W x 2 + 600 W x 1 |
| Total RMS power | 1000 W |
| Class | D (NexD) |
General
| Type | Car and marine amplifier |
| Protection | Marine-grade materials, dual-mode input filter |
