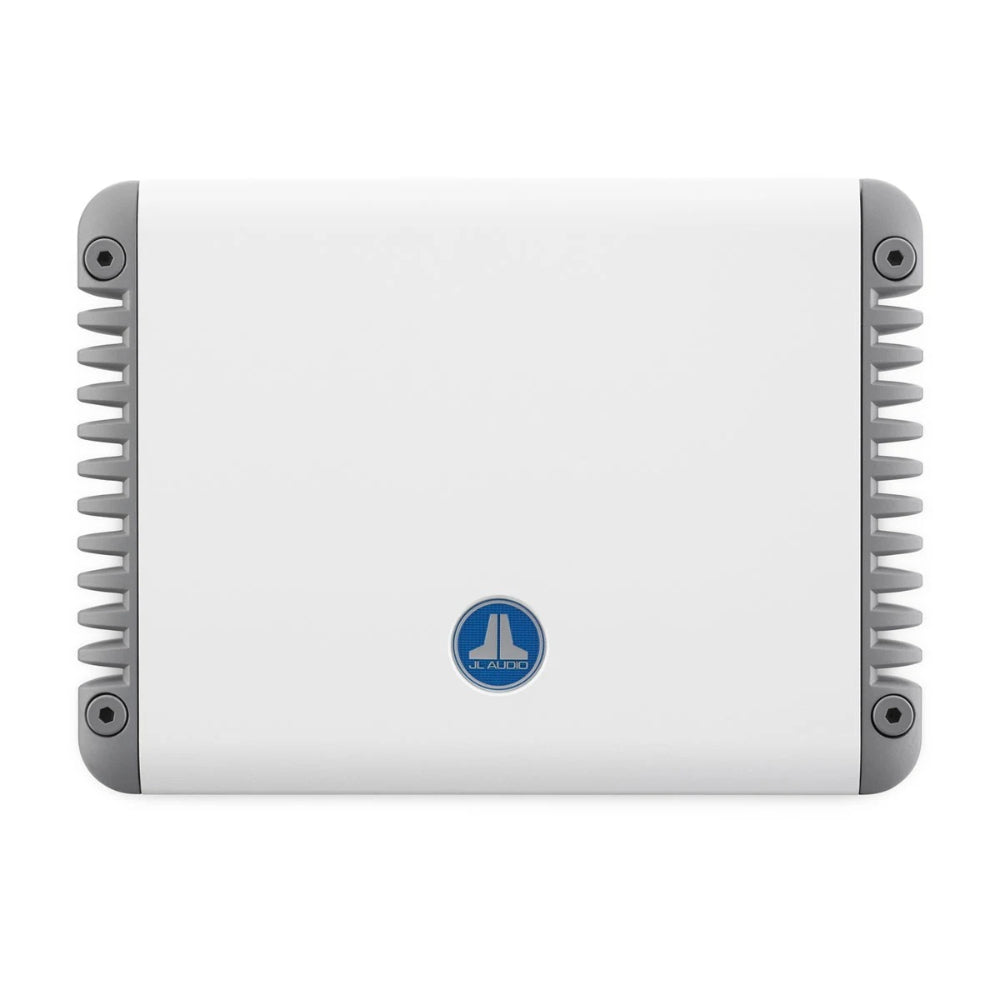

JL Audio® MHD Marine Amplifier, 5 Channel Full-Range Marine System Amplifier (900 W for 24 V Systems)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The JL Audio MHD900/5 (24 V) is a compact 5-channel Class D marine system amplifier configured for 24-volt electrical systems found on many larger vessels. It delivers 100 watts to each of four full-range channels plus 500 watts to a dedicated subwoofer channel, with R.I.P.S. (Rail Independent Power Supply) technology maintaining power across a wide range of load impedances down to 1.5 ohms.
Built for the marine environment, it uses white and grey powder-coat finishes, a gasketed control cover and stainless steel hardware. Total output is 900 watts RMS. Designed for 24 V systems.
PRODUCT DETAILS
- 5-channel Class D marine system amplifier for 24 V systems
- 100 W x 4 plus 500 W x 1 at 4 ohms, 900 W total
- R.I.P.S. power supply, stable to 1.5 ohms
- Gasketed control cover and stainless steel hardware
- Compact chassis for a full system from one amplifier
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Audio
| Configuration | 5-channel full-range system amplifier |
| Power @ 4 ohm | 100 W x 4 + 500 W x 1 |
| Power @ 2 ohm | 75 W x 4 + 500 W x 1 |
| Bridged power @ 4 ohm | 150 W x 2 |
| Total power | 900 W RMS |
| Class | D |
| Minimum impedance | 1.5 ohm stable |
General
| Technology | R.I.P.S. Rail Independent Power Supply |
| Protection | Gasketed control cover, stainless steel hardware |
| System voltage | 24 V |
