JL Audio MX Marine and PowerSports Amplifier - 3 Channel - 600W
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

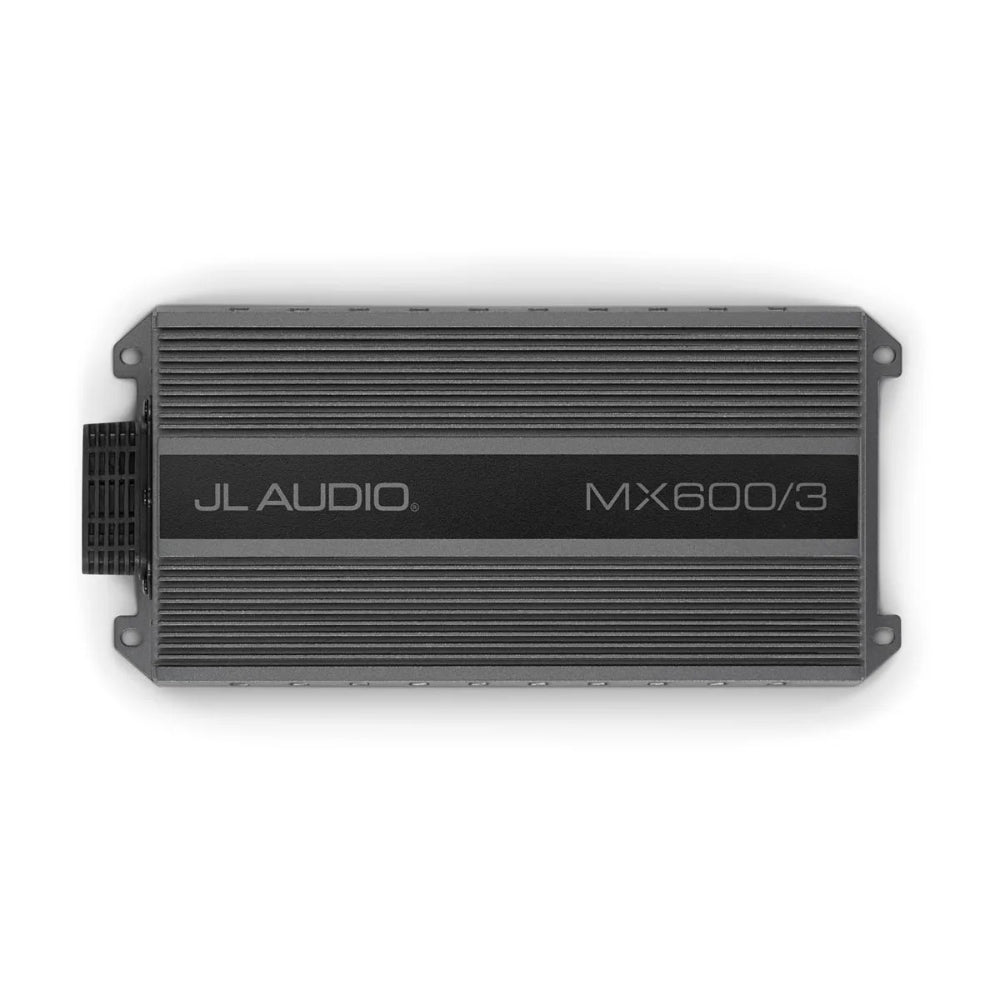

The JL Audio MX600/3 is a three-channel amplifier that powers a full speaker-and-subwoofer system from a single compact chassis, ideal for marine and powersports installations. Its high-speed NexD Class D design delivers clean power efficiently, with a 12 dB/octave high-pass crossover on the stereo channels and a dedicated 24 dB/octave low-pass crossover for the subwoofer channel.
The stereo channels are rated at 75 W RMS each into 4 ohms while the subwoofer channel delivers 400 W into 2 ohms, for 600 W total. A cast-aluminium housing with IPX7 water resistance suits open-cockpit use.
PRODUCT DETAILS
- 3-channel Class D amplifier for a full speaker-plus-sub system
- 75 W x 2 at 4 ohms plus 400 W x 1 subwoofer at 2 ohms
- 600 W total RMS power
- Dedicated high-pass and 24 dB/oct low-pass crossovers
- Cast-aluminium housing with IPX7 water resistance
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Audio
| Configuration | 3-channel (2 full-range + 1 subwoofer) |
| RMS power @ 4 ohms | 75 W x 2 + 250 W x 1 |
| RMS power @ 2 ohms | 100 W x 2 + 400 W x 1 |
| Total RMS power | 600 W |
| Class | D (NexD) |
| Crossover | 12 dB/oct high-pass; 24 dB/oct low-pass (sub) |
General
| Type | Marine and powersports amplifier |
| Protection | IPX7 water resistant, cast-aluminium housing |
