Garmin

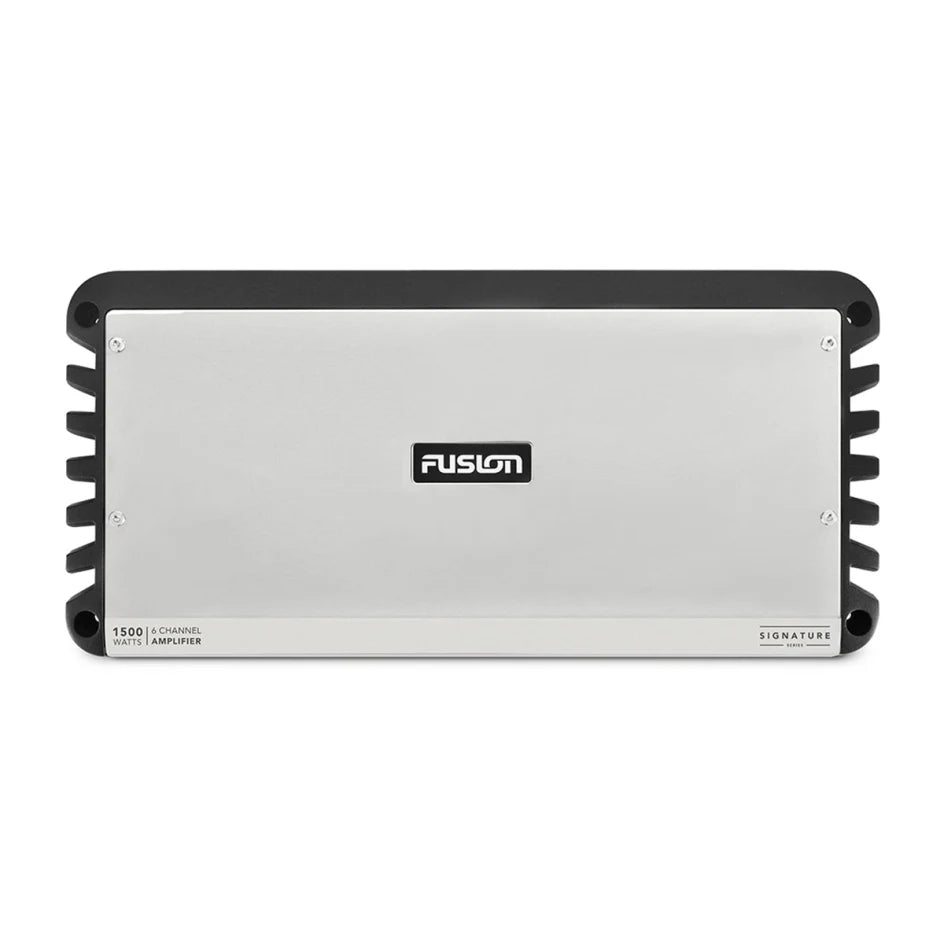

Fusion Signature Series 6 Channel 1500-Watt Marine Amplifier
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
Purpose-built for the marine environment, the Fusion Signature Series amplifier features some of the most impressive environmental protection available, delivering a signature performance out on the water. This 6-channel Class-D amplifier drives up to six speakers with 100 W RMS per channel at 4 ohms, and can be bridged to three channels, giving a Signature Series system plenty of power across multiple audio zones.
Efficient Class-D circuitry keeps current draw and heat low while a conformal-coated board and rugged construction resist the salt, humidity and vibration of the marine environment. User-adjustable input sensitivity and variable crossovers let you tune each zone precisely, so every seating area on the boat sounds balanced.
PRODUCT DETAILS
- Six-channel Class-D design delivering 100 W RMS per channel at 4 ohms, 1500 W peak
- Bridgeable to three 280 W RMS channels for extra power or larger speakers
- Ideal for multi-zone systems, powering several seating areas from one amplifier
- User-adjustable input sensitivity for a clean match to any Fusion marine stereo
- Marinised, conformal-coated build resists salt, humidity and vibration on board
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Amplifier
| Channels | 6 |
| Power per channel (RMS) at 4 Ω | 100 W x 6 @ 14.4 V, <1% THD |
| Power per channel (RMS) at 2 Ω | 140 W x 6 @ 14.4 V, <1% THD |
| Power bridged (RMS) at 4 Ω | 280 W x 3 |
| Total power (peak) | 1500 W |
| Class | Class-D |
| Frequency response | 10 Hz - 40 kHz |
| THD | <1% at rated power |
| Crossover | High-pass and low-pass 32 Hz - 320 Hz |
| Input sensitivity | 0.3 V - 8 V RMS, user adjustable |
| Input impedance | 7 kΩ nominal |
Electrical
| Supply voltage | 12 V DC (10.8 V - 16 V) |
| Fuse rating | 3 x 40 A ATC blade type |
Installation
| Dimensions (W x D x H) | 420 x 210 x 57 mm |
General
| Warranty | 2 years |
